TOP Server Red Prairie Transactional OPC Driver
Versatile Communication Interface for TCP/IP Transactions between TOP Servers or with Red Prairie Systems
The TOP Server® Red Prairie Driver provides a communication interface to Red Prairie systems with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and business logistics systems powered by software from Red Prairie systems that provide a TCP/IP interface and a means of sending and receiving data transactions.
- Function as a sender of solicited messages/requests to the Red Prairie system
- Simultaneously be setup to receive data as unsolicited messages coming from the Red Prairie system.
- User can define a set of tags, group them as a "transaction" and then arrange to have that transaction sent by writing to a special master or control tag.
- The user can define any number of tags of mixed data types and lengths in the transaction.
NOTE: Because this software can send messages AND receive unsolicited messages simultaneously, this driver can also be used to achieve a transactional based means of communicating between two or more TOP Servers running in a plant. No Red Prairie system is required to take advantage of this messaging capability.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite:
TOP Server Red Prairie Driver
$1993
$
Part # 41233168-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
FEATURES & RESOURCES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
Red Prairie Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 8192
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
- Supports Simultaneous Solicited and Unsolicited Communications
- Can be used as transactional based means of communicating between two or more TOP Server machines
Standard Red Prairie Features Include

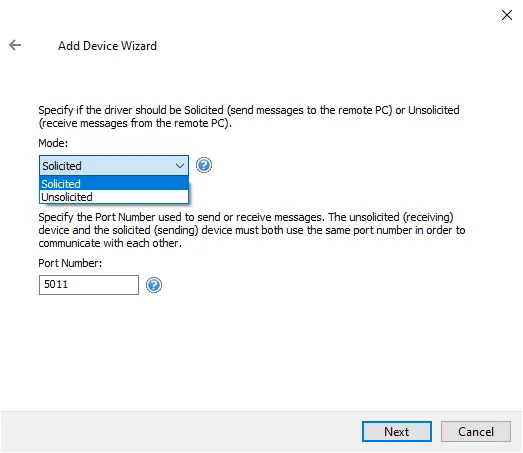

- Supports Solicited and Unsolicited Messaging Modes
- Supports simultaneous (two-way) communications
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
Red Prairie Advanced Features Include
- Can be used as transactional based means of communicating between two or more TOP Server machines
- Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
- User-selectable socket connection termination on device response timeout
- Specify a Network Interface Card at the channel level (Details)
Supported Devices Include (Don't See Your Device Listed? Contact Us)
- Red Prairie Logistics Systems
Supported Protocols / Networks
- TCP/IP Ethernet
TOP Server How-To Videos and Application Notes
To insure you get the most from your investment in TOP Server®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
