Reliable Serial Connectivity for Siemens S7-200 Controllers via PPI and PPM Protocols
This driver is only available as part of the following TOP Server driver suites:
Max Channels
Devices per Channel
Station Range
Baud Rates

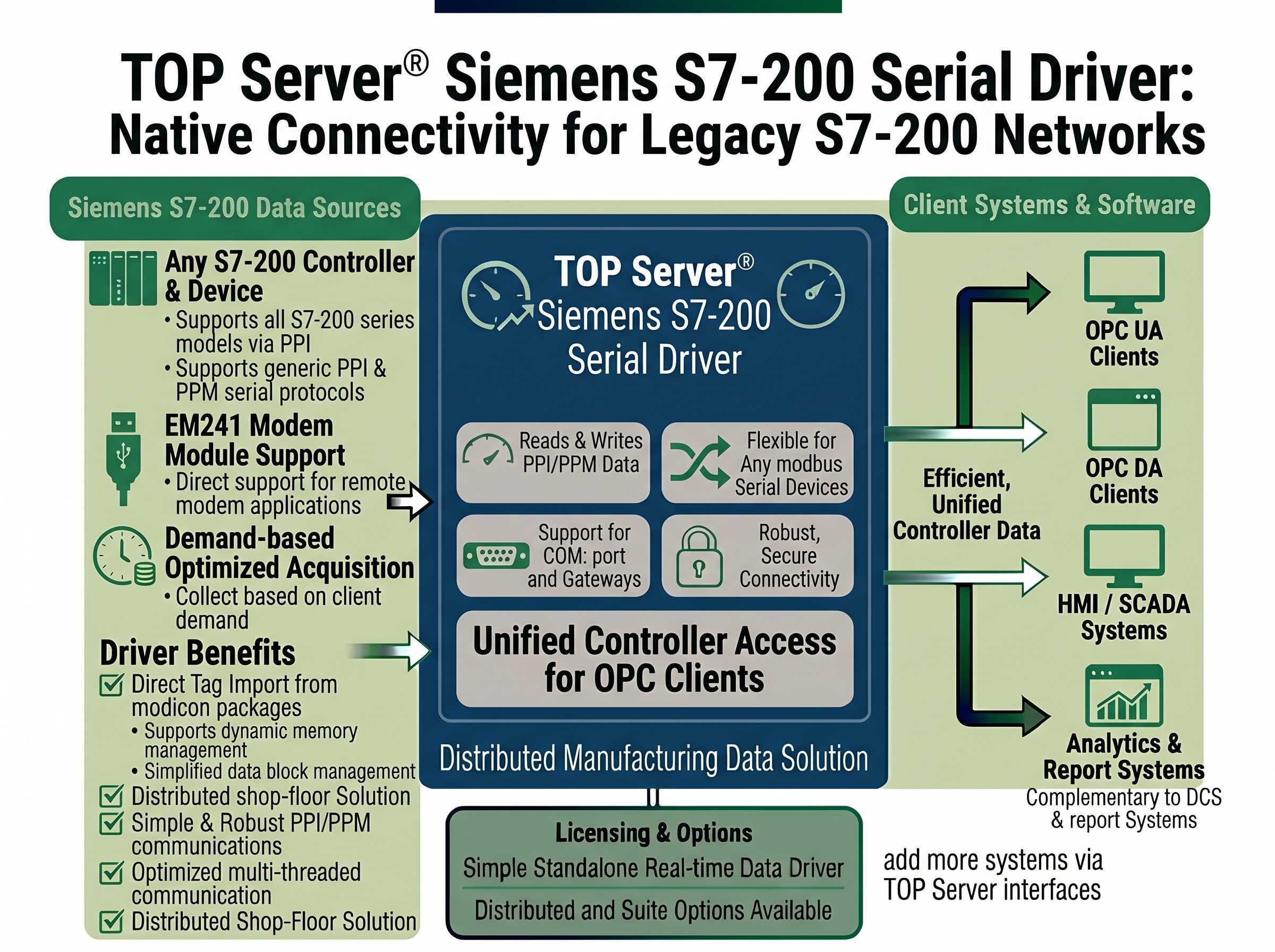

The Siemens S7-200 PPI/PPM Serial driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, AVEVA SuiteLink and DDE clients and Siemens S7-200 PLCs using the PPI (Point-to-Point Interface) and PPM (Point-to-Point Multimaster) serial protocols.
This driver provides reliable serial communication with S7-200 series controllers, supporting direct connection via programming cable or network configurations with multiple PLCs on a single serial network.
Includes direct support for the EM241 Modem Module and uses extensive error handling to help ensure data integrity. The driver offers comprehensive memory area access and optimized performance for legacy S7-200 installations.
Important Notes:
This driver is available in the TOP Server Siemens Suite, TOP Server Manufacturing Suite, and TOP Server Siemens Plus Suite.
Proven benefits for reliable serial connectivity to Siemens S7-200 PLCs
Automatic Tag Database Generation using CSV Import
Tag configuration supports dynamic tags from your client application
Supports the PPI (11 bit) and PPM (10 bit) protocols
Supports Stations 0-126
Memory Types Supported: I, Q, M, S, V, T, C, HC, AI, AQ
Supports all memory types and data types such as Float, Long Word, and BCD
Configurable Siemens Client ID to represent the driver on the serial network. NOTE: Each channel using this driver must have a unique Siemens Client ID and the ID must not be shared with any of the channel's devices
Communication Serialization (Virtual Networks allow multi-protocol support on the same communication channel)
Auto Device Demotion Support to optimize communication with responsive devices
"The service was quick, helpful and efficient. I really like the follow ups and the help I got from the Software Toolbox Team. It is really rare these days that we receive a great support like your team did."
Adelaide Belanger
Automation Engineer
Everything you need for reliable Siemens S7-200 PPI and PPM serial connectivity
Maximum Number of Channels & Devices: Channels - 256, Devices per Channel - 127, NOTE: Practical channel/device limits will vary depending on your available system resources
Supports all data types
Supports the EM241 Modem Module
Supports Serial Single Master Multi-drop RS-485 via Siemens PPI Serial Programming Cable
Modem Support (Automatic Dial Configuration and Multiple Phone Number Management)
Supports Ethernet Encapsulation
PPI Protocol
Point-to-Point (11-bit) S7-200 communications protocol
PPM Protocol
Point-to-Point Modem (10-bit) S7-200 communications protocol
Serial Network
RS-485 single-master multi-drop (Siemens PPI cable required)
Modem Support
EM 241 Modem Module (S7-200 PPM only)
Ethernet Encapsulation
Supported (via terminal/device server)
Max Channels
256
Devices per Channel
127
Station Range
0-126
Baud Rates
9600, 19200
Parity / Data / Stop
Even (PPI 11-bit), None (PPM 10-bit) / 8 / 1
Memory Types
I, Q, M, S, V, T, C, HC, AI, AQ
Client Interfaces
OPC UA, OPC DA, AVEVA SuiteLink, DDE
Note: For full details on models and networks supported, please consult the driver help file.
