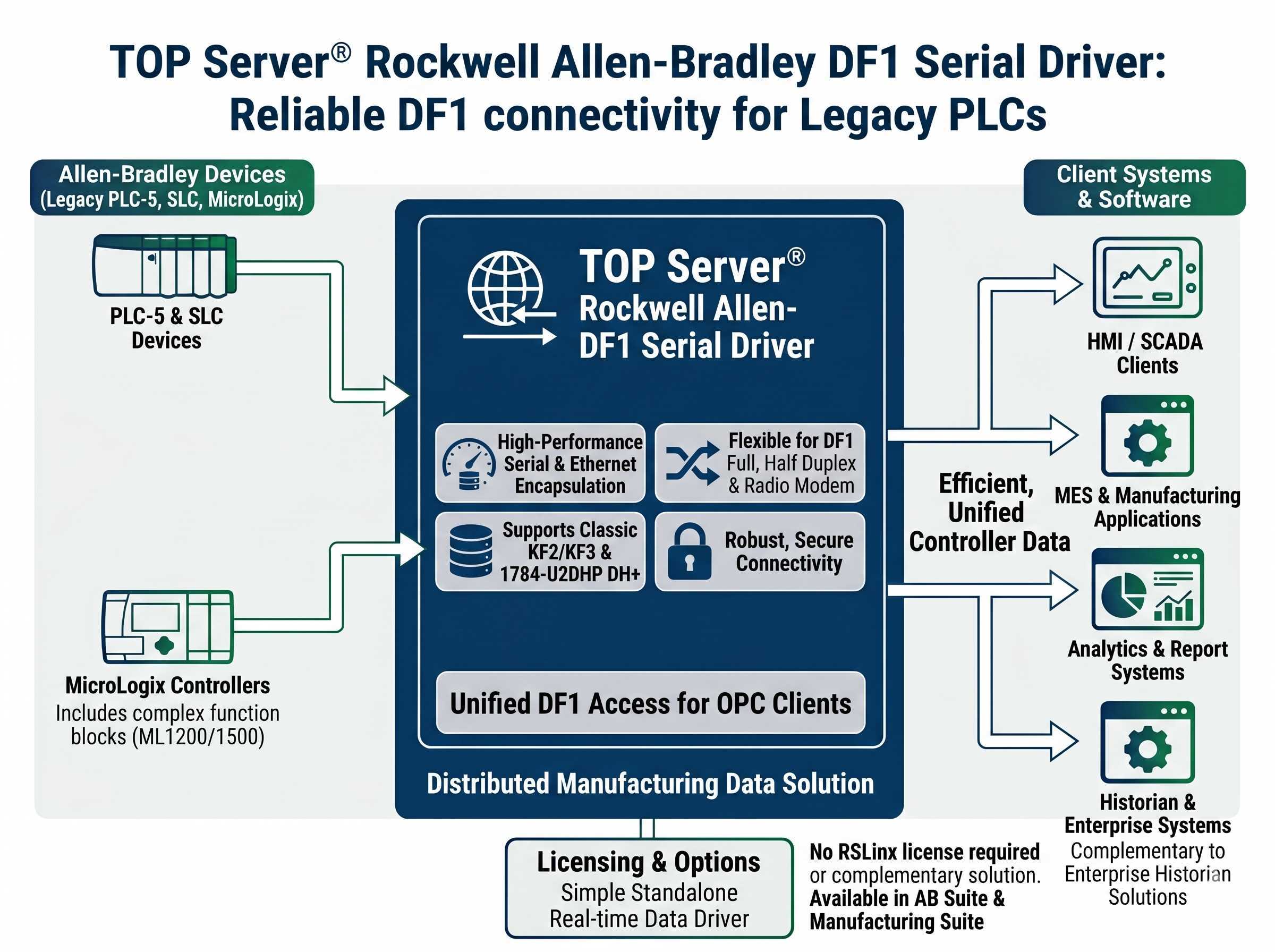

High-Performance Connectivity for PLC5/SLC500/MicroLogix Compliant Controllers
This driver is included in the following TOP Server driver suites:
Up to 100 communication channels supported.
Devices per channel for scalable deployments.
Wide serial port range for flexible setups.
Supports DF1, DH Plus, DH 485, and more.

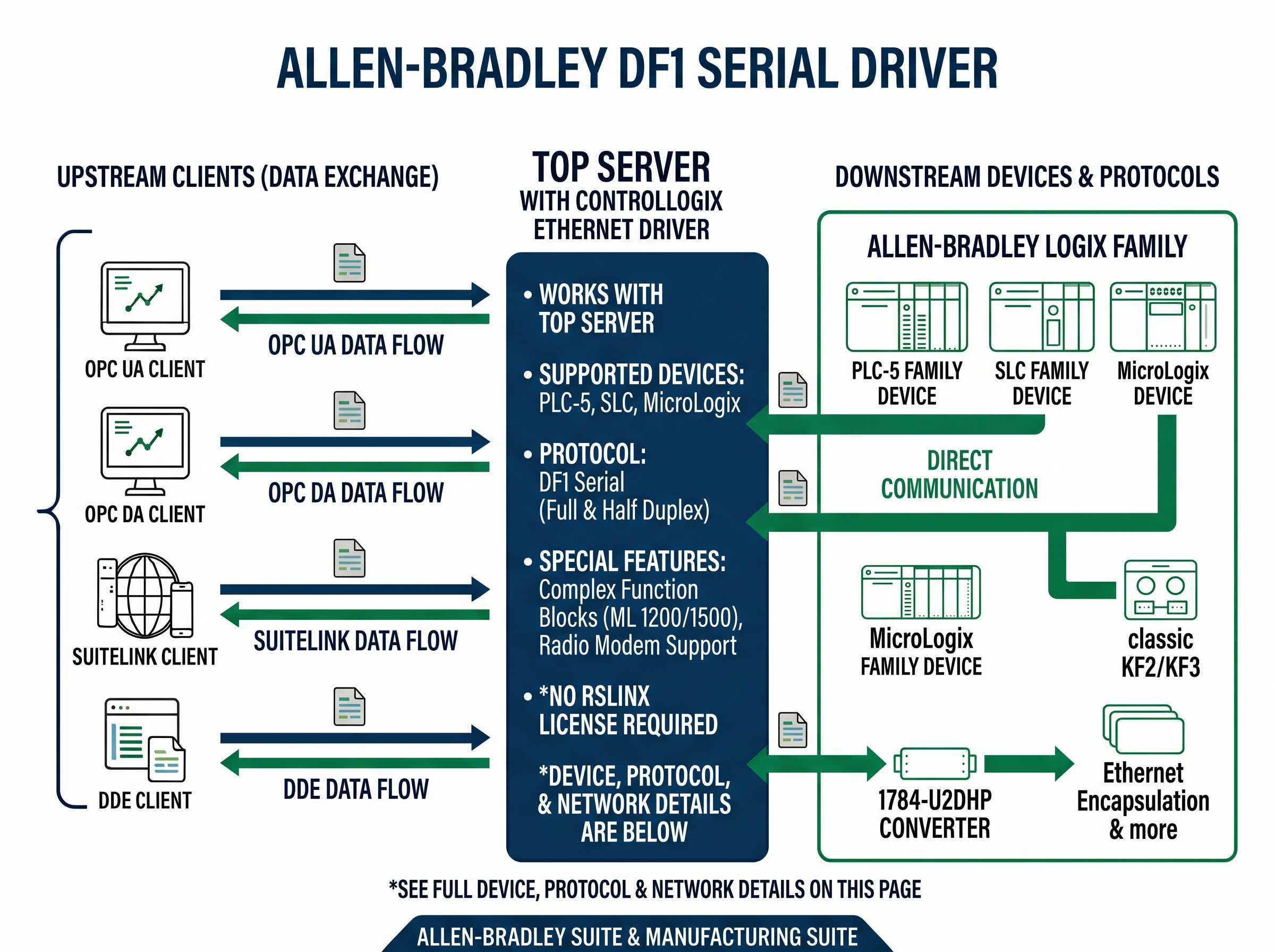

The Rockwell Allen-Bradley DF1 driver works in conjunction with TOP Server to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Allen-Bradley PLC-5, SLC, and MicroLogix devices using the Allen-Bradley DF1 protocol, including classic KF2 and KF3 interfaces, the 1784-U2DHP DH+ converter, Ethernet Encapsulation & more. Full device, protocol & network details are found on this page.

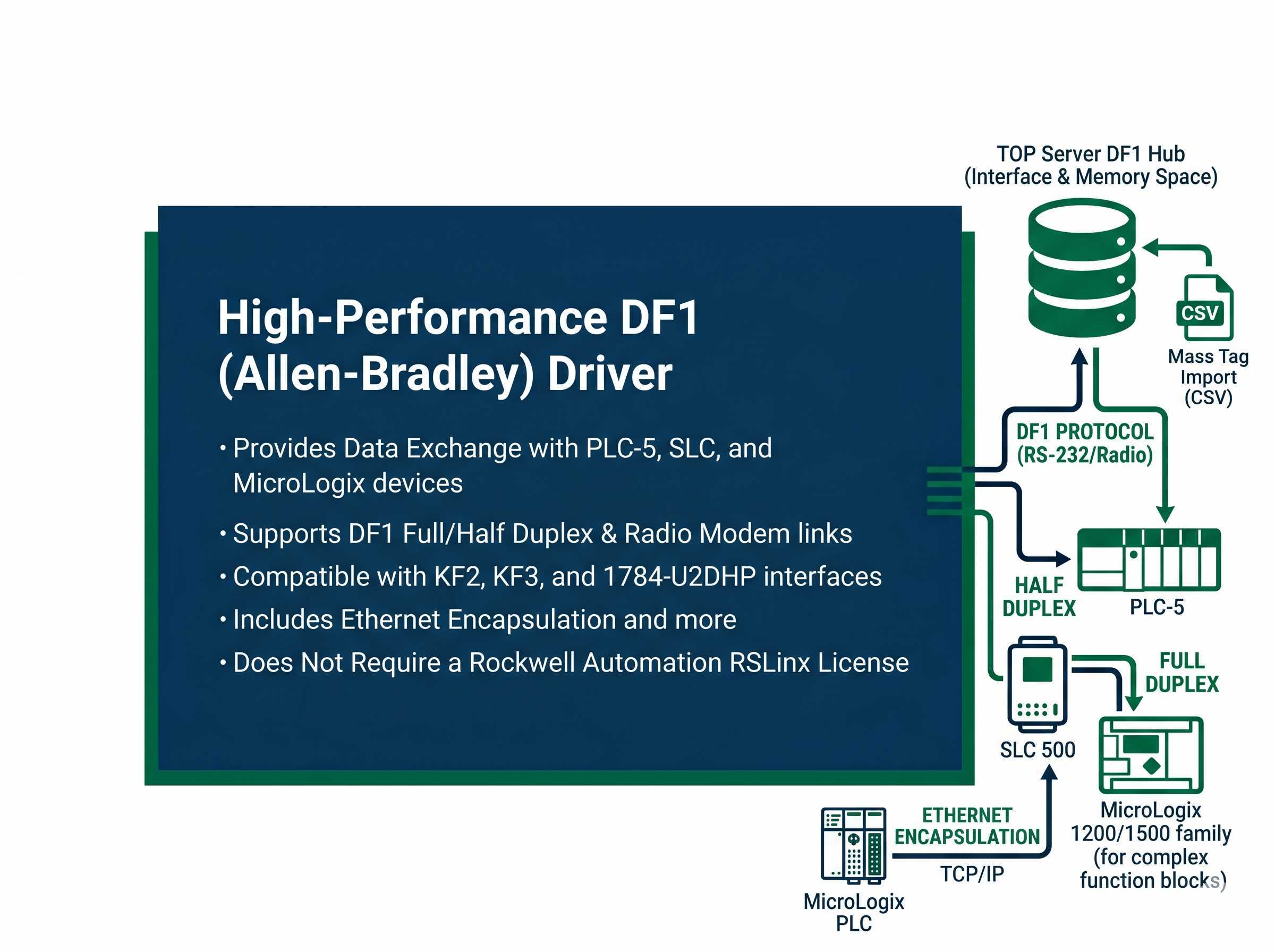

This driver supports complex function blocks in the MicroLogix 1200/1500 PLCs, Full Duplex mode, and Half Duplex and Radio modem operation for wide area radio modem links for all PLC types.
This driver does not require a Rockwell Automation RSLinx license.
Allen-Bradley DF1 Serial — This driver is available in the following TOP Server driver suites: TOP Server Allen-Bradley Suite, TOP Server Manufacturing Suite.
Proven benefits that help you deploy faster and operate more reliably
Direct connectivity without Rockwell RSLinx license
Supports all PLC5 and SLC file types and data types
User-definable block sizes and configurable delays
Simultaneous communication with multiple PLCs
"The DF1 driver's support for both Full and Half Duplex modes has been perfect for our mixed PLC environment. We're running PLC-5 and MicroLogix controllers without any issues."
Robert Martinez
Controls Engineer, Manufacturing Operations
Everything you need for reliable industrial connectivity
Supports up to 100 channels and 256 devices per channel.
COM port range, from 1 to 256 enables flexible serial communication setups.
Automatic tag database generation using CSV import allows rapid configuration.
Advanced error handling helps maintain data integrity during operations.
Includes modem support with automatic dial configuration and multiple phone number management.
Ethernet encapsulation support enables integration across network types.
MicroLogix Support
Supports MicroLogix 1000, 1100, 1200, 1400, and 1500 controllers.
PLC 5 Support
Compatible with PLC5 series including 5 slash 10, 15, 20, 20E, 25, 30, 40, 40E, 60, 80, and 80E.
SLC Support
Supports SLC5 slash 03, 04, and 05 controllers.
Interface Modules
Includes support for KF2 and KF3 modules, along with the 1784 U2DHP DF1 to DH Plus converter.
DF1 Protocols
Supports Allen Bradley DF1 full duplex, half duplex, and radio modem configurations for point to point and multi drop communication.
Serial Networks
Supports RS 232 point to point and RS 422 and 485 multi drop serial communication.
Industrial Networks
Supports DH Plus via KF2 or USB converter, and DH 485 via KF3 module.
Encapsulation
Supports Ethernet encapsulated serial communication for extended connectivity.
Note: For a complete list see the AB Suite Supported Devices page and driver help file.
