Reliable Tunneling Solution using OPC Unified Architecture
This driver is only available as part of the following TOP Server driver suites:
Max Channels
Devices per Channel
OPC DA 1.0, 2.05a and 3.0
Basic128Rsa15, Basic256, Basic256Sha256

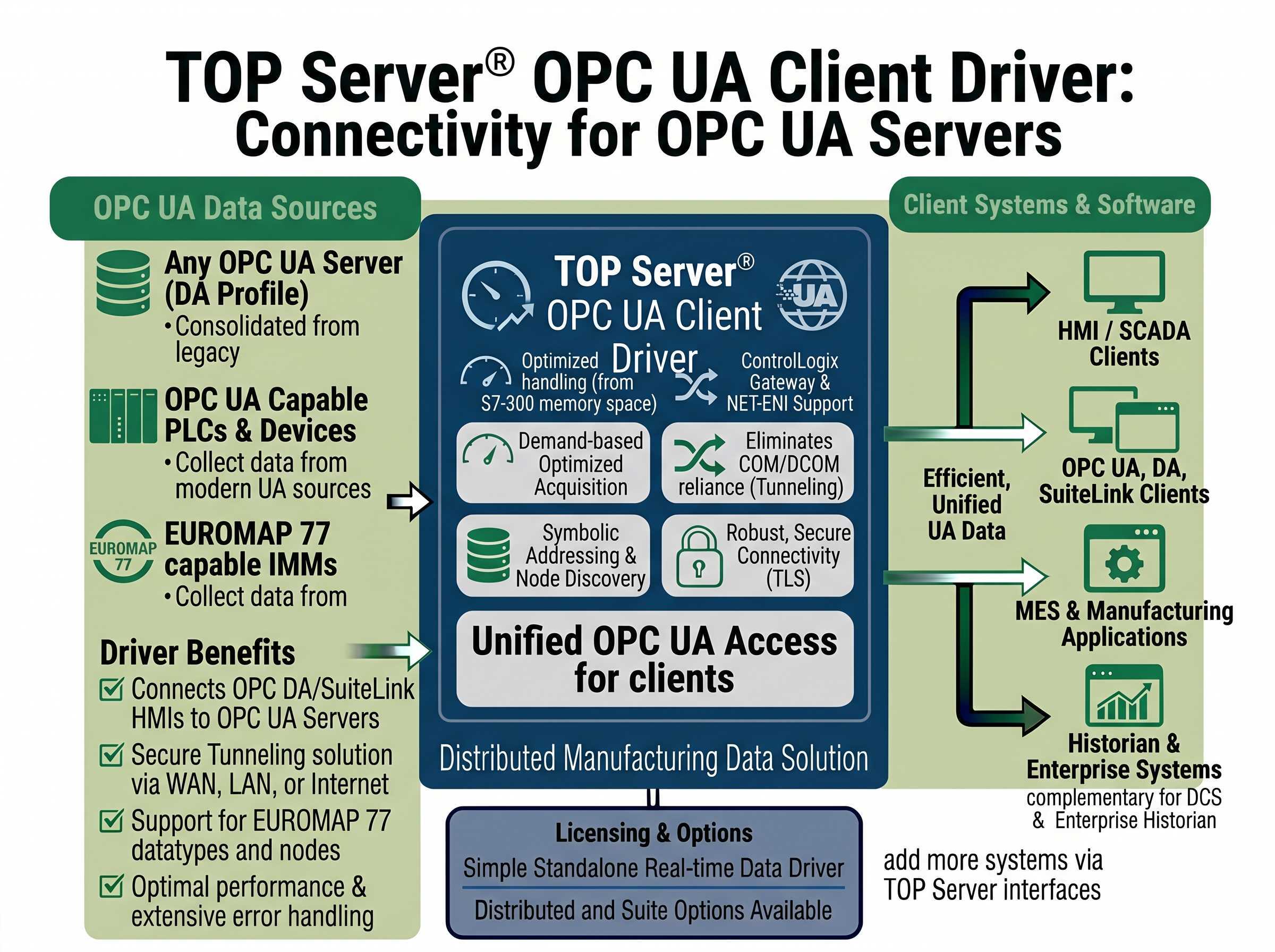

The OPC UA Client driver works in conjunction with TOP Server to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and OPC UA Servers using the OPC Unified Architecture protocol.
If you have an HMI that only supports OPC DA or SuiteLink, use this driver to connect them to OPC UA servers. Connect TOP Server to the OPC UA server and any tags you connect are automatically available via OPC DA & SuiteLink to HMI/SCADA/MES/Historian applications.
This driver implements the OPC Unified Architecture (DA Profile) specification, the modern OPC technology that expands upon OPC Data Access. Pairing the TOP Server OPC UA Client Driver with another remote TOP Server offers a secure OPC UA tunneling solution through firewalls and across the internet, WAN, or LAN, eliminating the reliance on Microsoft COM and DCOM technology.
And with support for datatypes/nodes specific to EUROMAP 77, the OPC UA Client driver can provide connectivity to EUROMAP 77 capable Injection Molding Machines (IMMs).
Proven benefits that help you deploy faster and operate more reliably
Connect to TOP Server or Third Party OPC UA Servers
Integrate OPC UA Server information through the TOP Server Namespace
Remote OPC UA Server Discovery and Tag Browsing: Tag browsing enhanced to browse in smaller blocks, avoiding shorter timeouts on the UA server with larger node/item counts, Filtering & Sorting of browse results supported in V6.16 and higher
OPC UA Endpoint Authorization via Security Certificates (x509)
Support for OPC UA Servers using separate discovery and data collection endpoints (V6.15R2 and higher)
User and Password Endpoint Authentication
Automatic Tag Database Generation
Data Updates via Exception or Polling
OPC UA Server Connection Heartbeat and Keep Alive Settings
Deadband Control (Percent or Absolute)
Data Encryption via RSA Standards
Ability to set OPC UA Server Priorities
Endpoint Management on a Per Connection Basis
Keep Alive and Watchdog Features to ensure reliable connections
Two-dimension Array Support
Supports retrieving both server and source timestamps from the OPC UA Server and uses the source timestamp if available
Supports the Nano profile to allow OPC UA access to data produced by embedded devices
Supports Media Level Redundancy, including the ability to configure secondary tunnels and triggering conditions
"The Software Toolbox team did an outstanding job. Great follow up and checking back to find out status. I will certainly recommend Software Toolbox to everyone I can. I have NEVER had a bad experience with the highly capable tech support group. Thank you for a GREAT product"
Jr Goulet
Controls Engineer
Everything you need for reliable Siemens S7-1200 and S7-1500 connectivity with symbolic addressing
Maximum Number of Channels & Devices: Channels - 256, Devices per Channel - 256, NOTE: Practical channel/device limits will vary depending on your available system resources
OPC UA Tunneling for OPC DA 1.0, 2.05a and 3.0
Supports data exchange over VPNs, through firewalls, and across the internet, WAN, or LAN
Converts OPC UA Server data to any supported TOP Server Client Interfaces
OPC UA Security Configuration in Easy-to-Use Configuration Manager
Namespace support for Injection Molding Machines (IMMs) supporting EUROMAP 77 including the following datatypes/nodes: ApplicationDescription, EnumValueType, EUInformation, Range, ServiceCounterDataType, TimeZone
OPC UA Servers
Including embedded OPC UA Servers on devices such as Injection Molding Machines supporting EUROMAP 77
Fully Supported OPC UA Profiles
AddressSpace Lookup Client Facet, Attribute Read Client Facet, Attribute Write Client Facet, Core Client Facet, DataAccess Client Facet, Discovery Client Facet, UA-TCP UA-SC UA Binary, SecurityPolicy - Basic128Rsa15, SecurityPolicy - Basic256, SecurityPolicy - Basic256Sha256, SecurityPolicy - None
Partially Supported OPC UA Profiles
Base Client Behavior Facet. This profile does not support 'Security Administrator – XML Schema', DataChange Subscriber Client Facet. This profile does not support 'Monitor Client by Index'.
License Type
Perpetual
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
