Modbus RTU connectivity for Schneider Electric Modicon devices with scalable integration
This driver is only available as part of the following TOP Server driver suites:
High scalability with up to 2048 communication channels.
Supports up to 247 devices per channel.
Extensive serial support with COM ports from 1 to 999.
Full Modbus address range up to 65535.

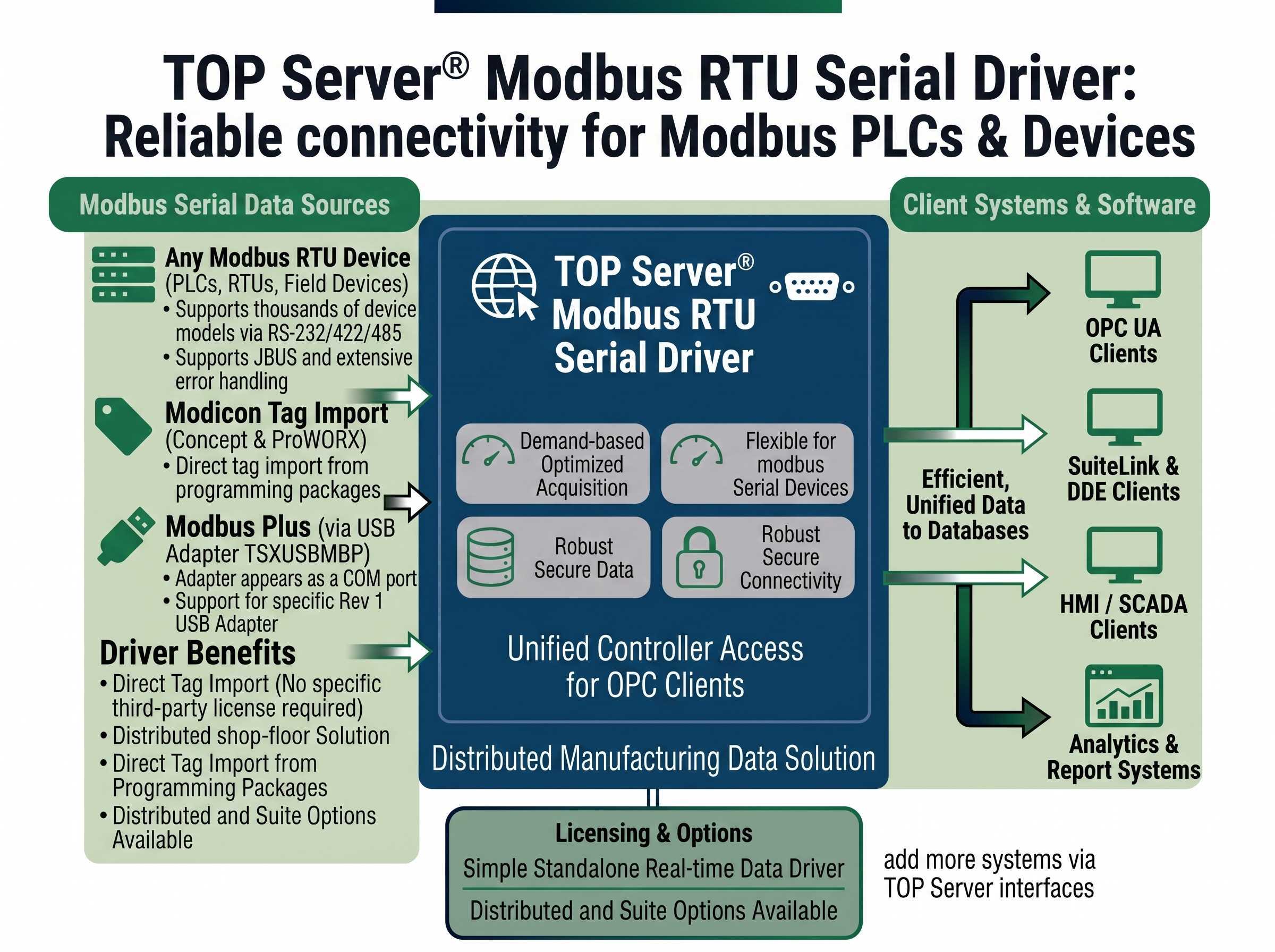

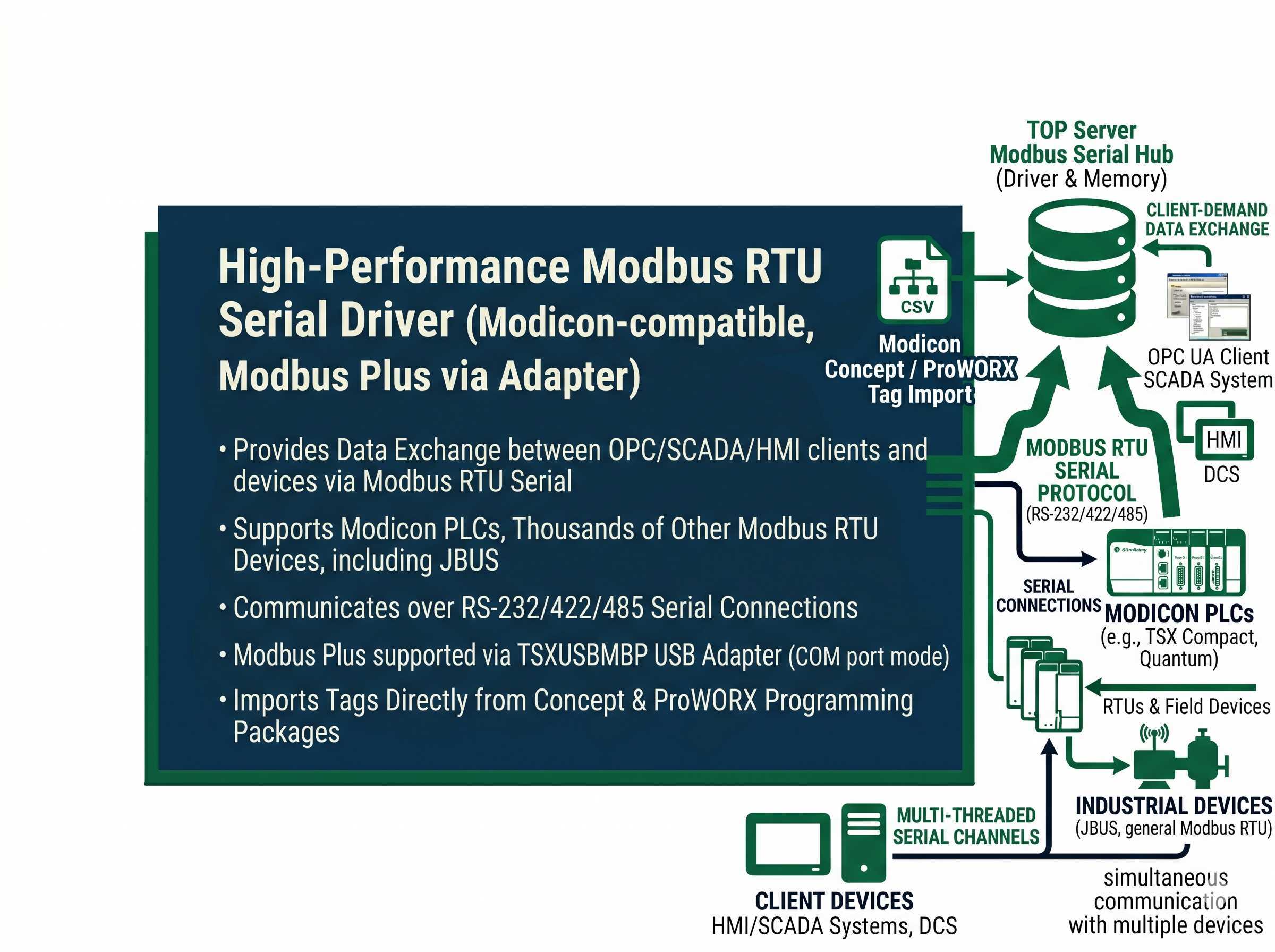

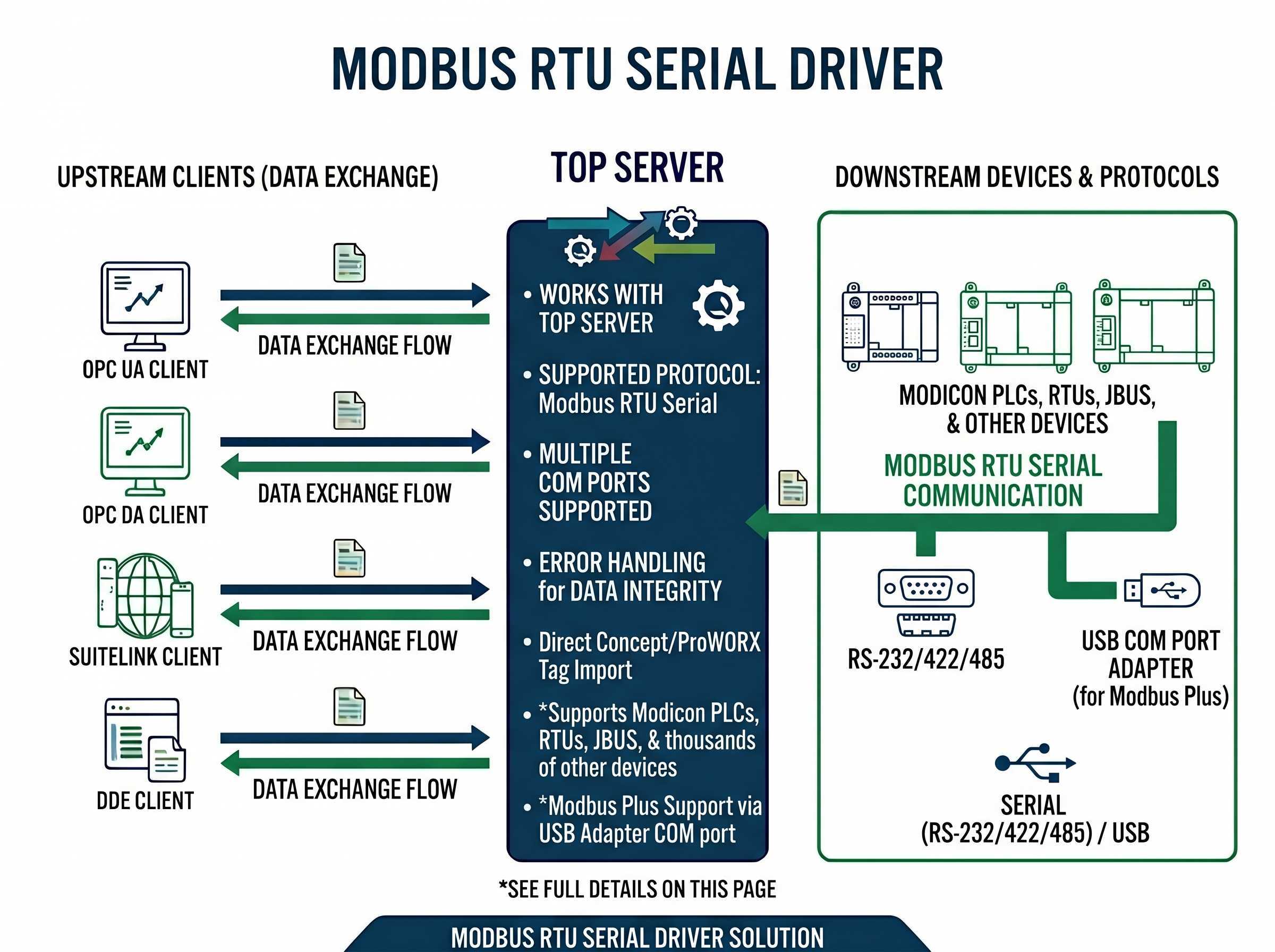

The Modbus RTU Serial driver works in conjunction with TOP Server to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and devices using the Modbus RTU Serial protocol over RS-232/422/485 connections.
This driver supports Modicon PLCs and the thousands of other devices in the industry that support the Modbus RTU Serial protocol, including JBUS. Data integrity is ensured using extensive error handling. Modbus Plus is also supported via the USB Adapter TSXUSBMBP Revision 1, which appears as a COM port to the operating system and this driver. For other Modbus Plus interfaces we have a dedicated Modbus Plus driver in the suite.
The Modbus Serial driver now features direct integration with Modicon Concept and ProWORX programming packages, allowing users to directly import the tags from the PLC into TOP Server.
Proven benefits that help you deploy faster and operate more reliably
Modbus function codes supported in decimal, 01, 02, 03, 04, 05, 06, 15, 16, and hexadecimal, 01, 02, 03, 04, 05, 06, 0F, 10.
Full address range support up to 65535, including 0xxxx output coils, 1xxxx input coils, 3xxxx internal registers, and 4xxxx holding registers.
Supports all memory types and data types including word, float, long, and double.
String data type support for internal registers.
Supports string block reads and 32 bit data handling using two registers.
Device Model Elliot supports native 32 bit register blocks from 405001 to 405315 and 407001 to 407315.
Automatic tag database generation using CSV import and support for dynamic tags from client applications.
Configurable inter request delay for optimized communication performance.
