TOP Server Cutler-Hammer OPC Drivers Suite

Key TOP Server Cutler-Hammer Suite Features Include

• Addressing Support for Discrete Inputs, Discrete Outputs, Main Relay, Timer Status, Step Point, Timer Current Value, Counter Current Value, Data Register, and String Support

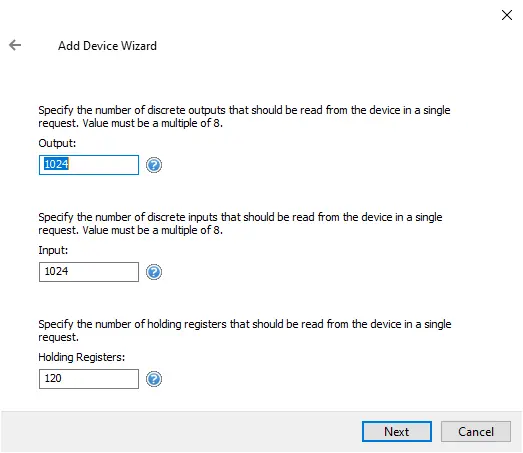

• User Configurable Block Reads and First Word Lo/Hi option for 32 bit data types
• Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers

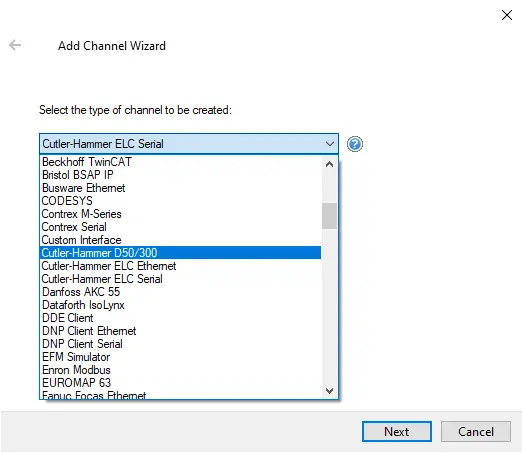

TOP Server Cutler-Hammer Suite Drivers Include TOP Server Built-In Features

• Multi-threaded architecture for high scalability
• Runtime changes via wizard-based configuration interface with intuitive Properties Editor
• Secure User Management
• Built-in Device/Network Redundancy
• Auto-Demotion (Slow Polling)
• Extensive communication and server diagnostics (OPC / Communications / Event Log)
• For all TOP Server built-in features, click here.

Advanced Features Include

• Cutler-Hammer specific error messaging
• User Configurable Block Reads

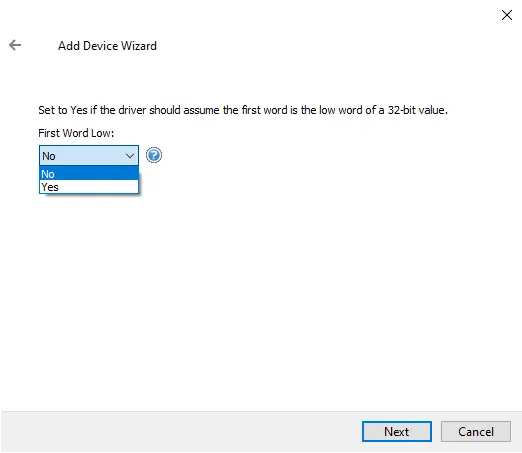

• First Word Lo/Hi option for 32 bit data types
• Supports Multi-drop RS-485 (1 to N)

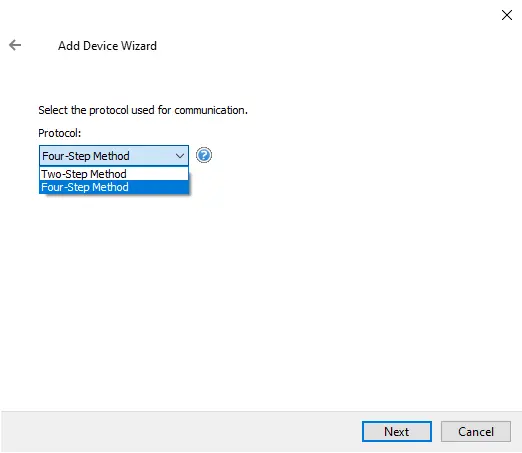

• Configurable setting for Two Step Method and Four Step Method communication with device

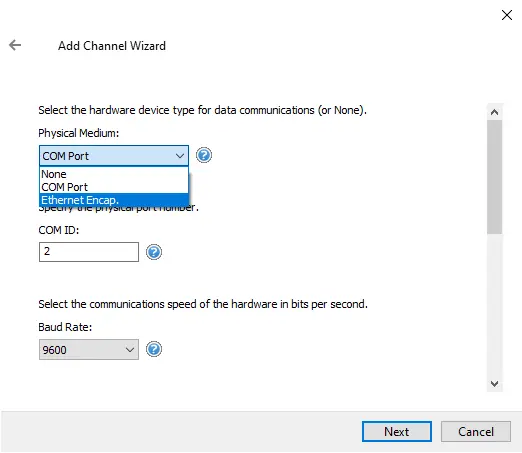

• Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers

Supported Devices Include (Don't See Your Device Listed?  Contact Us)

• ELC-PA
• ELC-PB
• ELC-PC
• ELC-PV
• D300 Series
• D50 Series
• any ELC Series Controller
  • Allen-Bradley OEMax devices

Supported Protocols / Networks

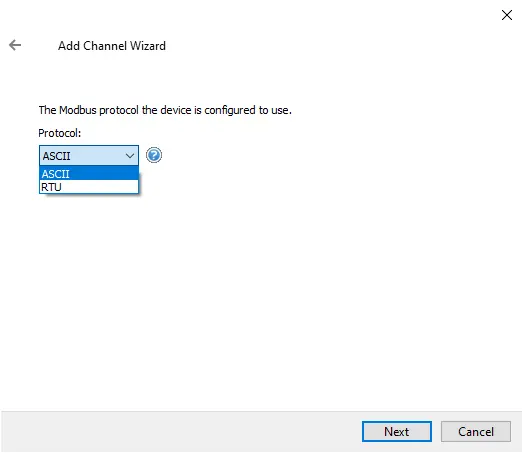

• Cutler-Hammer ELC Modbus
• Cutler-Hammer Modbus ASCII
• Cutler-Hammer Hex Mode Protocol
• TCP/IP Ethernet
• Serial RS-232
• Serial RS-422
• Serial RS-485
• Ethernet Encapsulation for Serial Protocols

Available Languages

• English

Click to Learn More

• TOP Server How-To Videos / Tutorials
• TOP Server How-To Application Notes
• TOP Server Quick Start Guide
• TOP Server Troubleshooting Guide

• Cutler-Hammer ELC Ethernet Help File
• Cutler-Hammer ELC Serial Help File
• Cutler-Hammer D50/D300 Serial Help File
