TOP Server Yaskawa MP Series Ethernet OPC Driver Details

Yaskawa MP Ethernet Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 100
  • Devices per Channel - 2048
  • NOTE: Practical channel/device limits will vary depending on your available system resources
• Utilizes the 218 IF Ethernet Interface Card

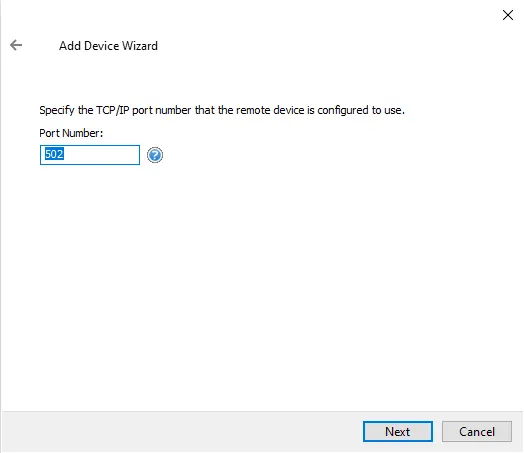

• Designed for TCP/IP operation
• Supports IB, MB, IW and MW Registers
• Supports User Definable Block Sizes
• Supports all data types and arrays

Standard Yaskawa MP Ethernet Features Include

• Supports Input Bits (IB), Output Bits (MB), Input Registers (IW), Output Registers (MW)
• Supports all data types and arrays
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability
  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

Yaskawa MP Ethernet Advanced Features Include

• Supports User Definable Block Sizes
• Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
• User-selectable socket connection termination on device response timeout
• Specify a Network Interface Card at the channel level (Details)

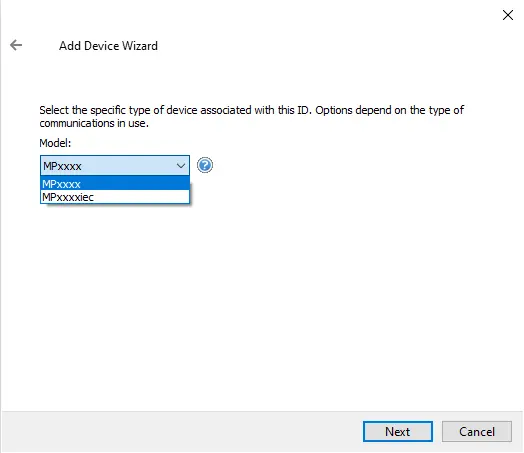

Yaskawa MP Ethernet Supported Devices (Don't See Your Device Listed?  Contact Us)

• Yaskawa MP920 Series CPU equipped with the 218 IF Ethernet Inteface Card
• Yaskawa MP2000IEC Series
• Some CP Series Controllers

Yaskawa MP Ethernet Supported Protocols / Networks

• Protocols:
  • Memobus Ethernet
  • Yaskawa MP Modbus Ethernet
• Networks:

  • TCP/IP Ethernet
