TOP Server WITS Level 0 Passive Driver Details
Unsolicited Data Aggregation for Wellsite Equipment

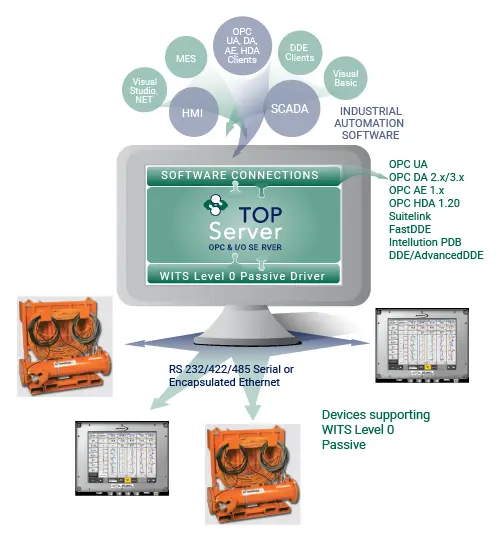

The TOP Server® WITS Level 0 Passive driver is used to transfer wellsite data from one computer system, such as a Measurement While Drilling (MWD) device, to HMI, SCADA, and OPC client applications without active polling. This facilitates real-time monitoring of data such as compass direction, borehole pressure, temperature, vibration, shock, torque and more, which is commonly required by exploration and production service and operating companies.
This unsolicited mode allows the server to receive data by exception from WITS devices without having to send requests for data to the devices. This driver provides connectivity to wellsite devices supporting the WITS (Wellsite Information Transfer Specification) Level 0 Passive protocol over Serial connections, including EDR, LWD, MWD, and other integrated systems in the oil & gas industry.
WITS Level 0 Passive
This driver is available in the following
TOP Server driver suites:
FEATURES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
WITS Level 0 Passive Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 256
- Devices per Channel - 1
- COM Port Range - 1 to 256
- Supports up to 256 WITS Level 0 Passive devices
- Single device per channel (peer-to-peer communications)
- Support for all WITS Pre-Defined Code Numbers
- Support for WITS Undefined Code Numbers
- Data Types Support - Short, Long, DWord, Float, String
- Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
- Automatic Tag Database generation for plug and play ease of use
Standard WITS Level 0 Passive Features Include
- Support for all WITS Pre-Defined Code Numbers
- Support for WITS Undefined Code Numbers
- Data Types Support - Short, Long, DWord, Float, String
- WITS Code Number based address syntax
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
WITS Level 0 Passive Driver Advanced Features Include

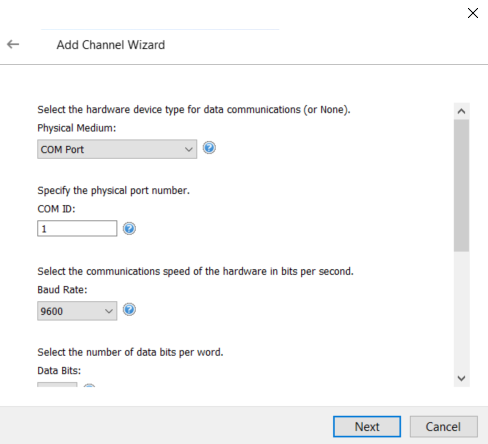

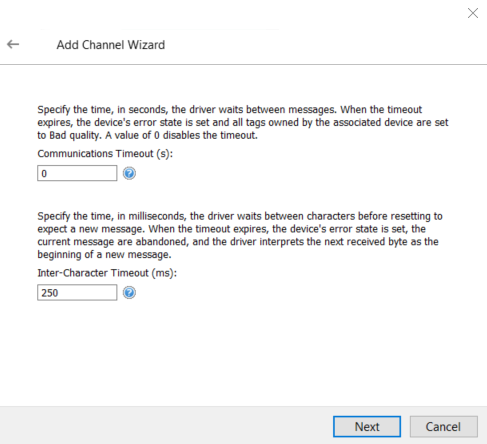

- Configurable Inter-Character Timeout
- Configurable Message Delimiter
- Configurable delay period between write operations
- Supports Automatic Tag Generation
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
WITS Level 0 Passive Supported Devices (Don't See Your Device Listed? Contact Us)
- Anadrill
- APS Technology SureShot
- Baker Hughes
- BlackStar Electromagnetic Tools
- Canrig Rigwatch
- Departure Energy Services MWD
- Dynamic Drilling Systems
- EPOCH Rigwatch
- Erdos Miller
- Extreme Engineering
- Forerunner Technology Drilling Sensors
- Geospect Instruments
- GeoSteering RIGCOMMS
- iBall Instruments Bloodhound
- Mudlogging Systems MControl
- NOV Amphion Rig Tool Controllers
- NOV RigSense
- Pason - EDR
- Schlumberger MWD and PowerDrive RSS (via MAXWELL software)
- TookeDAQ
- Weatherford
WITS Level 0 Passive Supported Protocols / Networks
- Protocols:
- WITS Level 0 Passive (unsolicited)
- Networks:
- Serial RS-232
- Serial RS-422
- Serial RS-485
- Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers.
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
