TOP Server TIWAY Host Adapter OPC Driver
Reliable Connectivity for Siemens/TI Controllers via TIWAY
The TOP Server® TIWAY Host Adapter Driver provides a communication interface to Siemens TIWAY compatible controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and TIWAY Secondary Devices supporting the Non-Intelligent Terminal Protocol (NITP) using the TIWAY Hostlink or Unilink Host Adapter to bridge from the TIWAY network to a serial connection on the PC. The driver also supports the use of Ethernet Gateways/Terminal servers attached to the serial port of the TIWAY adapter.
The driver makes requests to the TIWAY Host Adapter unit, which then forwards the request on to the actual network. When a response is received, the Host Adapter returns the response to the driver. The driver can be configured to control the behavior of the adapter, or the adapter can be configured with DIP switches on the unit to tell the driver to respect these settings. Once connected to a TIWAY 1 network, the driver can communicate with up to 254 secondary devices. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
NOTE: This software makes a serial connection to the Hostlink or Unilink Host Adapter interface to the TIWAY network - this software does not support the TIWAY card that goes into your computer.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite:
TOP Server TIWAY Host Adapter Driver
$1993
$
Part # 41233123-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
FEATURES & RESOURCES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
TIWAY Host Adapter Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 254
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture

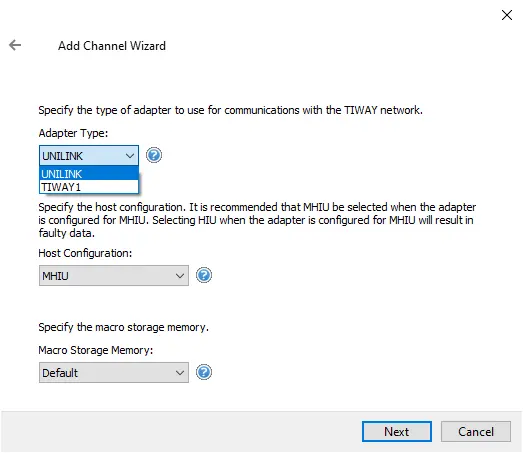

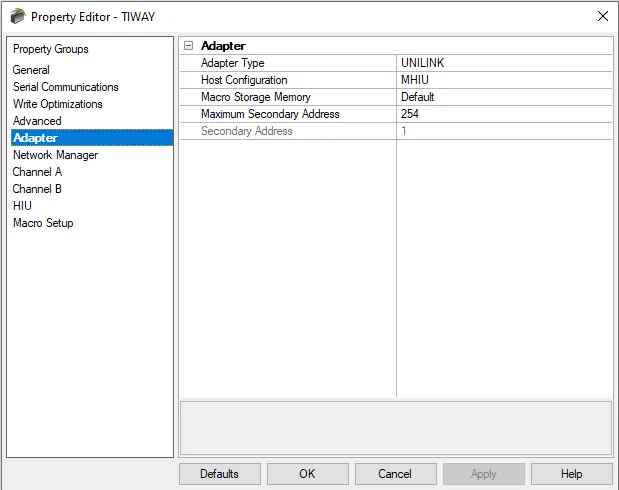

- Supports TIWAY 1 or TIWAY 1 UNILINK Host Adapter
- Supports all Simatic/TI TIWAY compatible controllers
- Includes full 254 station support
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
- Setting to define Bit Order (Bit 1 is LSB or Bit 1 is MSB)
- Supports all data types
Standard TIWAY Host Adapter Features Include
- Supports the following memory types: X, Y, WX, WY, C, V, K, SS, TCP, TCC, DSP, DSC, DCP, AVF, ACF, APVH, APVL, APV, AHLIM, ALLIM, AOD, AYD, ASR, ASP, AE, APVHH, APVLL, and ARC
- Supports TIWAY 1 or TIWAY 1 UNILINK Host Adapter
- Includes full 254 station support
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
TIWAY Host Adapter Advanced Features Include

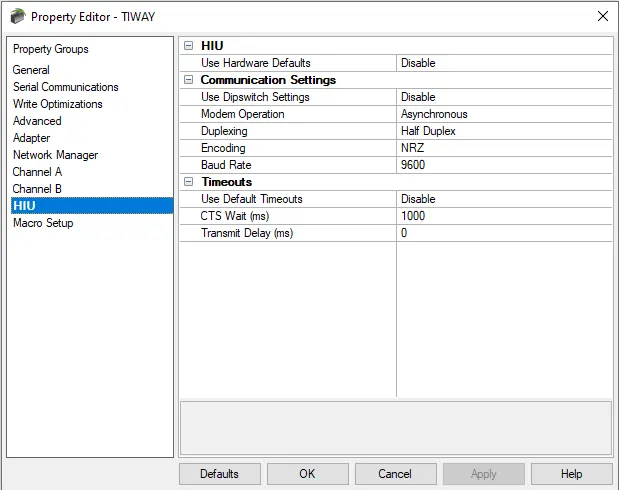

- Option to use hardware defaults and hardware default settings to reduce configuration effort

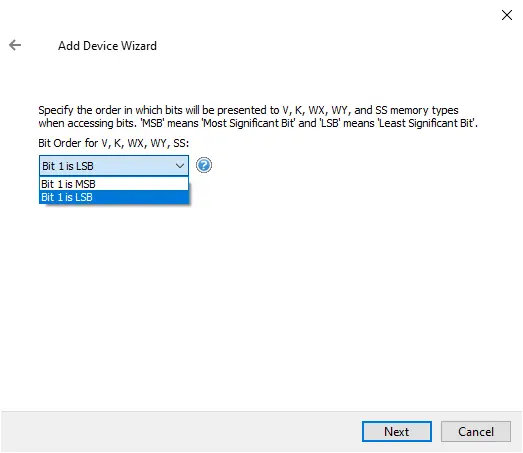

- User defined Bit Order for V, K, WX, WY and SS addresses

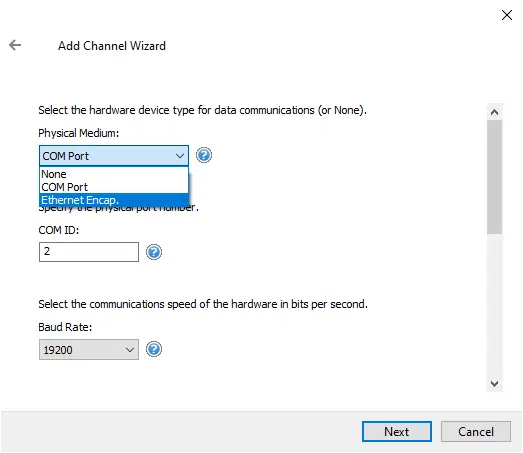

- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
- Modem Support
- Automatic dial configuration
- Multiple phone number management
- Adjustable RTS Flow timing for Radio Modem communications
Supported Devices Include (Don't See Your Device Listed? Contact Us)
- TIWAY Secondary Device
Supported Protocols / Networks
- Protocols:
- Non-Intelligent Terminal Protocol (NITP)
- Networks:
- Serial RS-232
- Serial RS-422
- Serial RS-485
- Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers.
