TOP Server MTConnect Client OPC Driver
Reliable Connectivity for MTConnect Compliant Agent Applications

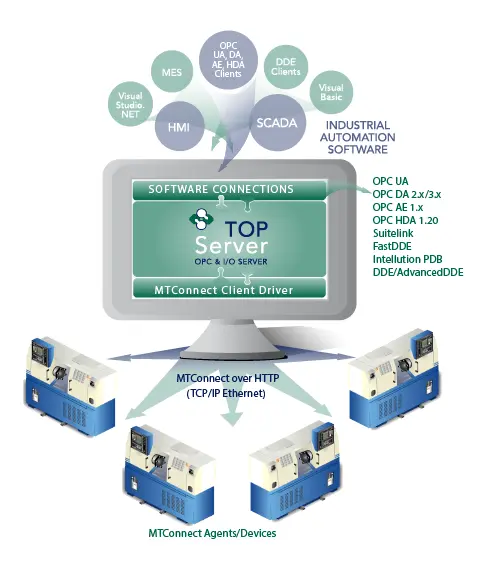

The TOP Server MTConnect Client driver provides a communication interface for shop floor equipment supporting the MTConnect Standard protocol. MTConnect is an open standard owned and maintained by the MTConnect Institute. It is designed for connecting shop floor technologies to software applications for monitoring and analysis, furthering the goal towards seamless manufacturing operation and integration.
The MTConnect Client Driver provides users the opportunity to develop more efficient operations with improved production optimization and increased productivity by providing real-time operational data to client applications (including HMI, SCADA, Historian, MES, ERP, and countless custom applications).
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite:
TOP Server MTConnect Client Driver
$1846
$
Part # 41233222-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
FEATURES & RESOURCES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
MTConnect Client Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 1024
- Devices per Channel - 256
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
- Automatic Device/Agent Discovery
- Automatic Tag Generation
- Supports Event and Condition
- Supports Current and Probe commands
- Supports MTConnect Data Item Sets
Standard MTConnect Client Features Include
- Supports Event and Condition
- Supports Current command (current value of a data item)
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
MTConnect Client Advanced Features Include
- Automatic Device/Agent Discovery searches configurable IP Address range
- Automatic Tag Generation
- Probe command imports tags from MTConnect agent/device
- MTConnect Data Item Sets
- Optional setting for skipping schema validation
- Additional schemas can be imported into the TOP Server root directory:
C:\Program Files (x86)\Software Toolbox\TOP Server 6\Drivers\MTConnectClient
Supported Devices Include (Don't See Your Device Listed? Contact Us)
- Any Machine Tool or Agent supporting the MTConnect Protocol
- Must support an MTConnect Version from V1.1 to V1.6, V2.0 (with XML 1.0 Schema Validation Enabled or Disabled)
- Must support an MTConnect Version of V1.7 or V1.8 (with XML 1.0 Schema Validation Disabled Only)
- NOTE: The MTConnect driver must always connect to an agent (i.e. direct connections to an adapter or device will fail)

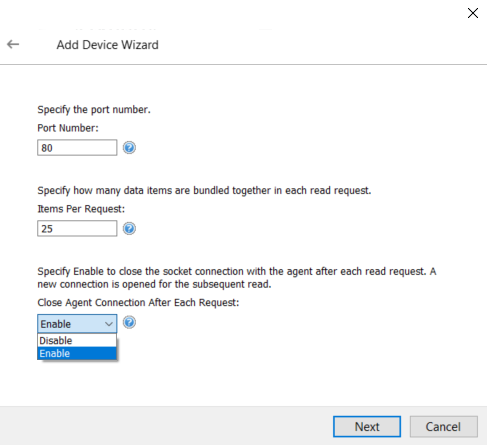

- Confirm the correct TCP port for the MQTT agent corresponding to the device you are collecting data from and specify in the driver device properties.
Supported Protocols / Networks
- Protocols:
- MTConnect Standard over HTTP
- V1.1 through V1.6 and V2.0 (with XML Schema Definition 1.0 Validation Enabled or Disabled)
- V1.7 and V1.8 (with XML Schema Validation Disabled Only)
- MTConnect Standard over HTTP
- Networks:
- TCP/IP Ethernet
TOP Server How-To Videos and Application Notes
To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
