TOP Server Micro-DCI (Bailey, Fischer & Porter) OPC Driver
Reliable Connectivity for Micro-DCI Controllers
The TOP Server® Micro-DCI Driver provides a communication interface to Bailey, Fischer & Porter Micro-DCI controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Micro-DCI devices supporting the Micro-DCI DataLink protocol using the RS-232 configuration port or a RS-485 four wire multi-drop network. Ethernet Gateways/Terminal servers are also supported for integration into modern networks.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
More technical details on this page
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite:
NOTE: We are a software company and provide software to connect to Micro-DCI hardware - we do not sell, repair, or otherwise provide Bailey, Fischer & Porter hardware - Please contact MicroMod Automation to purchase hardware, spare parts or inquire about hardware repair.
TOP Server Micro-DCI (Bailey, Fischer & Porter) Driver
$1846
$
Part # 41233137-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
Micro-DCI (Bailey, Fischer & Porter) Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 32
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
- Supports Four Wire RS-485 Data Link Port and RS-232 Configuration Port
- Supports the following data formats: L, B, C, H, A, F
- Supports Boolean, Byte, Word, Float, Double and String Data Types
- Supports Micro-DCI DataLink Protocol Binary mode switching through the configuration port
- Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
Standard Micro-DCI (Bailey, Fischer & Porter) Features Include
- Supports the following data formats:
- L - Logical Data Points
- B - Byte Data
- C - Real Data (3 Byte Float)
- H - Real Data (5 Byte Float)
- A - String (10 Characters)
- F - String (5 Characters)
- Supports Boolean (bit), Byte (unsigned 8 bit), Word (unsigned 16 bit), Float (32 bit), Double (Float 64 bit), and String Data Types
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
Micro-DCI (Bailey, Fischer & Porter) Advanced Features Include
- Supports Micro-DCI DataLink Protocol Binary mode switching through the configuration port

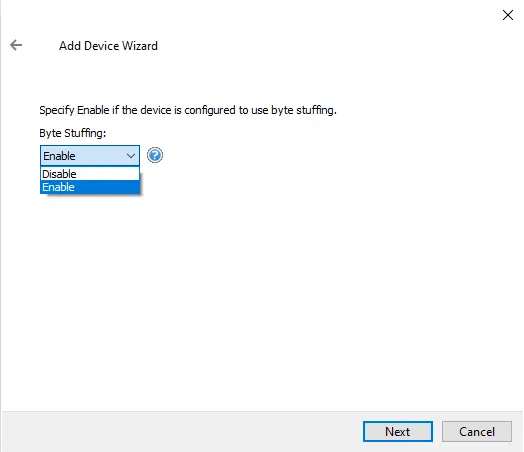

- Setting to support byte stuffing configured in device
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
- Modem Support
- Automatic dial configuration
- Multiple phone number management
- Adjustable RTS Flow timing for Radio Modem communications
- Multi-Drop Serial Communications

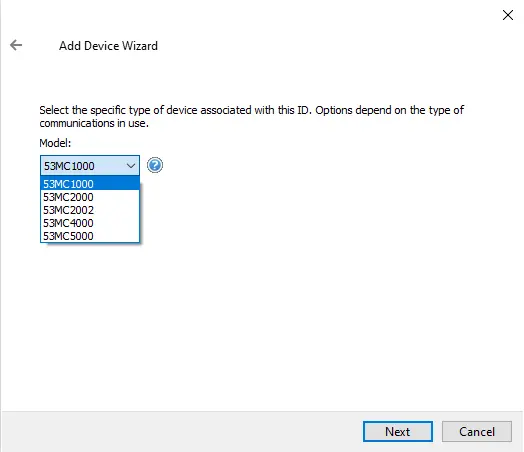

Supported Devices Include (Don't See Your Device Listed? Contact Us)
- 53MC1000
- 53MC2000
- 53MC2002
- 53MC4000
- 53MC5000
Supported Protocols / Networks
- Protocols:
- Micro-DCI DataLink
- Networks:
- Serial RS-232
- Serial RS-422
- Serial RS-485
- Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers.
TOP Server How-To Videos and Application Notes
To insure you get the most from your investment in TOP Server®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
