TOP Server KraussMaffei MC4 Ethernet OPC Driver
Reliable Connectivity for KraussMaffei Injection Molding Machines
The TOP Server® KraussMaffei MC4 Ethernet driver provides a communication interface to KraussMaffei MC4 controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and KraussMaffei MC4 Injection Molding Machines supporting the TCP/IP transport protocol over TCP and UDP connections.
Access to data in the MC4 controller is accomplished by the use of named parameter objects composed of the parameter object name, element name, and value name. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Note: MC4-Injection Molding Machines only support one connection at a time from a host or client device so please consider this if you have other applications collecting data. Consider using TOP Server as your central data collection source since it can interface with so many other software systems including databases.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite:
TOP Server KraussMaffei MC4 Ethernet Driver
$1993
$
Part # 41233185-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
FEATURES & RESOURCES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
KraussMaffei MC4 Ethernet Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 255
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
- Supports Set Analog (.SET.), Actual Analog value (.ACT.), Switching Function/Status (.SEL.), String (.STR.), Date/Time (.TIM.), Duration (.TIM.), and Cycle Actual (.CYCACT.) parameters
- User-configurable request size modes to optimize communication with device
- Parameter Handling enabled Parser to reduce tag name lengths
- Supports TCP/IP or UDP Ethernet Protocol
Standard KraussMaffei MC4 Ethernet Features Include
- Supports the following parameter element types
- Set analog value parameter (.SET.)
- Actual analog value parameter (.ACT.)
- Switching function/status (.SEL.)
- String parameter (.STR.)
- Date/time parameter (.TIM.)
- Duration parameter (.TIM.)
- Cycle actual parameter (.CYCACT.)
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
KraussMaffei MC4 Ethernet Advanced Features Include

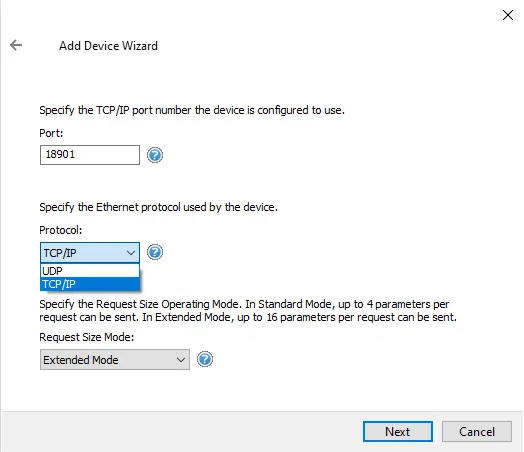

- User-configurable request size modes to optimize communication with device
- Standard Mode - up to four objects can be requested at one time
- Extended Mode - up to 16 objects can be requested at one time

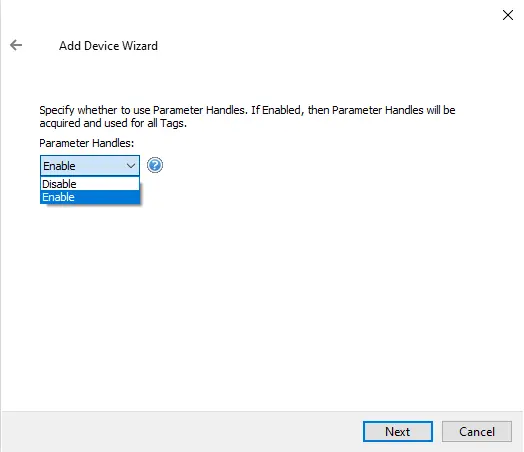

- Parameter Handling enabled Parser to reduce tag name lengths
- Supports TCP/IP or UDP Ethernet Protocol
- Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
- User-selectable socket connection termination on device response timeout
- Specify a Network Interface Card at the channel level (Details)
Supported Devices Include (Don't See Your Device Listed? Contact Us)
- MC4-Injection Molding Machines
Supported Protocols / Networks
- Protocols:
- KraussMaffei MC4 Ethernet
- Networks:
- TCP/IP Ethernet
- UDP Ethernet
TOP Server How-To Videos and Application Notes
To insure you get the most from your investment in TOPServer®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
