TOP Server Contrex/Fenner Serial OPC Driver Details

Contrex Serial Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 100
  • Devices per Channel - 100
  • COM Port Range - 1 to 999
  • NOTE: Practical channel/device limits will vary depending on your available system resources
• Memory Types supported: MP - Monitor Parameters, CP - Control Parameters, EU - Custom Engineering Units, CL - Control Commands, CT - Constant Data Table
• CX-Series Binary Data-Link Protocol Multidrop Supported
• Supports Ethernet Encapsulation for using Ethernet-to-Serial converter

Standard Contrex Serial Features Include

• Memory Types supported: MP - Monitor Parameters, CP - Control Parameters, EU - Custom Engineering Units, CL - Control Commands, CT - Constant Data Table
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability
  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

Contrex Serial Driver Advanced Features Include

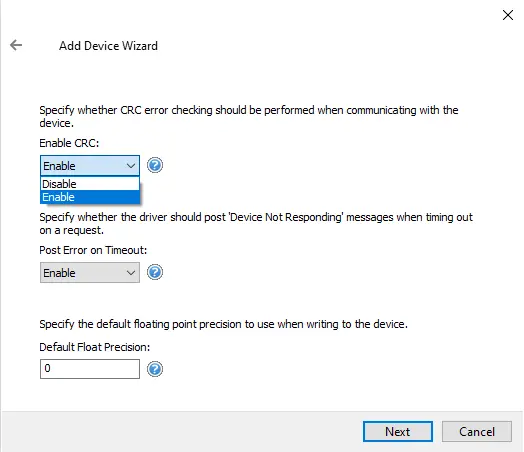

• Setting for CRC support if enabled on the controller
• User-configurable default Floating point precision when writing Float data to Control Parameters that support precision

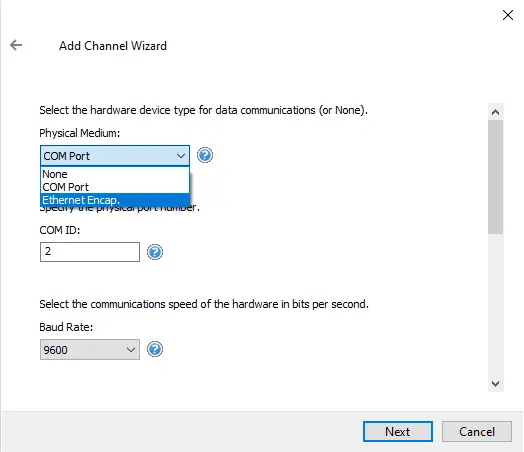

• Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
• Modem Support
  • Automatic dial configuration
  • Multiple phone number management
• Adjustable RTS Flow timing for Radio Modem communications
• Multi-Drop Serial Communications

Contrex Serial Supported Devices (Don't See Your Device Listed?  Contact Us)

• CX-1000 series - using Binary Data-Link Protocol

Contrex Serial Supported Protocols / Networks

• Protocols:
  • CX-Series Serial Communications Binary Data-Link Protocol
• Networks:
  • Serial RS-232
  • Serial RS-422
  • Serial RS-485
  • Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers.

Videos / Guides / App Notes to Help You Get Started

To insure you get the most from your investment in TOP Server^®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.

• TOP Server How-To Videos / Tutorials
• TOP Server How-To Application Notes
• TOP Server Quick Start Guide
• TOP Server Troubleshooting Guide

Driver Help Files / Release Notes

Use the below links to access TOP Server release history and driver help documentation.

• Click for Current/Past Release Notes
• Contrex Serial Help File

Access use cases, how-tos and more

Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.

TOP Server Specific Blog Posts

Overall Software Toolbox Blog Posts

Subscribe to Blog

Additional Useful Resources

Access additional TOP Server related information below not covered in other sections:

• TOP Server Operating System Support Information
• Looking for Contrex Hardware?
