High performance real-time and EFM retrieval for ROC Ethernet devices
This driver is available in the following TOP Server driver suites:
Max Channels
Devices per Channel
Flow-Cal CFX (V5), Flow-Cal Transaction Queue, PGAS, CSV, SQL/ODBC
ROC, TCP/IP, UDP/IP

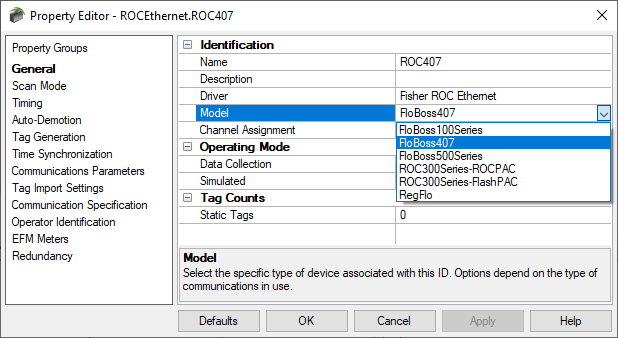

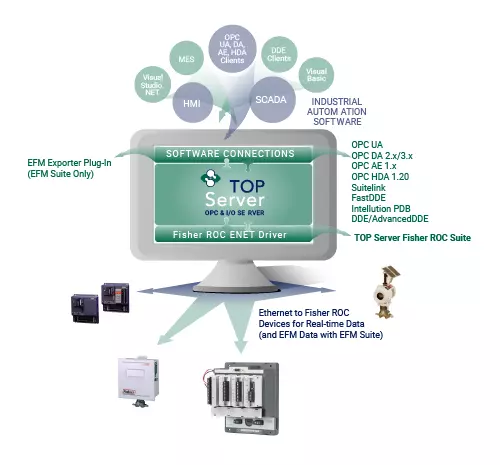

The Fisher ROC Ethernet Device Driver works in conjunction with TOP Server to provide data exchange between OPC, SuiteLink and DDE clients and Emerson Fisher ROC devices supporting the ROC protocol over Ethernet. This includes FloBoss, RegFlo and ROC 300 Series devices. No tag count limits or limits on the number of connected clients.
When part of the TOP Server EFM Suite, the Fisher ROC Ethernet driver also collects historical Electronic Flow Measurement (EFM) gas history data working in conjunction with the EFM Exporter plug-in, with supported export formats including Flow-Cal, PGAS and more, for production optimization and regulatory compliance.
Proven benefits that help you deploy faster and operate more reliably

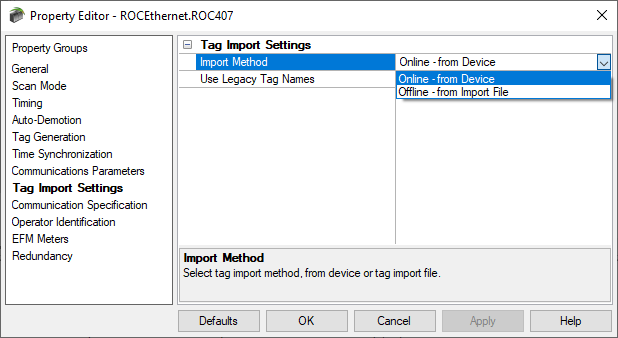

Supports Automatic Tag Generation

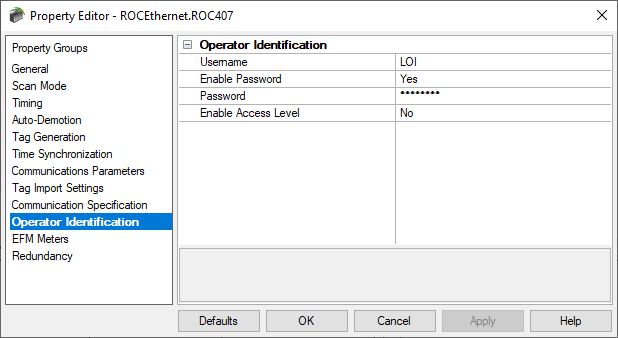

Operator Identification (including configurable Access Level)
Time Synchronization
Multi-threaded architecture for high scalability, Runtime changes via wizard-based configuration interface with intuitive Properties Editor, Secure User Management, Built-in Device/Network Redundancy, Auto-Demotion (Slow Polling), Extensive communication and server diagnostics (OPC / Communications / Event Log), For all TOP Server built-in features, click here.
EFM Support using the EFM Exporter Plug-In (EFM Suite Only): FlowCal CFX (V5), FlowCal Transaction Queue, PGAS, CSV, SQL / ODBC Databases
Support for hourly history, daily history, alarms, and events
Enable/Disable Clearing Cache on Next Upload
EFM Configuration and Mapping (EFM History / EFM Alarm / EFM Event)
EFM Pointer File caching to disk (eliminates repoll when server is restarted)
Pointer Rollback capability for retrieving lost EFM data from a device
Time synchronization on EFM poll, user-specified interval, or time of day

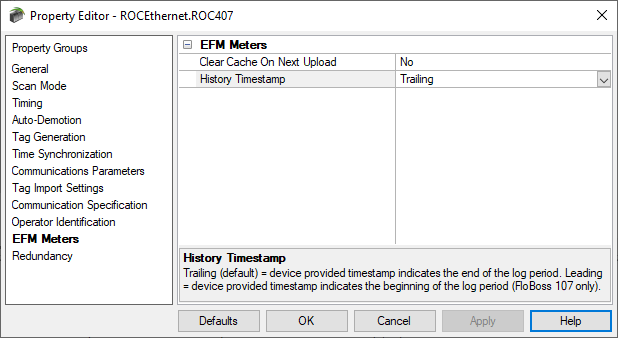

FloBoss 107 Only - Configurable for trailing or leading history timestamp
"I was having issues using a dongle to license Top Server, the Software Toolbox team was amazing, he made sure to go above and beyond to help me resolve my issue. Excellent support, reliable, quick and very professional."
Automation Engineer
Schlumberger
Everything you need for reliable industrial connectivity
Maximum Number of Channels & Devices: Channels - 1024, Devices per Channel - 255
Support for Gas (Electronic Flow Measurement) EFM retrieval
Read, Write, and Auto Tag Generation of User Program Data (User Defined Points)
Supports OpCodes 10 and 11 for reading and writing to user tables

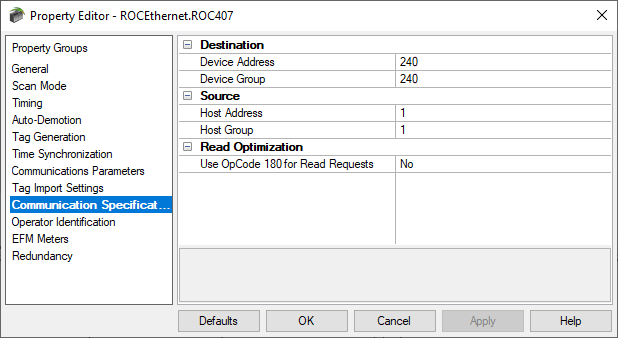

Configurable OpCode for Read Requests: OpCode 167 (Default) for reading entire point type logical addresses in one transaction, OpCode 180 for use if only a few parameters from each point type and logical address are required
Supports Advanced Statistics Tags, including _CommFailures, _ErrorResponses, and more
Supports the VCone meter type and calculation method
Optimized for extreme conditions (noisy communication channels and low-bandwidth)
Protocols
Remote Operations Controller (ROC), TCP/IP, UDP/IP
Network

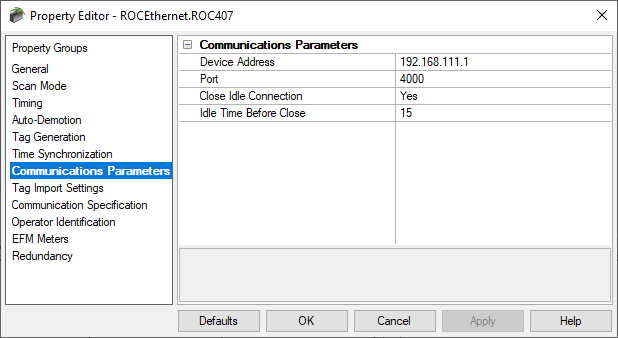

Ethernet (TCP/UDP, including Ethernet modems/radios)
Max Channels
1024
Devices per Channel
255
EFM Export Formats
Flow-Cal CFX (V5), Flow-Cal Transaction Queue, PGAS, CSV, SQL/ODBC
License Type
Perpetual
Note: For full details on models and networks supported, please consult the driver help file.
