TOP Server Modbus Plus OPC Driver Details
High-Performance Connectivity for Modbus Plus Devices

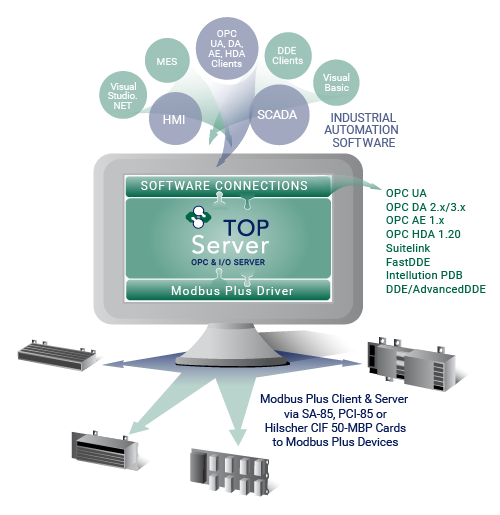

The Modbus Plus driver works in conjunction with TOP Server to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and devices supporting the Modbus Plus protocol using a Modbus Plus interface card in the TOP Server PC. The Schneider USB Adapter USB Adapter TSXUSBMBP Revision 2 is supported by this driver for applications where in PC interface cards are not available or possible. If you have USB Adapter TSXUSBMBP Revision 1, which appears as a COM port to the Windows operating system, you can use the Modbus RTU driver. More details in Device Support under Features below.
This driver supports client and server paths simultaneously. The server mode allows the driver to receive data by exception from other Modbus Plus devices acting as clients. Data integrity is ensured using extensive error handling.
The Modbus Plus driver includes direct integration with Modicon Concept and ProWORX programming packages, allowing users to directly import the tags from the PLC into TOP Server.
Modbus Plus
This driver is available in the following
TOP Server driver suites:
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
Modbus Plus Key Features Include
- Maximum Number of Channels & Devices:

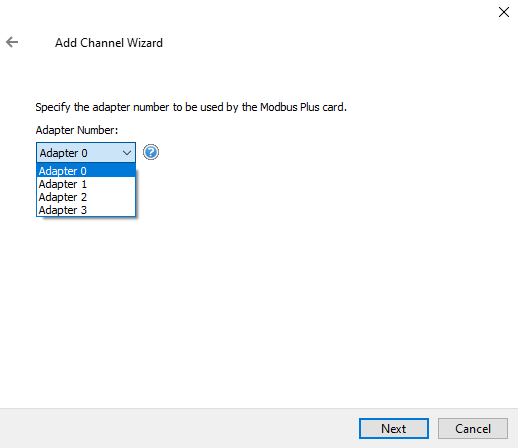

- SA85 / PCI-85 Cards or USB Adapter TSXUSBMBP Revision 2 - (Max of 4 Cards per PC)
- Channels - 8 per Card (32 Possible)
- Devices - 8192
- Hilscher CIF Max of 4 Cards per PC)
- Channels - 1 per Card (4 Possible)
- Devices - 8192
- Note: Hilscher and SA85/PCI-85 cards cannot co-exist in the same computer.
- SA85 / PCI-85 Cards or USB Adapter TSXUSBMBP Revision 2 - (Max of 4 Cards per PC)
- Supports multiple access paths per SA85 or PCI-85 Interface Card or USB Adapter TSXUSBMBP Revision 2
- Automatic Tag Database Generation (from Concept or ProWORX)
- Supports Word Order and Byte Order Swapping
- Supports accessing Holding Register memory as string data with HiLo/LoHi byte ordering
- All data types and arrays are supported
Standard Modbus Plus Features Include
- Modbus Function Codes Supported: (Blog post - demystifying Modbus Function Codes)
- Decimal - 01, 02, 03 ,04, 05, 06, 16
- Hexadecimal - 01, 02, 03 ,04, 05, 06, 10
- Full Address Range Support: 0xxxx - Output Coils, 1xxxx - Input Coils, 3xxxx - Internal Registers, 4xxxx - Holding Registers
- Decimal or Hex Addressing Support
- Supports all memory types and data types such as Float, Long Word, and BCD
- String Data Type support for Internal Registers
- String Block Read Support

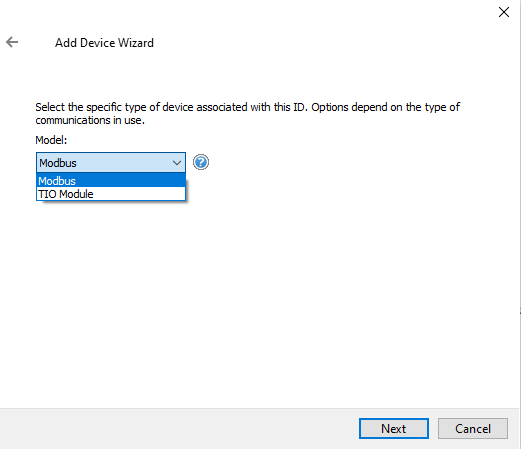

- Base Modbus device model supports 32-Bit Data Types as Two Registers
- Automatic Tag Database Generation using CSV Import
- Tag configuration supports dynamic tags from your client application
Modbus Plus Driver Advanced Features Include

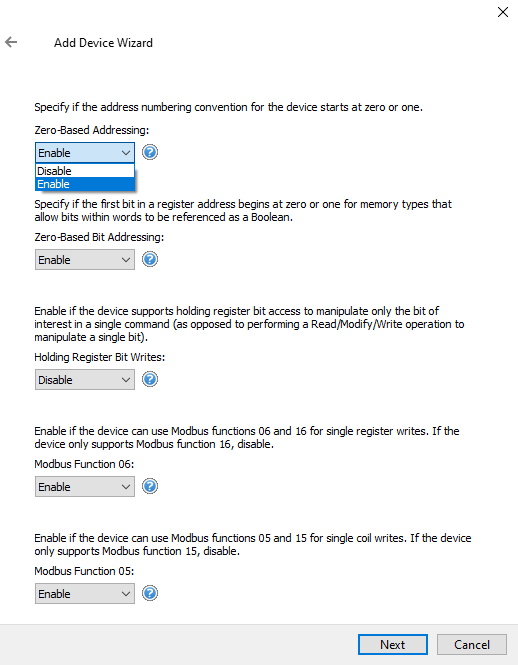

- Adjustable Address Base ( 0 or 1 ) - (SA85 Cards Only)
- Selectable Function Code for Single Address Writes

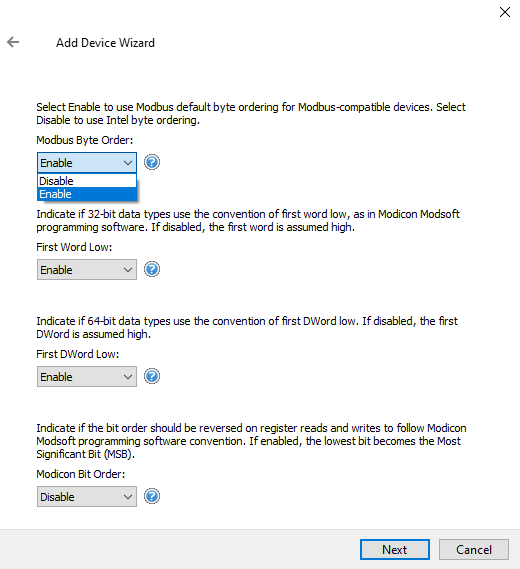

- Word Order Swapping for Float and Long Data Types
- Byte Order Swapping on all 16 bit and 32 bit values
- User Definable Read Block Sizes
- Holding register memory access as string data (HiLo or LoHi byte order)
- Ethernet Encapsulation Support
- Unsolicited Mode (SA85 Cards Only)
- Auto Device Demotion Support to optimize communication with responsive devices
- Automatic Tag Database Generation (from Concept or ProWORX)
- Multiple channels per SA85 Interface Card maximizes communications throughput
Modbus Plus Supported Devices
- USB Modbus Plus Adapter TSXUSBMBP Revision 2 (if you have TSXUSBMBP Revision 1, it appears as a COM: port and is supported by the Modbus RTU driver in the TOP Server Modbus Suite
- AT-984 Programmable Controller Board
- Modbus Plus Interface Cards Supported:
- SA85-PCI/PCI-85
- SA85 (-002 and -001) PC Interface Cards
- Modbus Plus ISA PC Adapter Card
- Schneider part#: AM-SA85-030
- Modbus Plus PCI PC Adapter Card
- Schneider part#: 416 NHM 300 30
- Modbus Plus Type II PCMCIA Card
- Schneider part#: 416 NHM 212 30
- Modbus Plus Type III PCMCIA Card
- Schneider part#: 416 NHM 212 33
- Modbus Plus Type III PnP PCMCIA Card
- Schneider part#: 416 NHM 212 34
- Hilscher CIF Card (Requires Hilscher Sycon software)
For full details on models and networks supported visit the Modbus Suite Supported Devices page and consult the driver help file. Contact us for any device support questions
Modbus Plus Supported Protocols / Networks
- Modbus Plus Protocol
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
