DataCaster + Your Data + TV =
Key Metrics at the Point of Action

Empower Your Team with Knowledge at the Point of Action

Be the operations manager, front line supervisor, lean coordinator, industrial or manufacturing engineer of the quarter or year:

• Put real-time key operating metrics on off-the-shelf TVs/displays in the operator line of sight
• Speed response to problems by giving them real-time visibility
• Reduce waste
• Improve uptime
• Identify and reduce or eliminate process bottlenecks
• Improve OEE
• Eliminate inconsistent view of reality

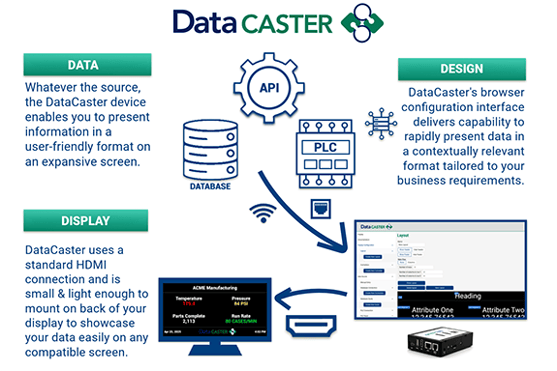

Feature Rich, Focused on Rapid Results

• Put Data on any standard HDMI TV/display in your format without any additional software or hardware - DataCaster + TV = RESULTS
• Source real-time data from 1 to N sources and display on the same screen!
  • Microsoft SQL, SQL Express and PostgreSQL database direct connect (contact us for others)
  • Rockwell Automation (Allen-Bradley) Logix Family PLCs direct connection
  • Publish data to DataCaster from any RESTful client application, including OPC Router
  • Coming Soon! Other PLCs via OPC UA Server connections
  • Coming Soon! OPC UA servers supporting generic data access including devices and other software applications directly
• Browser based configuration, no added software needed - No ladders or headaches to update configurations!
• Field upgradable firmware to get the latest updates

Rapid Data Connections for Rapid Value

• Take your DataCaster out of the box that has everything you need, follow the DataCaster Quick Start, which you can even access from the device label with a QR code
• Setup a password and get it on your wired or wireless network using a USB keyboard

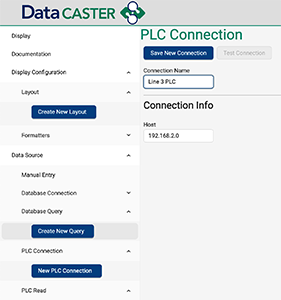

• Using your browser or a keyboard, configure your PLC, database or other data connections - test connection then go to step 2!

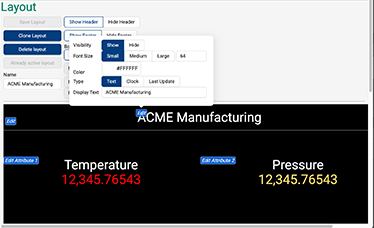

Define Layouts, Setup Reads, Map Data, & Test!

DataCaster provides the adaptability to present data in a contextually relevant format tailored to your business requirements with local and global formats and more. Once you've defined your layouts, map reads using the connections you made in Step 1, test, and you're ready for Step 3, Go Live!

Time for Value!

1. Connect your DataCaster to your display using the supplied HDMI cable.
2. Connect the supplied USB cable to the display if it can supply enough power off of one of it's USB ports, or use the included USB power supply
3. Mount the DataCaster on back of your display using included hook & loop adhesive fastener strips
4. See your results, value delivered!

And don't worry, if the device restarts due to a power failure, no action required, it will put the display you had up back on the screen when power returns and retrieve the latest data from your configured sources

Simple But Still Scalable

Just because DataCaster is a rapid-time-to-value device, does not mean that it can't scale up to larger installations.  Examples of how solutions can scale include combining with Software Toolbox's other products for

• Access to data sources not natively supported by DataCaster
• Connecting multiple DataCasters to the same control device with one connection
• Integrating data from your SAP system and publishing it to DataCaster
• And many other applications

Ready to Get Going Fast!

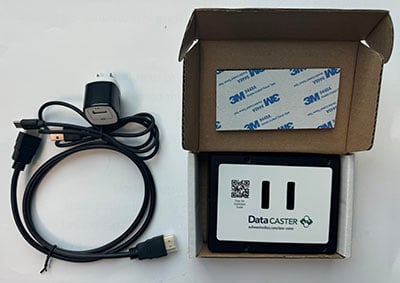

Each DataCaster Device includes these items in the box

• DataCaster Device: < 1 lb and 4.625 x 3.5 x 1.125 inches
• USB A to USB C cable for power, ~1 meter
• 5V, 1A Output, 110-240VAC 0.5A Input 2 prong US plug power adapter
• HDMI plug to plug cable, ~36 inches long
• Stick on hook & loop fastener strips to use to attach to back of display screen

DataCaster Documentation

All documentation for using DataCaster is online including the Quick Start that shows how to get the device on your network, secure the configuration, and ready to configure your display.

REST/API Documentation - is available in the browser based configuration and served up by your device. Contact us if you need access to this documentation prior to having a device.

DataCaster Devices Don't Need much!

• USB power source - 5V at 500mA max - depending on your TV, it could potentially power the device - USB-A power cable included in box
• Display (television or monitor) with HDMI port supports up to 1080p resolution at 24-bit color
• Network connection
  • Wifi - 2.4 or 5 Ghz 802.11n OR
  • Wired Ethernet - RJ-45 connector up to 1000mb/Gigabit speeds
  • 2 Wire Single Pair Ethernet jack included but not currently implemented in firmware
• USB-A connected keyboard for initial setup ONLY - not required once setup on your network.
• Computer with a Chrome or Microsoft Edge browser for configuration

Small & Light, Industrial Application Ready

Dimensions: 4.625 x 3.5 x 1.125 inches

Weight: < 1 Lb

Mounting: 2 sided hook & loop stick on fastener strip included in the package

Industrial Site Ready: 0 to 70 Degree C operating temperature range

We Stand Behind DataCaster

Hardware: Every DataCaster is backed by a 1 year warranty on the DataCaster device.  Cables and power supply carry a 30 day warranty.  Full details

Embedded Software:

• 1 year technical support plus firmware upgrades/updates/maintenance included in purchase price, renewable after the first year
• Software license covered by the Data Caster Embedded Software EULA found in our knowledgebase.

Contact our orders team if you have a device that you believe is eligible for warranty replacement.
