TOP Server Yokogawa MX Ethernet OPC Driver
OPC Server DriverProcess ControlMX Ethernet

TOP Server Yokogawa MX Ethernet OPC Driver

High-Performance Connectivity for Yokogawa MX Devices

4.7(52 reviews)

Available in Driver Suites

This driver is only available as part of the following TOP Server driver suites:

TOP Server Yokogawa OPC Drivers SuiteTOP Server Manufacturing Suite
100

Max Channels Supported

6

Module Slots per Device

10

Channels per Module Slot

4

Client Interfaces (OPC UA/DA, SuiteLink, DDE)

Product Overview

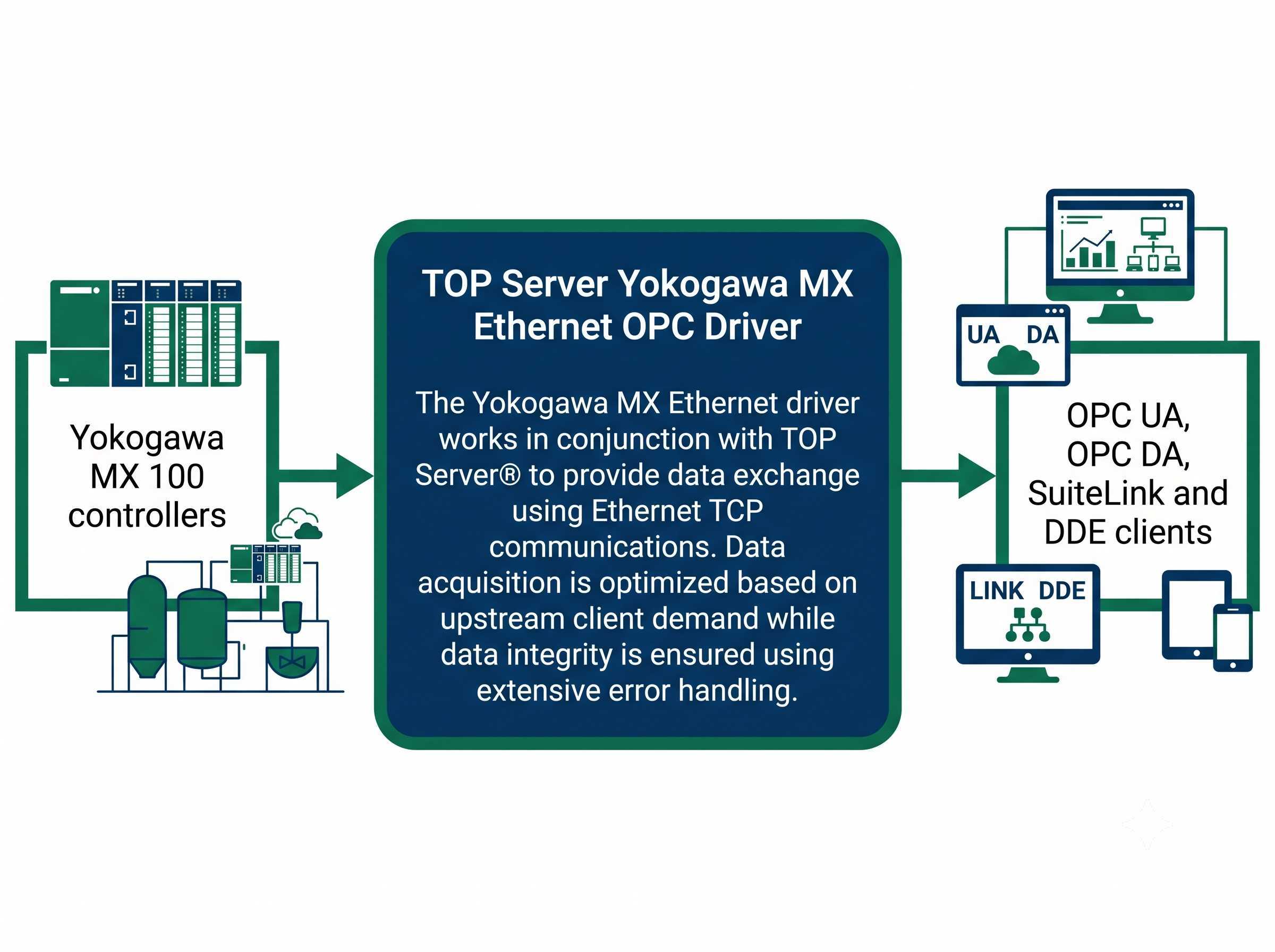

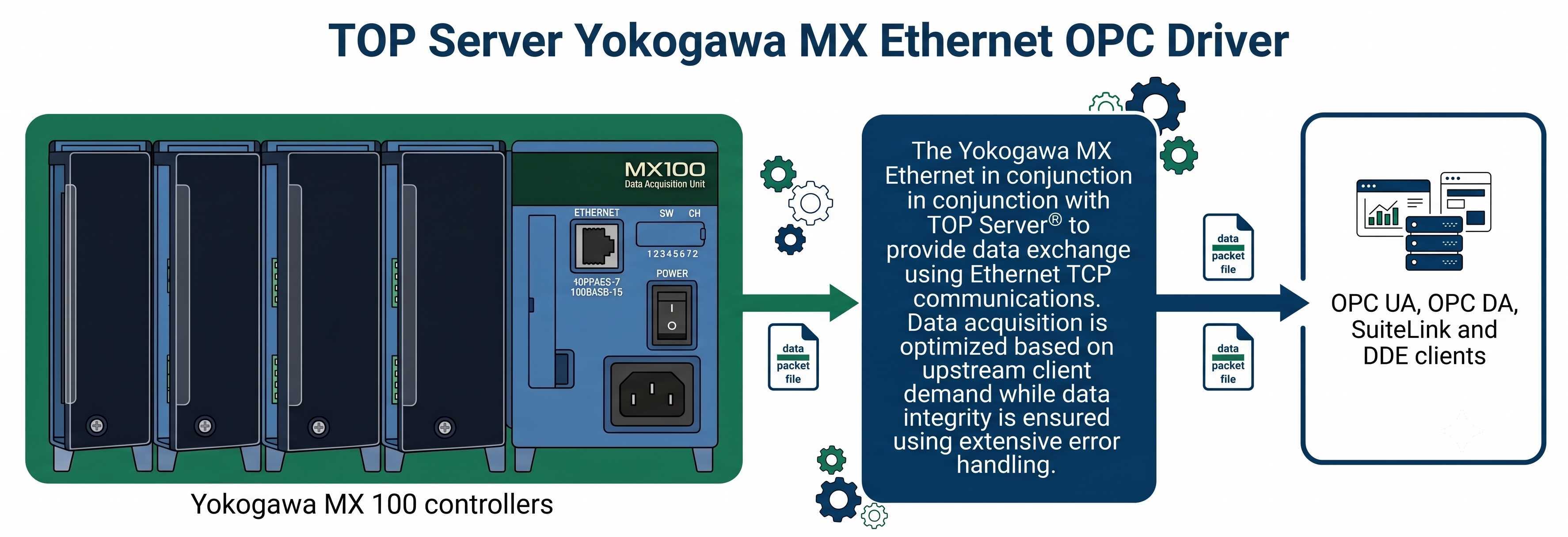

 The Yokogawa MX Ethernet driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Yokogawa MX 100 controllers using Ethernet TCP communications. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.

Why Choose This Driver?

Proven benefits for Yokogawa MX Ethernet connectivity

MX Series Connectivity

Purpose-built for Yokogawa MX series recorders and data acquisition systems

Process Data Access

Access real-time and logged process and measurement data

Historian Integration

Efficient data access for monitoring and historian applications

Multi-Device Support

Connect to multiple Yokogawa MX systems simultaneously

Flexible Addressing

Flexible addressing support for MX data structures

Industry Ready

Ideal for chemical processing, pharmaceutical, power generation, and water/wastewater

"The Software Toolbox support team was very helpful and provided lots of useful advice and links to help me solve my issue."

Dan Hutton

Automation Engineer

Key Features & Benefits

Everything you need for reliable Yokogawa MX Ethernet connectivity

Multi-Thread Architecture

Multi-threaded architecture for high scalability across channels

Runtime Configuration

Runtime configuration changes without restarting the server

Optimized Polling

Optimized polling based on client subscriptions for efficient data access

Auto-Demotion

Auto-demotion for slow or failed devices to maintain system performance

Communication Tuning

Configurable communication parameters, retry handling, and timeout configuration

Extensive Diagnostics

Built-in diagnostics including OPC diagnostics and event logging

Technical Specifications

Protocol

Yokogawa MX Ethernet

Network

Ethernet TCP/IP

Device Type

Yokogawa MX Series Recorders and Data Acquisition Systems

Communication Mode

Polled, optimized based on client subscriptions

Device Connections

Multiple simultaneous device connections

Client Interfaces

OPC UA, OPC DA, SuiteLink, DDE

License Type

Perpetual (via suite purchase)

Available Languages

English

Supported Devices

  • MX100

Note: Compatible with Yokogawa MX series data acquisition and recorder systems supporting Ethernet. Don't see your device listed? Contact us.

Protocols/Networks

  • Protocols: Yokogawa MX Data Acquisition Protocol
  • Networks: TCP/IP Ethernet

Note: Yokogawa MX Ethernet Supported Protocols / Networks

Resources & Documentation

Everything you need to get started, configure, and troubleshoot your driver

Yokogawa MX Ethernet Driver Help File

Complete driver documentation for Yokogawa MX Ethernet connectivity

Download →

TOP Server How-To Videos / Tutorials

Library of how-to videos covering installation, configuration, and troubleshooting

View →

TOP Server Application Notes

Support knowledge base with application notes and guides

View →

TOP Server Quick Start Guide

Quick start guide for TOP Server setup

View →

TOP Server Troubleshooting Guide

Comprehensive troubleshooting guide for common TOP Server issues

View →

Current/Past Release Notes

View the complete TOP Server release history and version information

View →
