Unsolicited Data Aggregation for Wellsite Equipment
This driver is only available as part of the following TOP Server driver suites:
Vendors Supported (Pason, NOV, Baker Hughes, Schlumberger)
Serial/Ethernet Networks (RS-232/422/485, Ethernet Encap.)
Client Interfaces (OPC UA/DA, SuiteLink, DDE)
WITS Level 0 Record Types Supported

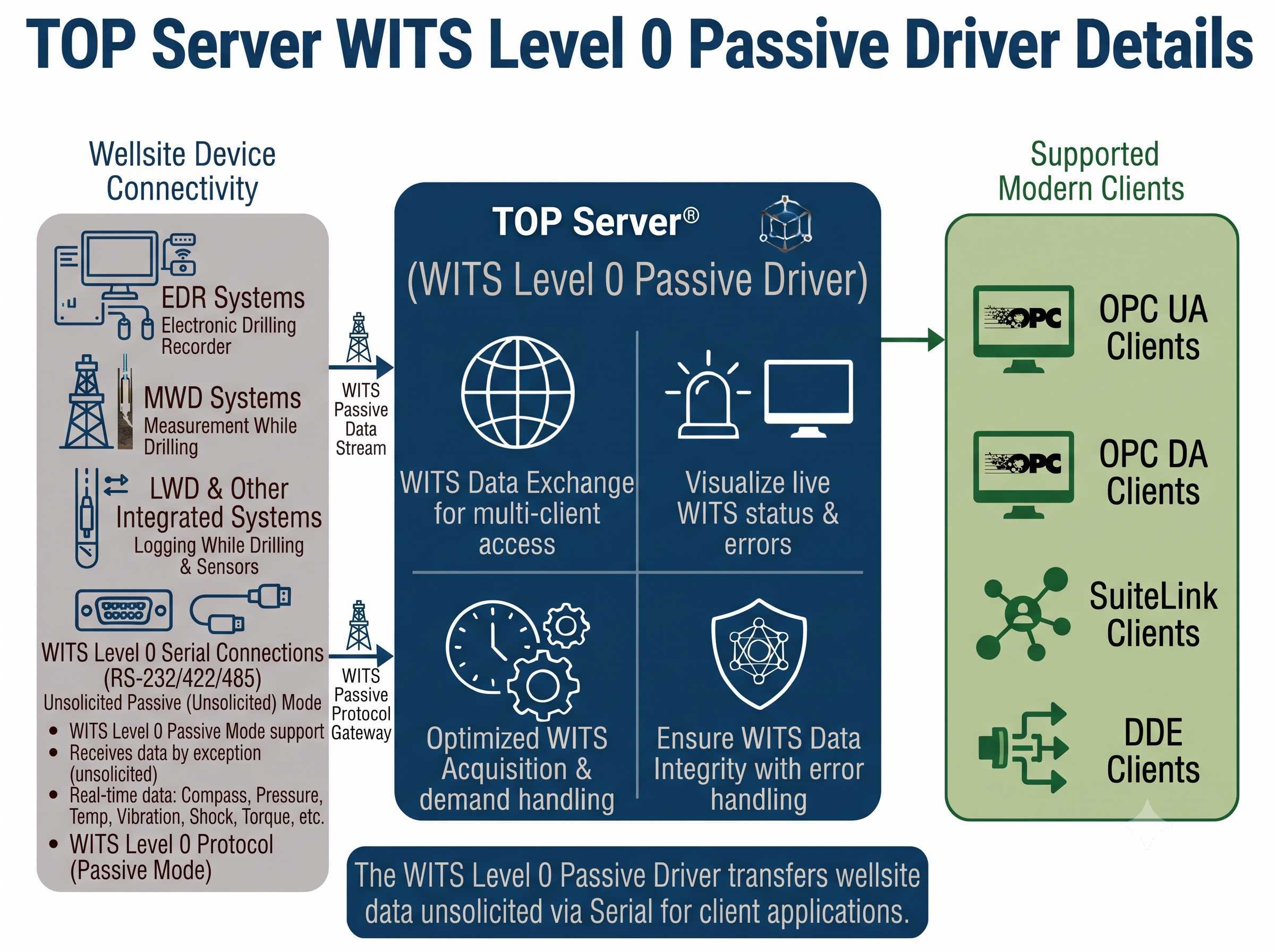

The TOP Server® WITS Level 0 Passive driver is used to transfer wellsite data from one computer system, such as a Measurement While Drilling (MWD) device, to HMI, SCADA, and OPC client applications without active polling. This facilitates real-time monitoring of data such as compass direction, borehole pressure, temperature, vibration, shock, torque and more, which is commonly required by exploration and production service and operating companies.
This unsolicited mode allows the server to receive data by exception from WITS devices without having to send requests for data to the devices. This driver provides connectivity to wellsite devices supporting the WITS (Wellsite Information Transfer Specification) Level 0 Passive protocol over Serial connections, including EDR, LWD, MWD, and other integrated systems in the oil & gas industry.
Proven benefits for WITS Level 0 passive wellsite connectivity
Passive communication model — equipment pushes data without being polled
Automatic Tag Database generation for plug-and-play ease of use
Compatible with 20+ wellsite equipment vendors including Pason, NOV, Baker Hughes, and Schlumberger
All WITS Level 0 record types supported for complete wellsite data access
Serial RS-232/422/485 and Ethernet Encapsulation support
Purpose-built for drilling operations and wellsite monitoring
