Ethernet connectivity to Toyopuc PLCs using the Computer Link protocol
This driver is only available as part of the following TOP Server driver suites:
Memory Types Supported
Ethernet Connectivity
Multi-Layer Link Support
Independent Program Areas

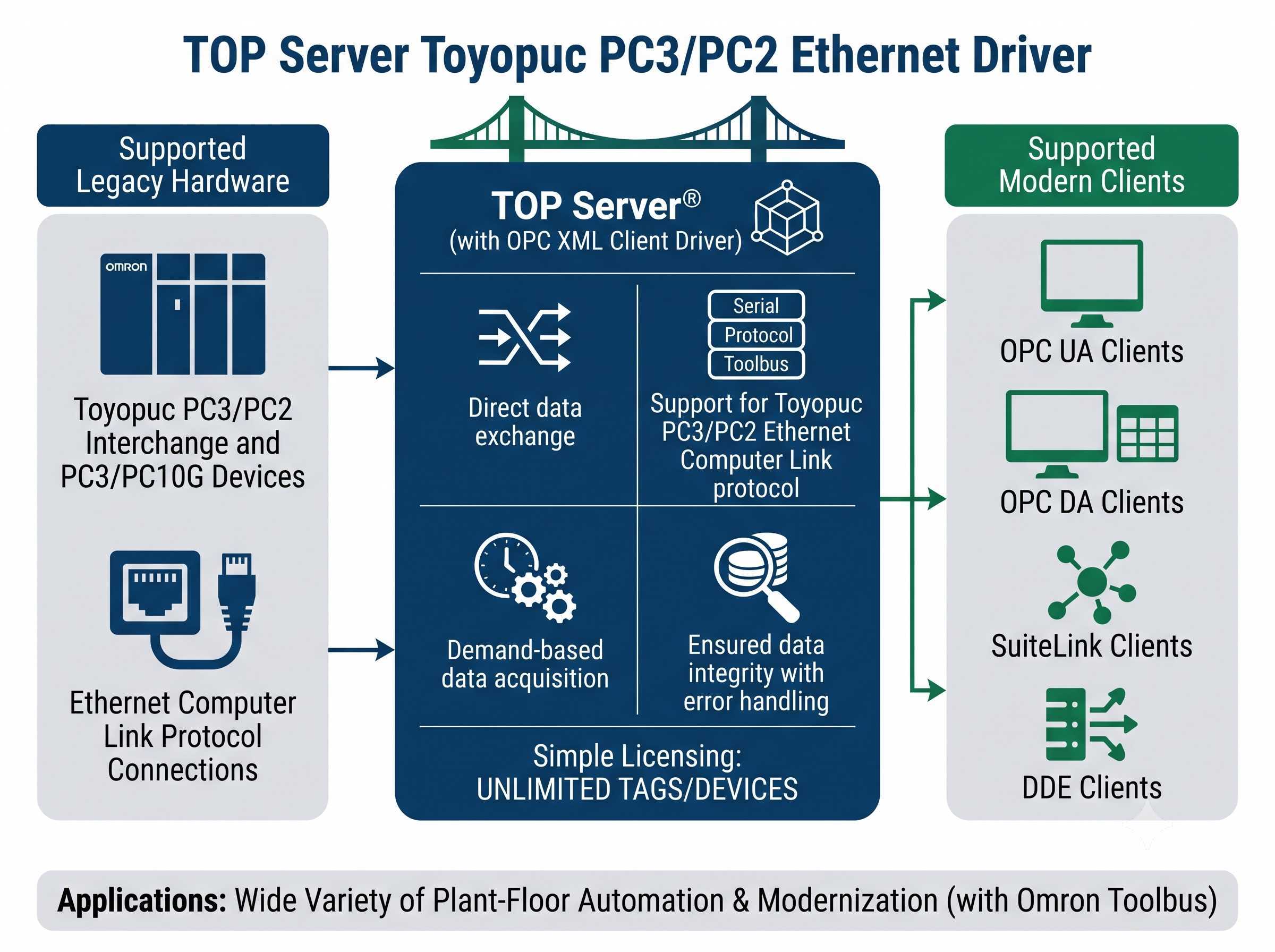

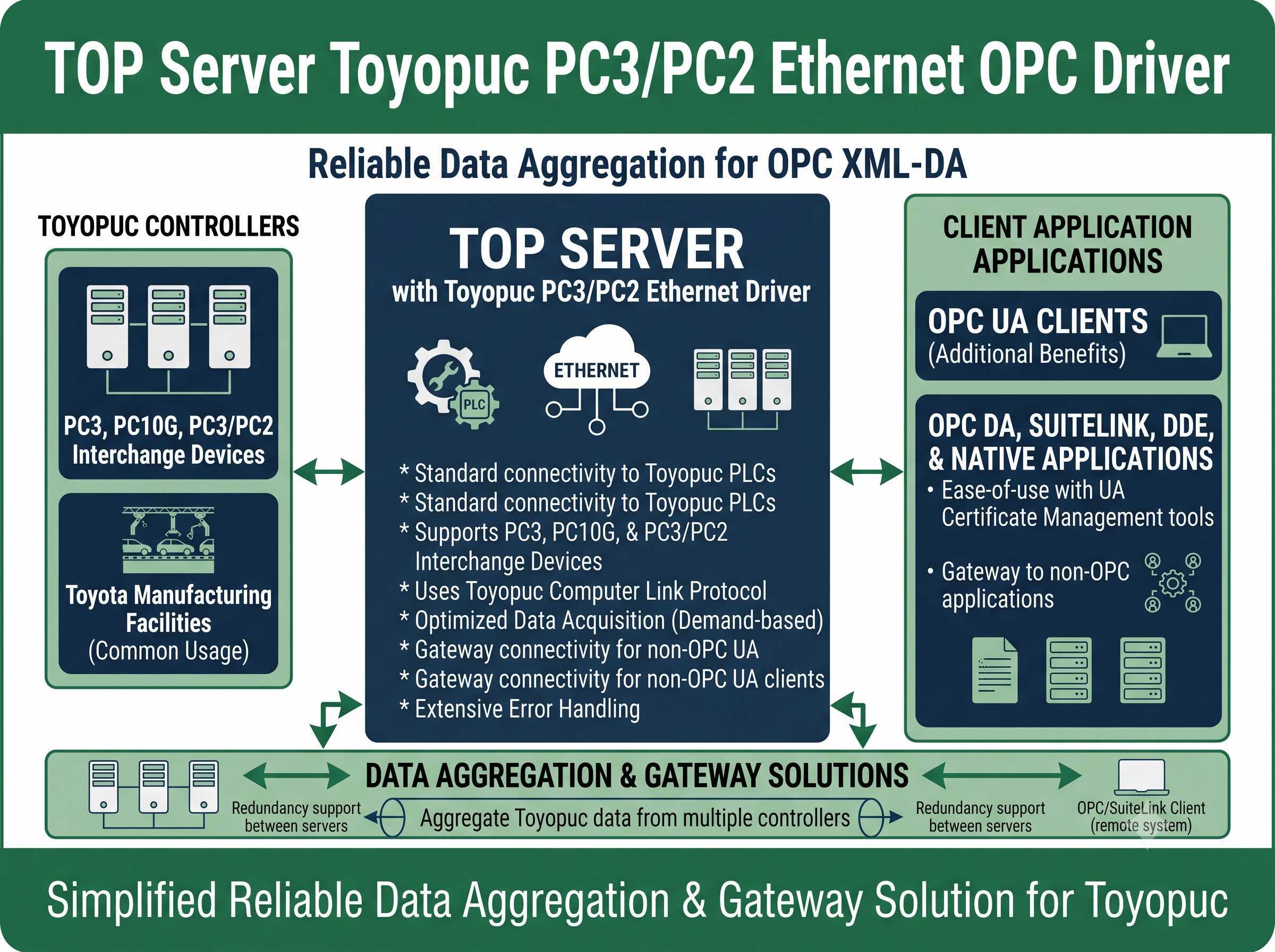

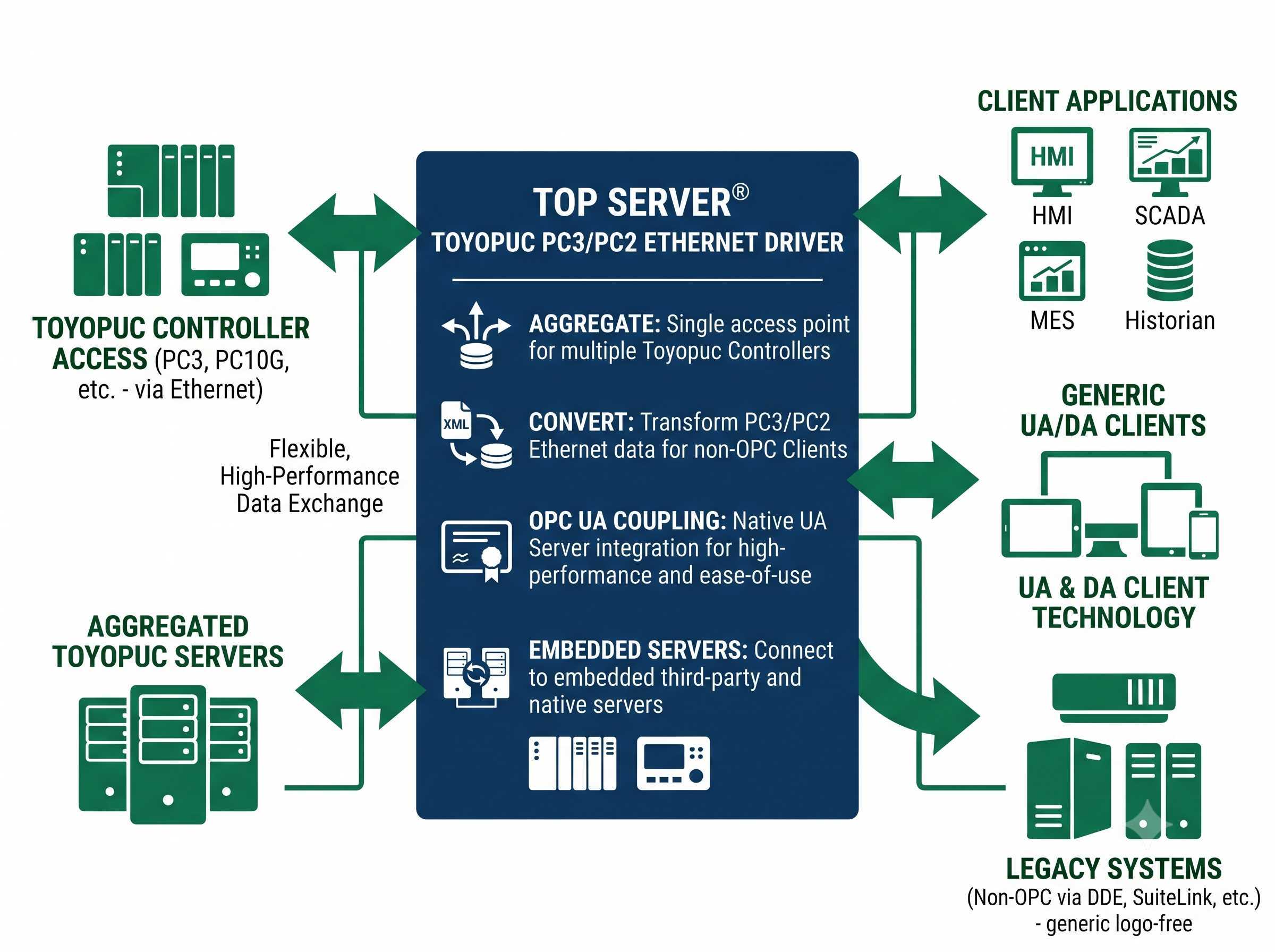

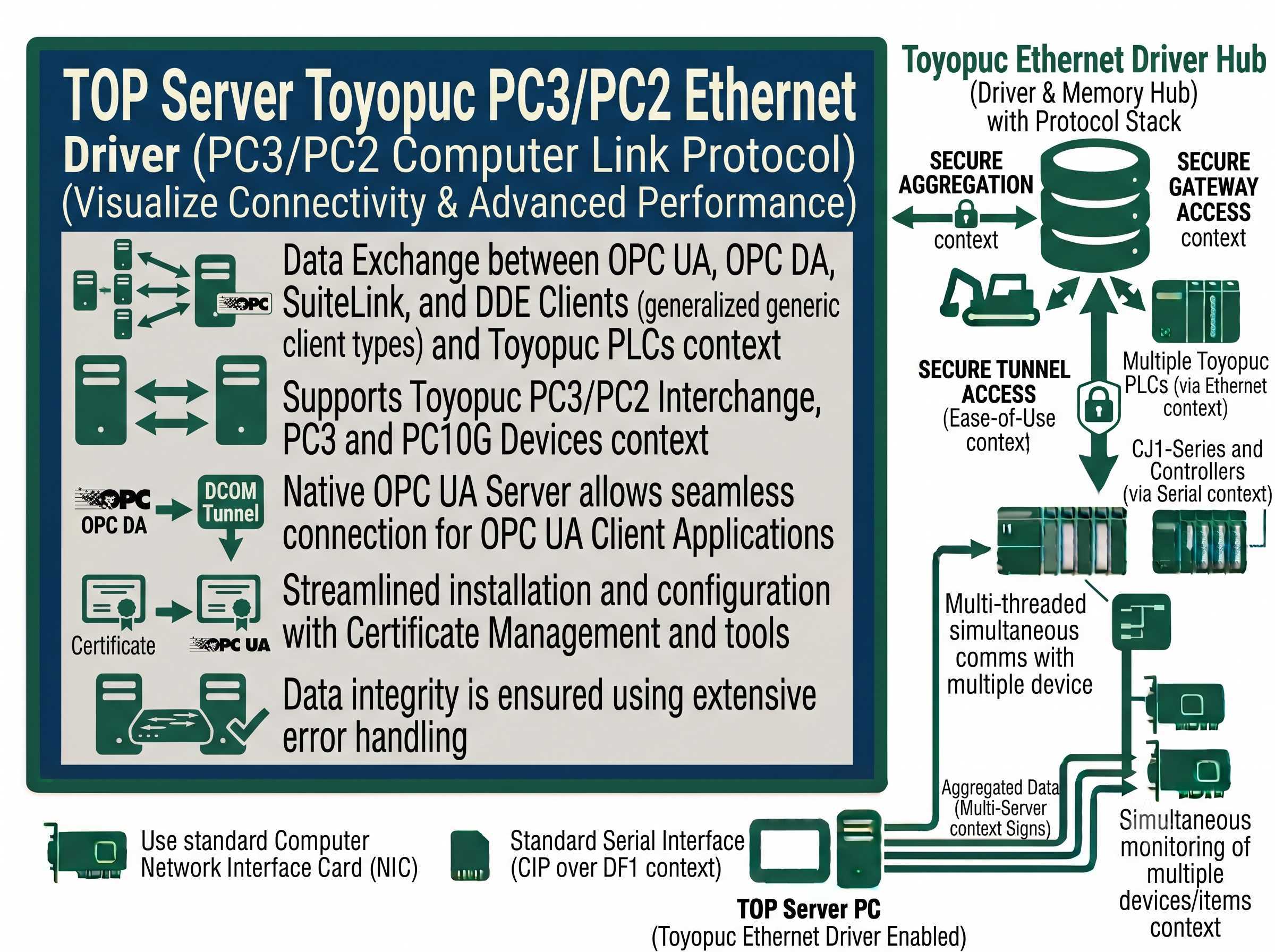

The Toyopuc PC3/PC2 Ethernet Driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Toyopuc PLCs using the PC3/PC2 Interchange, PC3 and PC10G devices and the Toyopuc PC3/PC2 Ethernet Computer Link Protocol. These PLCs are most commonly found in Toyota Manufacturing facilities.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits for Toyopuc Ethernet PLC connectivity
Supports 14 memory types: P, K, V, T, C, L, X, Y, M, S, N, R, D, B
Supports independent access to all three PLC program areas
Supports FL-net Multi-Layer Link Communications for advanced networking
Multi Point Random Read operation for faster data access
TCP/IP Ethernet connectivity for high throughput data acquisition
Designed for Toyopuc PLCs commonly found in Toyota Manufacturing facilities
"The Software Toolbox support team was very helpful and provided lots of useful advice and links to help me solve my issue."
Dan Hutton
Automation Engineer
Everything you need for reliable Toyopuc Ethernet connectivity
Multi threaded architecture for high scalability
Runtime changes via wizard-based configuration interface with intuitive Properties Editor
Secure user management for controlled access
Built-in device and network redundancy for high availability
Auto demotion for slow or unresponsive devices with configurable slow polling
Extensive communication and server diagnostics including OPC, communications, and event logging
Protocol
Toyopuc PC3/PC2 Ethernet Computer Link
Network
TCP/IP Ethernet
Supported Controllers
PC3/PC2 Interchange, PC3, PC10G, PC2 Series, Computer Link compatible devices
Memory Types
P, K, V, T, C, L, X, Y, M, S, N, R, D, B
Program Areas
Independent access to all three PLC program areas
FL-net
Supports FL-net Multi-Layer Link Communications
Ethernet Encapsulation
Supports serial protocols over Ethernet/Serial converters and terminal servers
Client Interfaces
OPC UA, OPC DA, SuiteLink, DDE
License Type
Perpetual
Note: Compatible with Toyopuc PLCs supporting the PC3/PC2 Ethernet Computer Link protocol. Commonly found in Toyota Manufacturing and automotive automation environments.
Note: Toyopuc PC3/PC2 Ethernet Supported Protocols / Networks
