TOP Server Simatic/TI 505 Serial OPC Driver Details
Reliable Connectivity for Siemens Simatic Controllers
The Simatic/TI 505 Serial driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Simatic/TI 505 devices using the Non-Intelligent Terminal Protocol (NITP) or Transparent Byte Protocol (TBP) protocol over Serial or Ethernet Gateway/Terminal Server connections. Data integrity is ensured using extensive error handling.
- Extensive memory type support
- Flexible addressing
- Extensive model support
- Learn more on this page
Simatic/TI 505 Serial
This driver is available in the following
TOP Server driver suites:
TOP Server Simatic / TI 505 Suite
TOP Server Manufacturing Suite
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
Simatic/TI 505 Serial Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 31
- COM Port Range - 1 to 999
- NOTE: Practical channel/device limits will vary depending on your available system resources
- Supports the following Memory Types: X, Y, WX, WY, C, V, K, STW, TCP, TCC, DSP, DSC, DCC, DTB, and DCP
- Supports zero or one-based bit addressing as well as configurable HiLo/LoHi bit order for V, K, and STW address types
- All data types supported
- Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
Standard Simatic/TI 505 Serial Features Include
- Supports the following Memory Types: X, Y, WX, WY, C, V, K, STW, TCP, TCC, DSP, DSC, DCC, DTB, and DCP
- All data types are supported
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
Simatic/TI 505 Serial Advanced Features Include

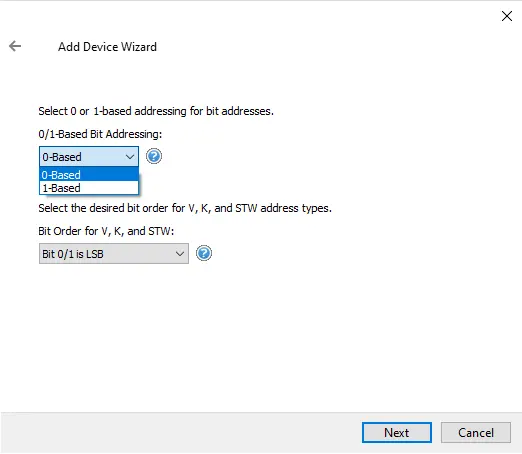

- Supports zero or one-based bit addressing
- Supports configurable HiLo/LoHi bit order for V, K, and STW address types
- Modem Support
- Automatic dial configuration
- Multiple phone number management
- Adjustable RTS Flow timing for Radio Modem communications
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers

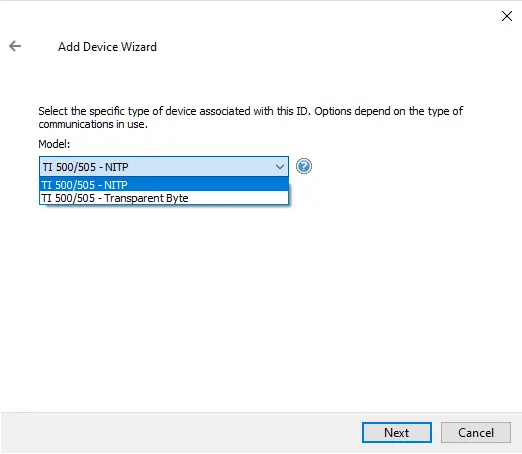

Simatic/TI 505 Serial Driver Supported Devices (Don't See Your Device Listed? Contact Us)
- CTI 2500 Series Processors
- TI 500/505 - NITP
- TI-500/505 - Transparent Byte
- TI-520 (TI520)
- TI-525 (TI525)
- TI-535 (TI535)
- TI-545 (TI545)
- TI-555 (TI555)
- TI-565 (TI565)
- TI-575 (TI575)
Simatic/TI 505 Serial Supported Protocols / Networks
- Protocols:
- Non-Intelligent Terminal Protocol (NITP)
- Transparent Byte Protocol (TB)
- Networks:
- Serial RS-232
- Serial RS-422
- Serial RS-485
- Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
