TOP Server Siemens S7 Server Ethernet OPC Driver Details
High-Performance Unsolicited Connectivity for S7 Family Controllers

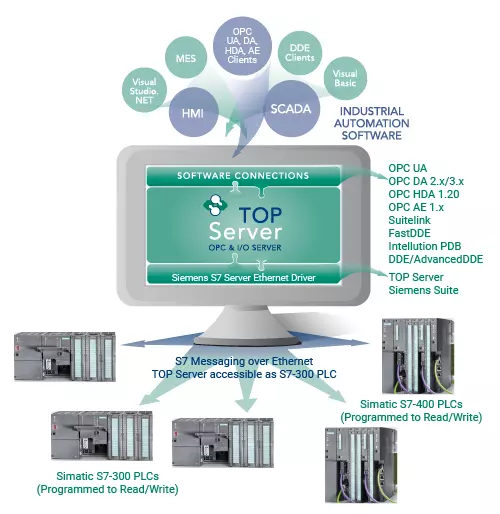

The Siemens S7 Server Ethernet driver makes the TOP Server look like an S7 controller. S7 PLCs can then connect to the TOP Server and exchange data, which the TOP Server then makes available to OPC UA, OPC DA, SuiteLink and DDE clients. Very creative solutions can be built using this methodology, such as making your HMI system look like it's an S7-PLC memory space.
This driver acts as a fully simulated Siemens S7-300 controller with up to 256 virtual devices supported. TOP Server eliminates the need for additional software packages or libraries by supporting direct communication with the S7 PLC using a standard PC network interface card
Siemens devices require specialized ladder programming to communicate with this driver as they think they are talking to an S7-300 memory space.
See Appendix: Configuring Connections Using the SIMATIC Manager in the Siemens S7 S Ethernet Help File.
Siemens S7 Server Ethernet
This driver is available in the following
TOP Server driver suites:
FEATURES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
Siemens S7 Server Ethernet Key Features Include

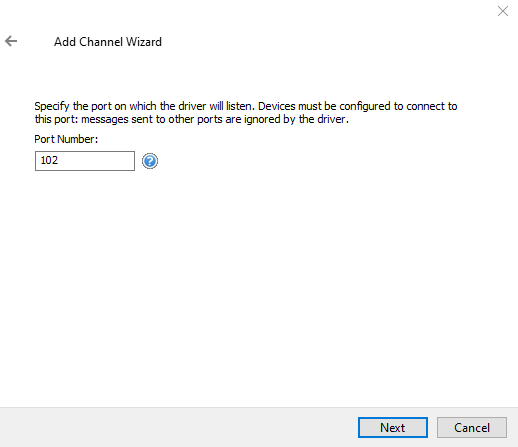

- Maximum Number of Channels & Devices:
- Channels - 1

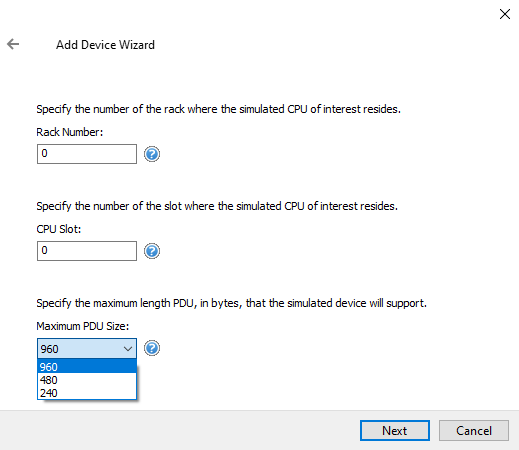

- Devices per Channel - 256 (Unique rack and slot required)
- Supports maximum Packet Data Unit (PDU) size configured on device for performance optimization
- Supports the SFB14-GET and SFB15-PUT commands
- Supports Float, Long Word, and BCD Data Types
- Supports Array Addressing
- Configurable Rack and Slot
Standard Siemens S7 Server Ethernet Features Include
- Direct Ethernet connections to S7 CPUs with Ethernet (Modular or Built-In)
- Automatic Tag Database Generation using CSV Import
- Tag configuration supports dynamic tags from your client application
- Memory Types Supported: I, E, Q, A, M, F, and Data Block Access
- Configurable Rack (0-7) and Slot (0-31)
- Uses standard Ethernet Network Interface Card for TCP/IP Communications
Siemens S7 Server Ethernet Driver Advanced Features Include
- Supports maximum Packet Data Unit (PDU) size configured on device for performance and efficiency
- Array Addressing Support
Siemens S7 Server Ethernet Supported Devices
- Simulated S7-300
For full details on models and networks supported, please consult the driver help file.
Siemens S7 Server Ethernet Supported Protocols / Networks
- Siemens TCP/IP Ethernet (S7 Messaging on Industrial Ethernet - ISO 8073 Class 0)
- TCP/IP Ethernet
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
