TOP Server Allen-Bradley (Rockwell) Micro800 Ethernet OPC Driver

High-performance connectivity for Allen-Bradley Micro800 series controllers over EtherNet/IP with CIP watchdog and native tag support.

4.8(189 reviews)

Available in Driver Suites

This driver is included in the following TOP Server driver suites:

TOP Server Allen-Bradley SuiteTOP Server Manufacturing Suite
Micro800

Native connectivity to Allen Bradley Micro800 controllers.

Ethernet IP

Reliable communication over Ethernet IP networks.

Tag Access

Direct tag-based data access for efficient integration.

Performance

Optimized data transfer for fast, reliable communications.

Product Overview

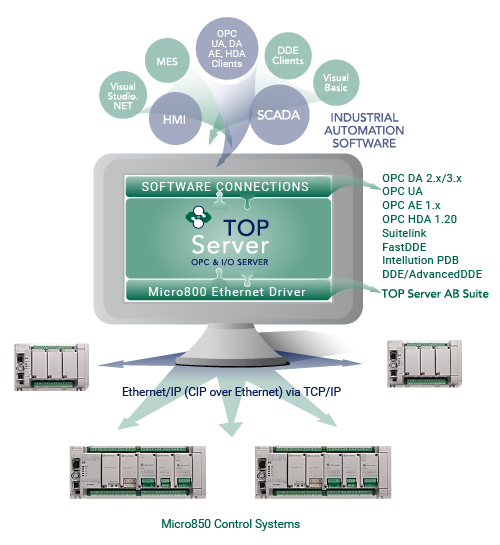

The Rockwell Allen-Bradley Micro800 Ethernet driver works in conjunction with TOP Server to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Allen-Bradley Micro800 series control systems using the Allen-Bradley Ethernet/IP (CIP) protocol.

Advanced features such as CIP watchdog, native/symbol tagnames and advanced addressing support allow the driver to integrate Micro800 series systems controlling a range of applications such as conveyors, cutting, material handling, sorting, packaging, solar panel positioning and vertical form/fill/seal. The Micro800 Ethernet driver is a multi-threaded high-performance driver for simultaneous communication with multiple channels with multiple PLCs using multiple channels.

This driver does not require a Rockwell Automation RSLinx license and is available in the following TOP Server driver suites: TOP Server Allen-Bradley Suite, TOP Server Manufacturing Suite.

Why Choose This Driver?

Proven benefits that help you deploy faster and operate more reliably

Tag Addressing

Supports native tag addressing, including global, program, and structure tags.

Advanced Tag Types

Supports user defined tags with substructure aliasing and numerous predefined types.

Array Performance

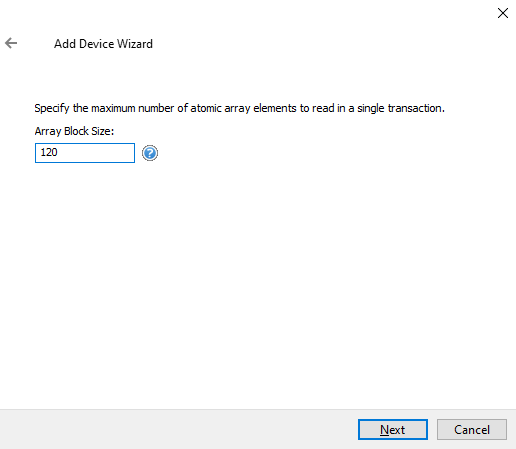

Array support for all atomic data types, with element blocking up to 3840 elements and optimized read and write operations.

Communication

Uses a standard Ethernet network interface card for TCP and IP communications.

"This driver is my go-to for anything Rockwell. Pair it with advanced tags and you have a powerhouse of convenience and adaptability."

Alfredo Moreno

Program Engineering Manager, E Tech Group

Key Features & Benefits

Everything you need for reliable industrial connectivity

Scalability

Supports up to 256 channels and 1024 devices per channel, with actual limits depending on system resources.

Advanced Features

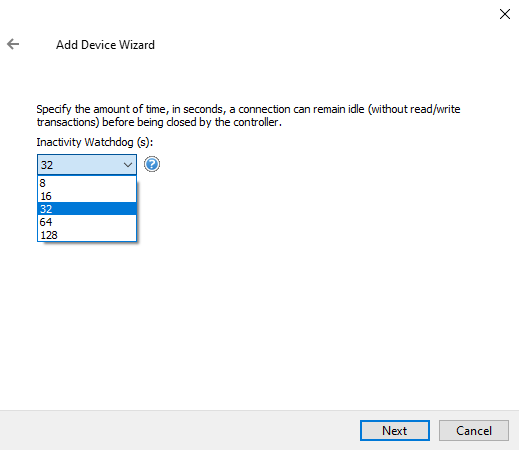

Includes support for CIP watchdog, project options, and data access configuration.

Performance Optimization

Supports UDT substructure aliasing and array element blocking to improve communication efficiency.

Technical Specifications

Supported Protocols

Supports Ethernet IP using CIP for industrial communication.

Network Connectivity

Supports TCP and IP Ethernet, including cellular modem connections.

Supported Devices

  • Allen-Bradley Micro850

Note: For full details on models and networks supported, visit the AB Suite Supported Devices page and consult the driver help file.
