TOP Server OPC XML-DA Client Driver Details
Reliable Data Aggregation for OPC XML-DA

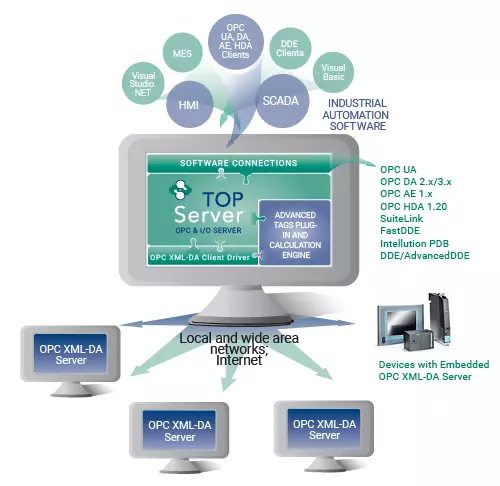

The TOP Server OPC XML-DA Client Driver enables connectivity to third-party OPC XML-DA Servers, including those embedded in controllers, such as Siemens Simotion systems. The OPC XML-DA Client Driver has the ability to aggregate information collected from multiple OPC XML-DA servers.
When coupled with the built-in, standard TOP Server OPC UA Server interface, users will enjoy additional ease-of-use benefits for connecting OPC UA client applications to OPC XML-DA Classic servers through the TOP Server OPC UA Certificate Management application and tools which enable quick and easy installation and configuration. Similarly, this driver can be used to convert OPC XML-DA to OPC DA.
OPC XML-DA Client
This driver is available in the following
TOP Server driver suites:
TOP Server Manufacturing Suite
FEATURES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
OPC XML-DA Client Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 128
- Devices per Channel - 256
- NOTE: Practical channel/device limits will vary depending on your available system resources
- Provides a single, reliable connection point to access data from multiple OPC XML-DA servers on local and remote machines
- Enables optimized performance of OPC XML-DA servers
- Supports connection monitoring and reconnect behavior for each OPC XML-DA server
- Allows connectivity to multiple OPC XML-DA servers from clients that do not support multiple connections or handle multiple connections well
Standard OPC XML-DA Client Features Include
- Connect to Third Party OPC XML-DA Servers or OPC XML-DA capable devices
- Integrate OPC XML-DA Server information through the TOP Server Namespace
- Translate OPC XML-DA Server data to any supported TOP Server Client Interfaces
- HTTPS Security / SSL Encryption

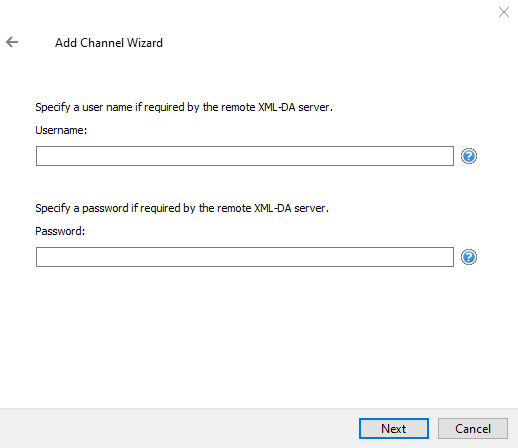

- User and Password Endpoint Authentication
- Configurable Port
- Simultaneous connections to multiple servers
OPC XML-DA Client Driver Advanced Features Include
- Automatic Tag Database Generation
- OPC XML-DA Server Keep Alive Setting
- Configurable Update Rate

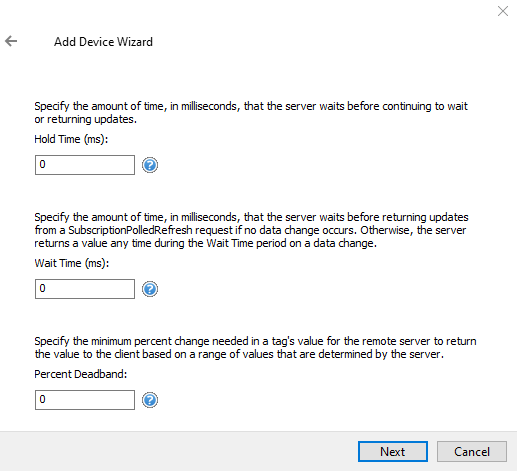

- Configurable Hold Time
- Configurable Wait Time

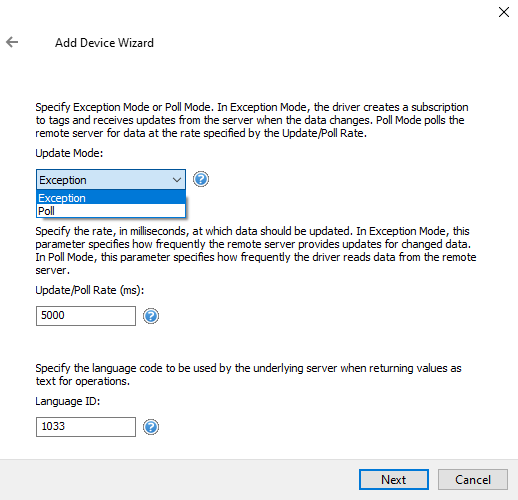

- Data Updates via Exception or Polling
- Deadband Control (Percent)

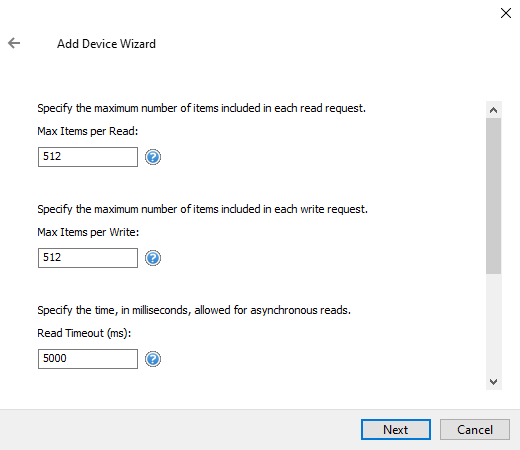

- Configurable read and write request size
- Configurable read and write timeout
- Array support for all data types
OPC XML-DA Client Supported Devices
- Any OPC XML-DA Classic Server
OPC XML-DA Client Supported Protocols / Networks
- OPC XML-DA Classic
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
