OPC UA, OPC DA Driver for integrating Mitsubishi A, AnA & Q Series PLCs
This driver is only available as part of the following TOP Server driver suites:
Channels (32 Devices Each)
Serial Networks (RS-232/422/485)
Protocol Formats (Format 1 & 5)
COM Port Range

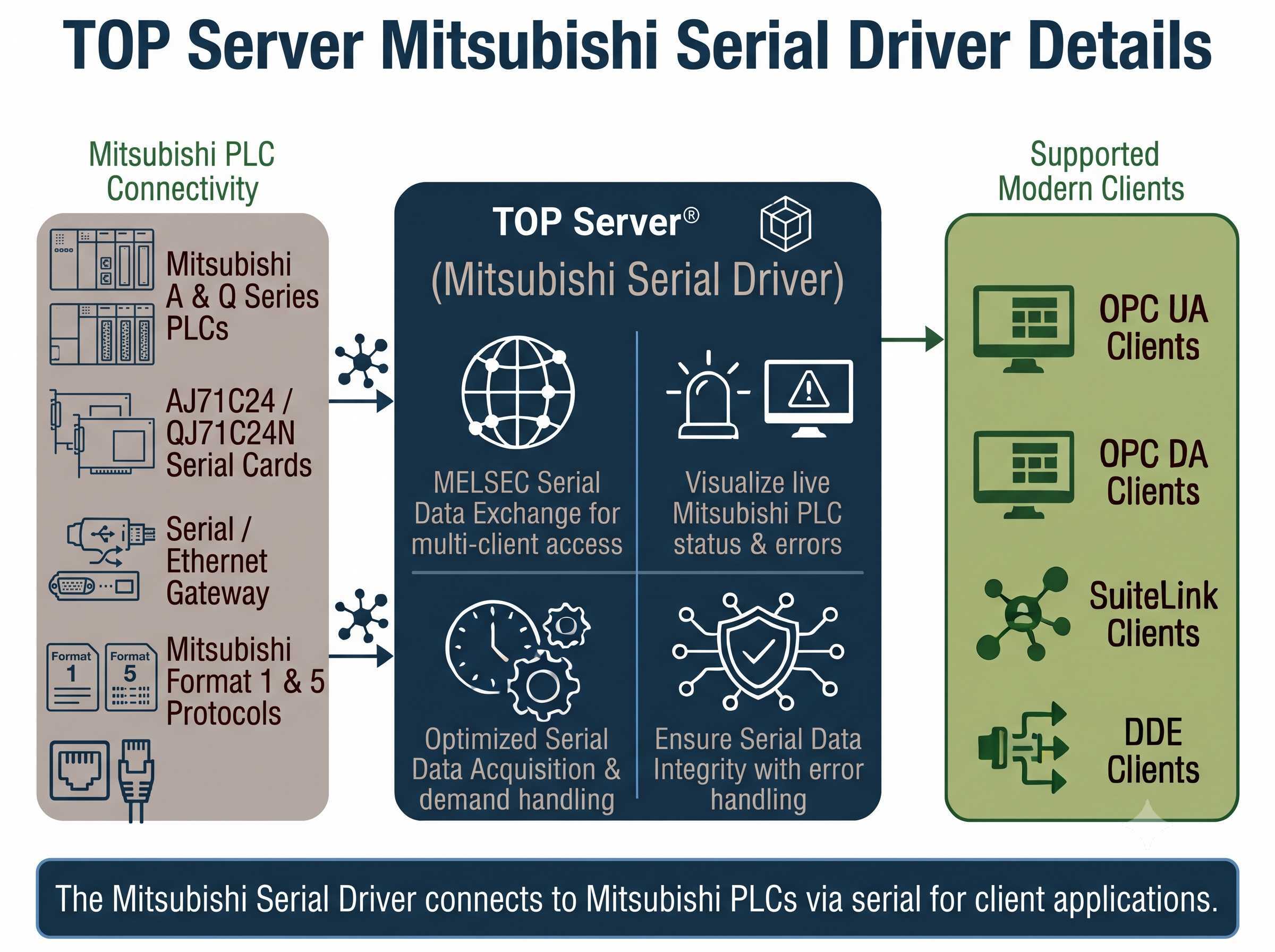

This Mitsubishi driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Mitsubishi A & Q Series PLCs connected via the AJ71C24 or QJ71C24N serial communications cards and if desired, serial-to-Ethernet convertors or gateways. This driver supports communication with devices using the Mitsubishi Format 1 and Format 5 protocol over Serial or Ethernet Gateway/Terminal Server connections. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits for Mitsubishi PLC serial connectivity
RS-232, RS-422, and RS-485 serial connections for any installation
Supports A Series and Q Series PLCs with appropriate serial protocols
Serial over Ethernet via converters, device servers, or terminal servers
Automatic dial configuration and multiple phone number management
Efficient block read operations for optimized data transfer
Ideal for MES, SCADA, production monitoring, and smart manufacturing
"The Software Toolbox support team was very helpful and provided lots of useful advice and links to help me solve my issue."
Dan Hutton
Automation Engineer
Everything you need for reliable Mitsubishi PLC serial connectivity
Mitsubishi Format 1 for A Series PLCs and Format 5 for Q Series PLCs
Supports block read operations for efficient, optimized data transfer
Automatic dial configuration and multiple phone number management
Serial protocols over Ethernet/Serial converters, device servers, or terminal servers
Multi-threaded architecture for high scalability across channels
Extensive communication and server diagnostics including OPC, communications, and event logging
Protocols
Mitsubishi Format 1 (A Series), Format 5 (Q Series)
Network
Serial RS-232, RS-422, RS-485, Ethernet Encapsulated Serial
Max Channels
100 channels, 32 devices per channel
PLC Series
A Series (via AJ71C24), Q Series (via QJ71C24N)
COM Port Range
1 to 999 (practical limits depend on system resources)
Data Transfer
Block read support for optimized throughput
Client Interfaces
OPC UA, OPC DA, SuiteLink, DDE
License Type
Perpetual (via suite purchase)
Note: Compatible with Mitsubishi PLCs supporting serial communication protocols. Don't see your device listed? Contact us.
Note: Mitsubishi Serial Supported Protocols / Networks
