Reliable Connectivity for Mitsubishi FX Controllers Programming Port
This driver is only available as part of the following TOP Server driver suites:
Channels (100 Devices Each)
FX Series Supported (FX/FX0/FX0N/FX2N/FX3U)
Memory Types Supported
Direct Programming Port

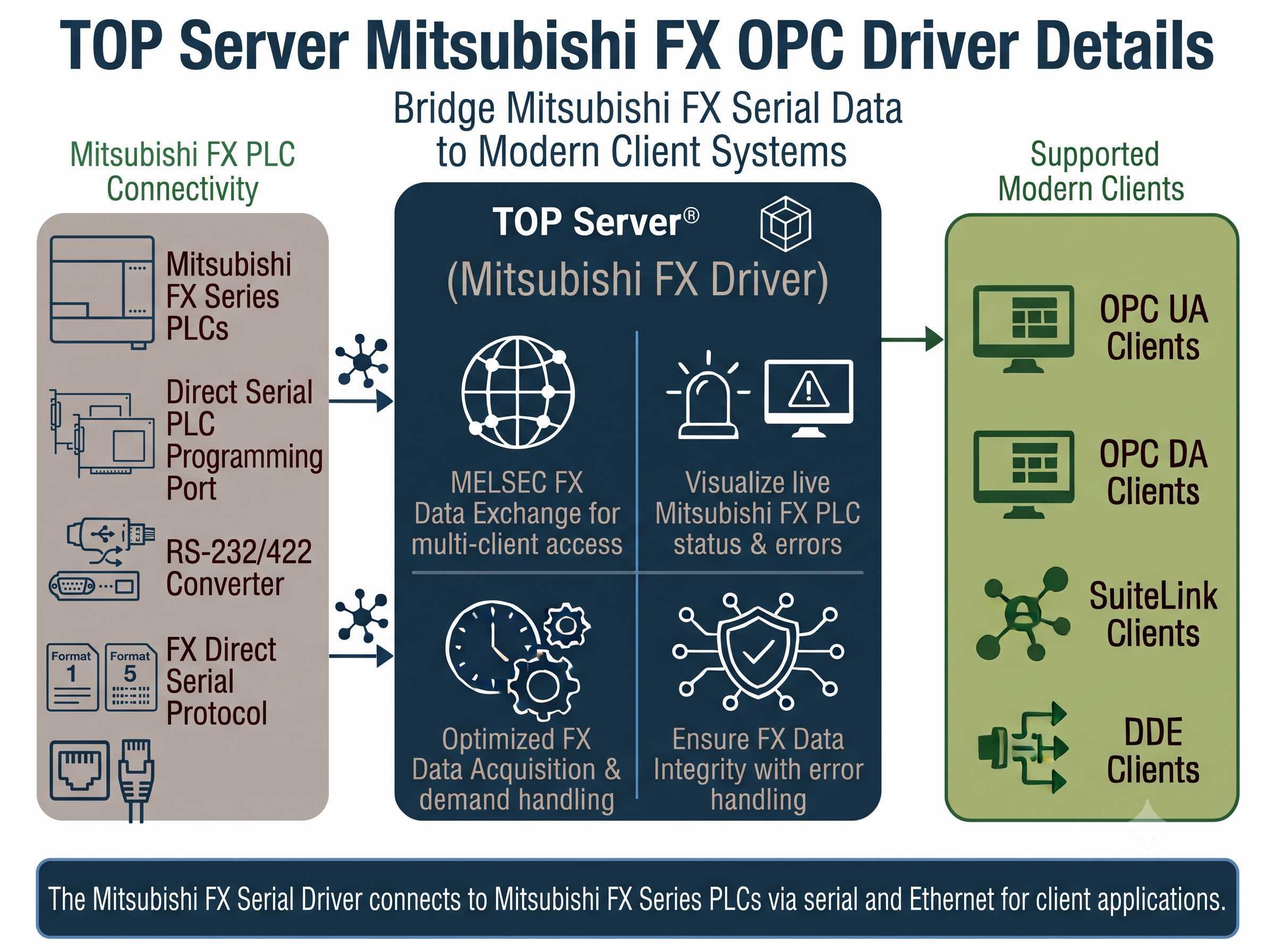

The Mitsubishi FX Serial driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Mitsubishi FX Series PLCs via direct or point to point serial connections as well as Ethernet Gateways/Terminal Servers.

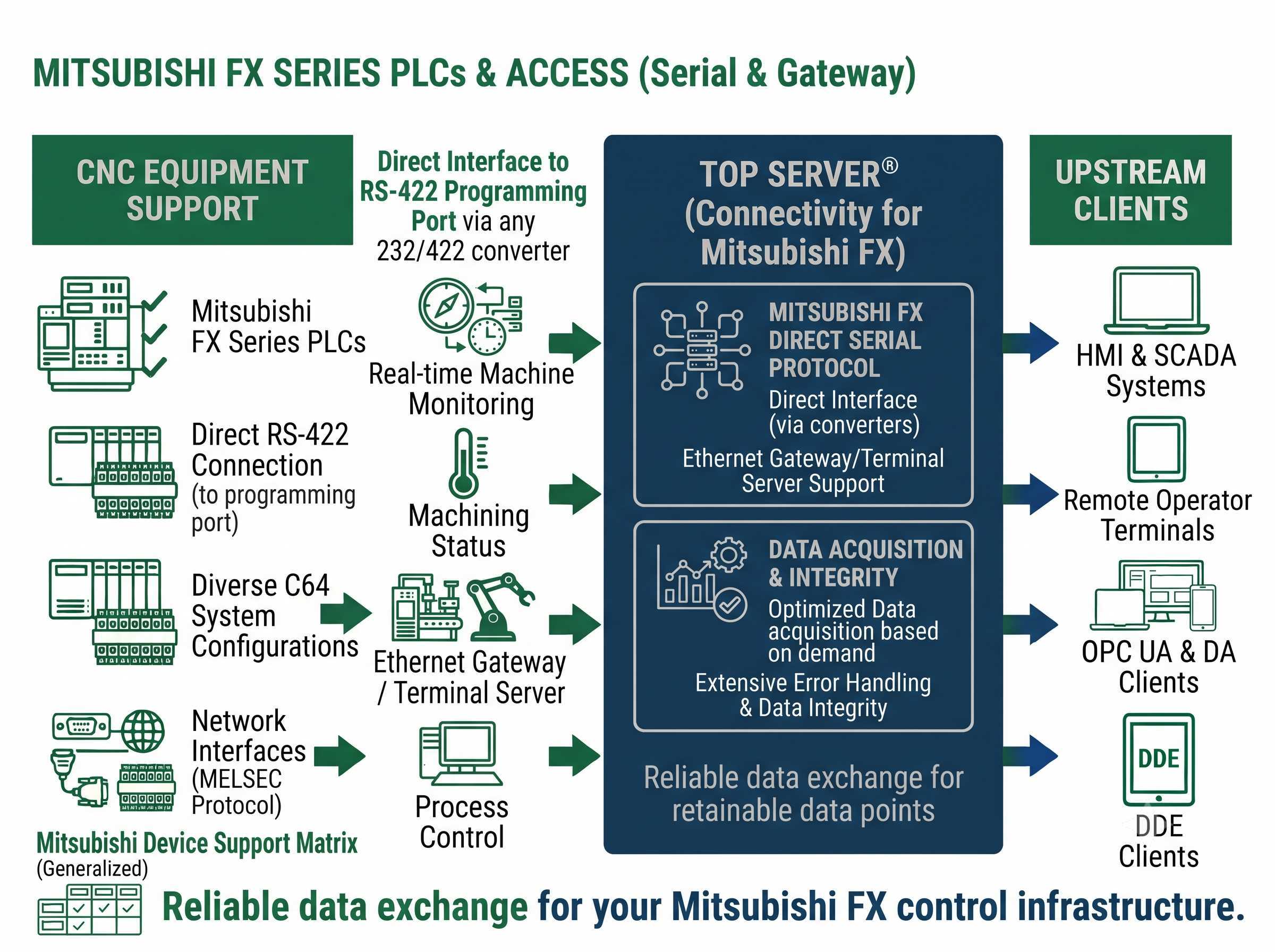

This driver supports communication with devices using the Mitsubishi FX Direct Serial protocol through direct Interface to the RS-422 PLC programming port via any 232/422 convertor.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits for Mitsubishi FX Series PLC connectivity
Connect directly to the PLC programming port — no additional cards required
Point-to-point serial connection for straightforward installation
Purpose-built for FX, FX0, FX0N, FX2N, and FX3U PLCs
Access 11+ memory types including FX3U R memory type
Serial over Ethernet via converters for remote installations
Ideal for MES, SCADA, production monitoring, and smart manufacturing
