TOP Server Mitsubishi Ethernet OPC Driver Details

Mitsubishi Ethernet Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 256
  • Devices per Channel - 255
  • NOTE: Practical channel/device limits will vary depending on your available system resources
• PC number support for network bridging
• Addressable station numbers up to 120 plus 125 and 126
• Uses AJ71E71 family of communications cards
• Supports the following Memory Types: CC, X, Y, M, B, L, F, TS, TC, TN, CS, CT, CN, D, W, R
• Supports the following Q-specific Memory Types: DX, DY, SB, SM, V, SS, SC, SN, SD, SW, Z
• All data types are supported
• Configurable read/write block sizes

Standard Mitsubishi Ethernet Features Include

• Supports the following Memory Types: CC, X, Y, M, B, L, F, TS, TC, TN, CS, CT, CN, D, W, R
• Supports the following Q-specific Memory Types: DX, DY, SB, SM, V, SS, SC, SN, SD, SW, Z
• Memory Type CN Support for "L" Suffix - Specifies Long Data Type
• Memory Type ZR Support (Q Series Only)
• Support for Extended Data Registers (Q Series Only)
• Support for Extended Link Registers (Q Series Only)
• All data types are supported
• String support for W-Link registers included
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability

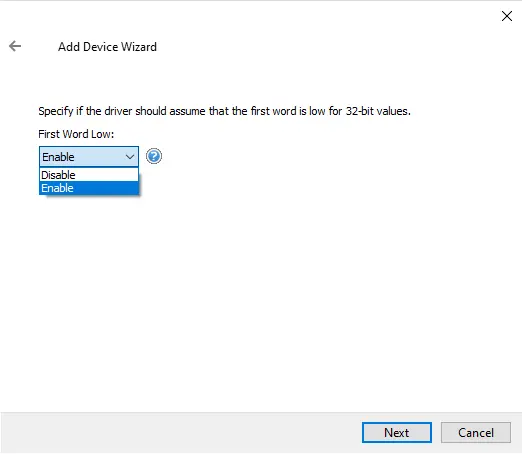

  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

Mitsubishi Ethernet Advanced Features Include

• Remote access to Net/H networks via bridging through a Q series PLC
• Supports synchronizing PLC clock to the PC clock functions
• Supports Random Writes on some models for multiple writes per request increasing write performance

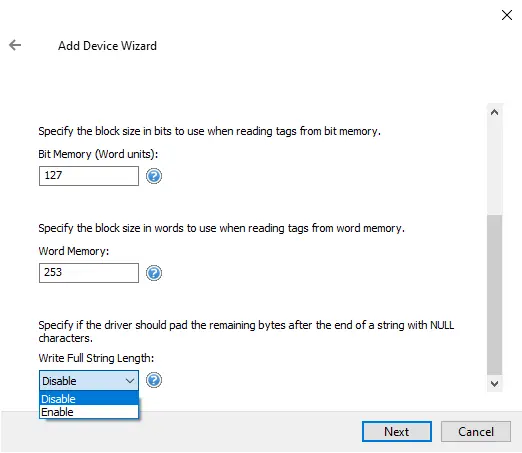

• Configurable read/write block sizes to enable increased read/write performance
• Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
• User-selectable socket connection termination on device response timeout
• Specify a Network Interface Card at the channel level (Details)

Mitsubishi Ethernet Supported Devices (Don't See Your Device Listed?  Contact Us)

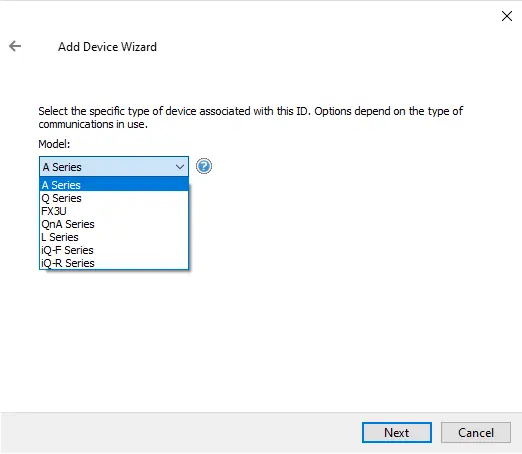

• All A Series and Q (Q mode) Series PLCs
• FX3U
• Mitsubishi iQ-F Series CPUs
• Mitsubishi iQ-R Series CPUs
• Mitsubishi L Series
• Mitsubishi QnA Series
• Keyence KV Series PLCs (Click for Details)

Mitsubishi Ethernet Supported Protocols / Networks

• Protocols:
  • MELSEC
• Networks:

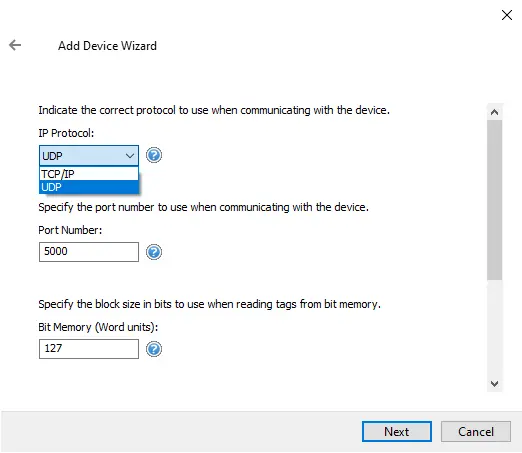

  • TCP/IP Ethernet
  • UDP Ethernet

Videos / Guides / App Notes to Help You Get Started

To insure you get the most from your investment in TOP Server^®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.

• TOP Server Mitsubishi Ethernet Driver Quick Start Video
• TOP Server How-To Videos / Tutorials
• TOP Server How-To Application Notes
• TOP Server Quick Start Guide
• TOP Server Troubleshooting Guide

Driver Help Files / Release Notes

Use the below links to access TOP Server release history and driver help documentation.

• Click for Current/Past Release Notes
• Mitsubishi Ethernet Help File

Access use cases, how-tos and more

Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.

TOP Server Specific Blog Posts

Overall Software Toolbox Blog Posts

Subscribe to Blog

Additional Useful Resources

Access additional TOP Server related information below not covered in other sections:

• TOP Server Operating System Support Information
• Looking for Mitsubishi Hardware?
