Mitsubishi Ethernet Driver, OPC UA, OPC DA, Suitelink Driver
This driver is only available as part of the following TOP Server driver suites:
Channels (255 Devices Each)
PLC Series (A, ANA, Q, QnA, L, iQ-R, iQ-F)
Memory Types Supported
Native Protocol (TCP/UDP)

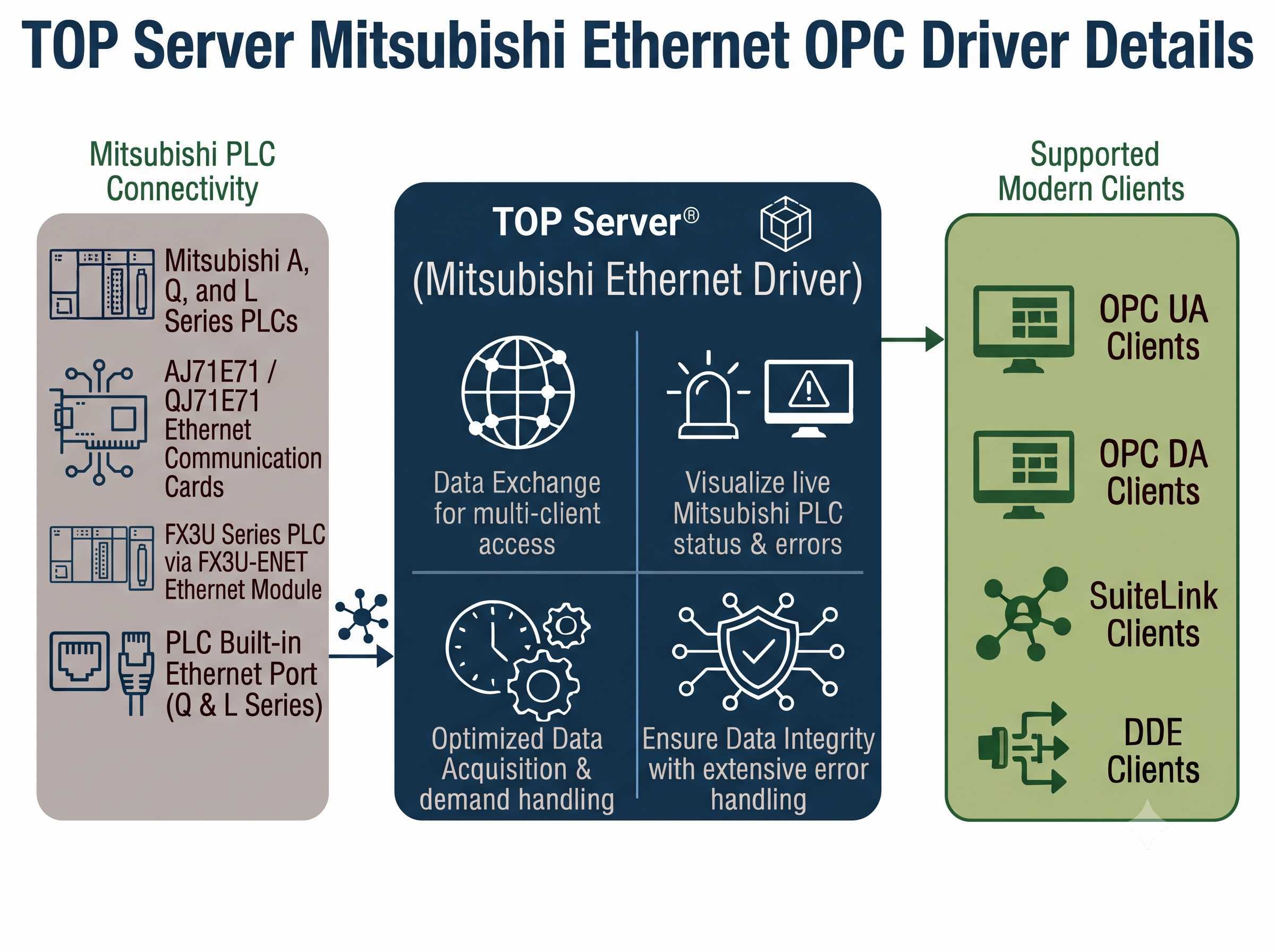

The Mitsubishi Ethernet driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Mitsubishi A and Q Series PLCs connected via the AJ71E71 or QJ71E71 family of communication cards.
The PLC built-in Ethernet Port is supported for Q and L Series devices. This driver also supports the FX3U series PLC via the FX3U-ENET Ethernet module. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits for Mitsubishi PLC Ethernet connectivity
Fast Ethernet TCP/IP connectivity eliminates serial bottlenecks
Up to 256 channels with 255 devices per channel for large installations
Supports A, ANA, Q, QnA, L Series, iQ-R, and iQ-F PLCs
Access 18+ memory types including both common and Q-specific registers
Efficient block read operations for optimized data transfer
Ideal for MES, SCADA, production monitoring, and smart manufacturing
"The Software Toolbox support team was very helpful and provided lots of useful advice and links to help me solve my issue."
Dan Hutton
Automation Engineer
Everything you need for reliable Mitsubishi PLC Ethernet connectivity
Communicates using MELSEC protocol over Ethernet TCP/IP for reliable data exchange
Supports CC, X, Y, M, B, L, F, TS, TC, TN, CS, CT, CN, D, W, R plus Q-specific DX, DY, SB, SM, V, SS, SC, SN, SD, SW, Z
Supports block read for efficient, optimized data transfer from PLCs
Supports both binary and ASCII communication modes for flexibility
Multi-threaded architecture for high scalability across channels
Extensive communication and server diagnostics including OPC, communications, and event logging
Protocol
MELSEC (Mitsubishi Electric)
Network
Ethernet TCP/IP
Max Channels
256 channels, 255 devices per channel
PLC Series
A, ANA, Q, QnA, L, iQ-R, iQ-F Series
Communication Cards
AJ71E71 (A Series), QJ71E71 (Q Series), built-in Ethernet
Memory Types
CC, X, Y, M, B, L, F, TS, TC, TN, CS, CT, CN, D, W, R, DX, DY, SB, SM, V, SS, SC, SN, SD, SW, Z
Client Interfaces
OPC UA, OPC DA, SuiteLink, DDE
License Type
Perpetual (via suite purchase)
Note: Compatible with Mitsubishi PLCs supporting the MELSEC Ethernet protocol. Don't see your device listed? Contact us.
Note: Mitsubishi Ethernet Supported Protocols / Networks
