High-performance connectivity for Focas HSSB CNC systems
This driver is only available as part of the following TOP Server driver suites:
Channels (20 Devices Each)
Focas Libraries (1 & 2)
CNC Series Supported
High-Speed Serial Bus

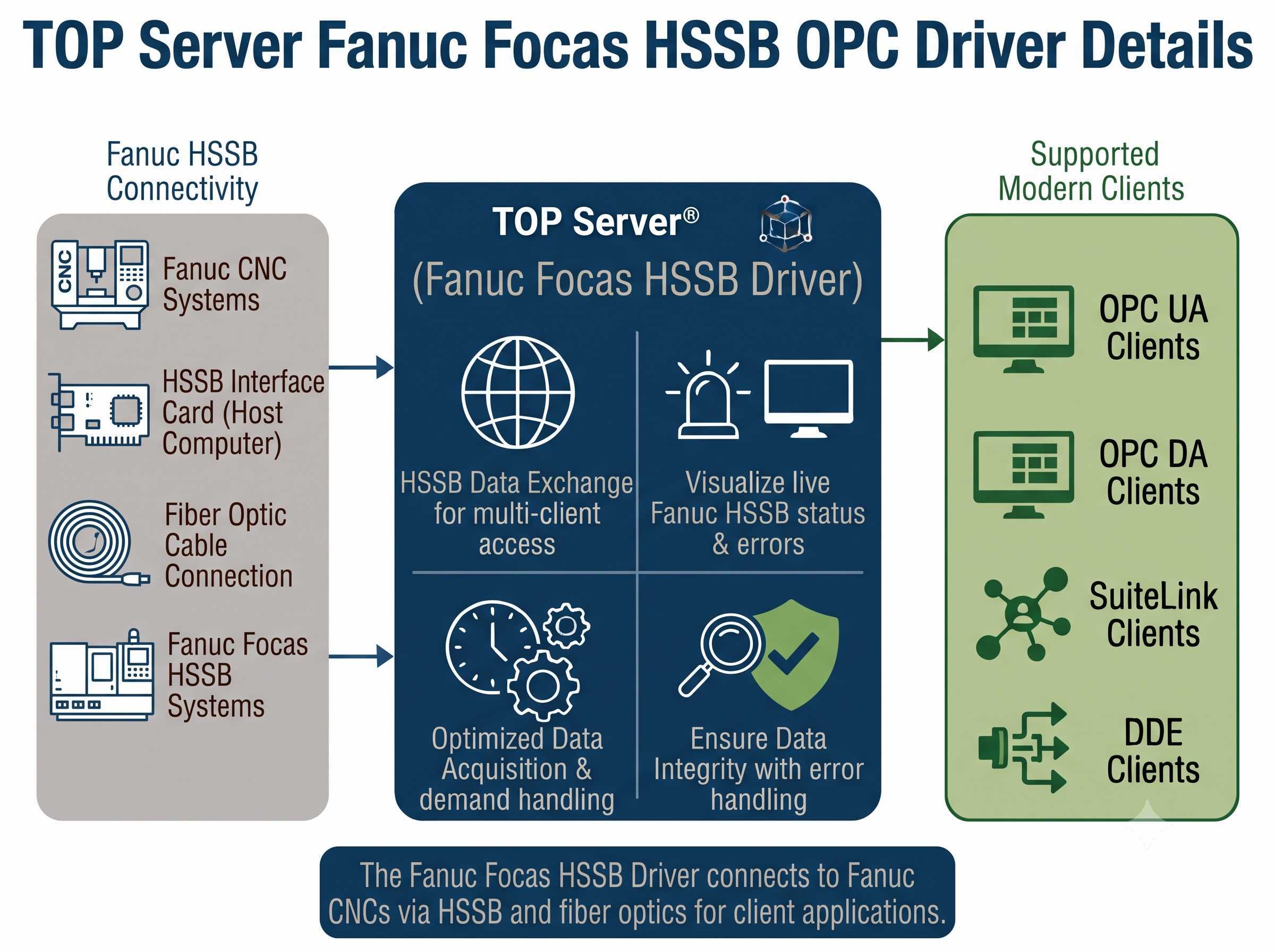

The Fanuc Focas HSSB Driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Fanuc Focas High-Speed Serial Bus (HSSB) Computer Numerical Control (CNC) systems via an HSSB interface card installed in the host computer and connected to the controller with the appropriate fiber optic cable. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Note: This driver uses and requires either the Focas 1 or the Focas 2 interface libraries that are available from FANUC America Corporation. (The Focas2 Library combines both Ethernet and HSSB capabilities.) Although it is not required that the library is installed in order to create a server project, the project will not run without it. This software may be obtained from a FANUC distributor, or by calling 1-888-FANUC-US (1-888-326-8287).
Proven benefits for Fanuc CNC HSSB connectivity
HSSB interface provides high-speed direct connectivity via fiber optic cable
Monitor CNC status and performance in real-time
Access NC parameters, timers, alarms, programs, axis data, and system info
Supports the PMC data area of the i series CNC controllers
Multiple channels per HSSB interface card maximize throughput
Ideal for MES, production monitoring, OEE, and predictive maintenance initiatives
"The Software Toolbox support team was very helpful and provided lots of useful advice and links to help me solve my issue."
Dan Hutton
Automation Engineer
Everything you need for reliable Fanuc CNC HSSB connectivity
Supports cnc_rdparam, cnc_rdtimer, cnc_rdalmmsg, cnc_rdprgnum, cnc_alarm2, cnc_diagnoss, cnc_rdaxisdata, cnc_setpath, cnc_getpath, and cnc_sysinfo
Supports the PMC data area of the i series CNC controllers
Multiple channels per HSSB interface card maximize throughput
Configurable request size to optimize communication with device
Open Addressing for flexible data access to CNC controllers
Extensive communication and server diagnostics including OPC, communications, and event logging
Protocol
Fanuc FOCAS HSSB (High-Speed Serial Bus)
Network
HSSB via fiber optic cable and HSSB interface card
Max Channels
100 channels, 20 devices per channel
Libraries
Focas 1, Focas 2 (A02B-0207-K737)
Data Types
NC Parameters, Timers, Alarms, Program data, Axis data, System info, PMC data
Communication Mode
Polled via HSSB interface card
Client Interfaces
OPC UA, OPC DA, SuiteLink, DDE
License Type
Perpetual (via suite purchase)
Note: Compatible with Fanuc CNC controllers supporting the FOCAS HSSB protocol. Don't see your device listed? Contact us.
Note: Fanuc Focas HSSB Supported Protocols / Networks
