If you need history retrieval from an Emerson FB Automation Platform device via DNP3, the standard for that device, we offer that through our EFM Exporter for Emerson FB Automation Platform, which our team can quote you along with our TOP Server DNP3 driver suite.

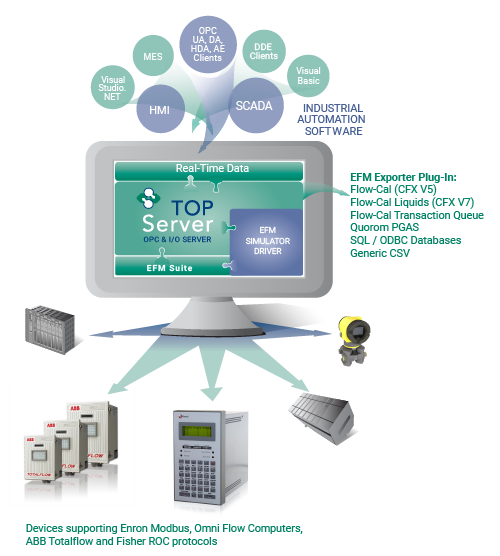

Key TOP Server EFM (Electronic Flow Measurement) Suite Features Include

  • Seamless connectivity to flow computers, RTUs, meters and other widely used oil and gas equipment from any number of manufacturers via supported standards in a common communications layer - for a full list of included drivers and suites just click on the Drivers Included section below.
  • Supports common open standards including Enron Modbus, Modbus TCP, ROC, ROC+, ABB DB1 / DB2,  OMNI Flow Modbus and more.
  • Extensive real-time data connectivity for most software applications including HMI, SCADA, MES, and ERP, as well as, database applications (such as SQL, Access, and Oracle)
  • Supports EFM export to Flow-Cal (CFX and Transaction Queue), Quorum PGAS, CSV, SQL (and other ODBC databases)
  • Highly scalable & cost-effective for small, medium and large applications with 8 protocols for connectivity from dozens up to thousands of devices
  • Secure communications from client to device across various network architectures

Key TOP Server EFM Exporter Features Include

  • Wild card support for channel, device, meter, and meter ID that can be used to define the file path and file name of EFM export data.
  • Flexible scheduling (i.e. poll 15 minutes past the hour, every hour, etc.)
  • Support for demand polling single meters via _Poll system tag.
  • Collect daily and hourly history data, as well as alarms and events.
  • Full control of exported file names and locations including network path and wildcard support
  • Organization of exported data by record times, including support for organizing files by contract hour
  • Map data from one meter/device to multiple supported export formats
  • CSV Import/Export of the configuration for mass editing
  • Support for gathering historical data from Enron gas chromatograph devices
  • Configuration support via Configuration API.

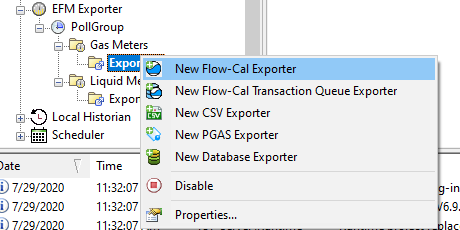

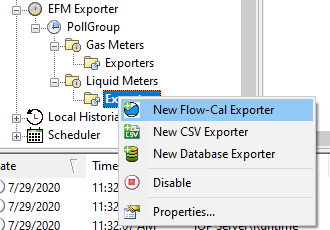

TOP Server EFM Suite Supported Export Type Details

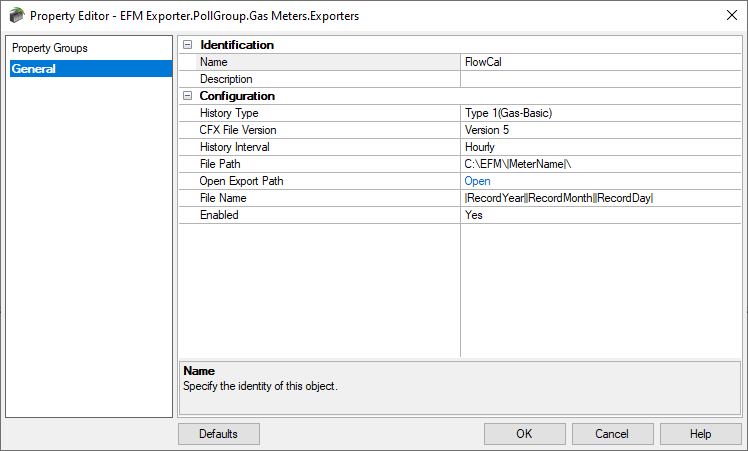

  • Flow-Cal CFX File Exporter Features (Gas & Liquids)
    • Gas EFM data with History Types 1-4 (CFX V5 or V8 & V8.1 Format)
    • Liquid EFM data with History Types 11-13 (CFX v7 or V8 & V8.1 Format)
      • Not supported for Enron Modbus
  • Flow-Cal Transaction Queue
    • Gas EFM data with History Types 1-4

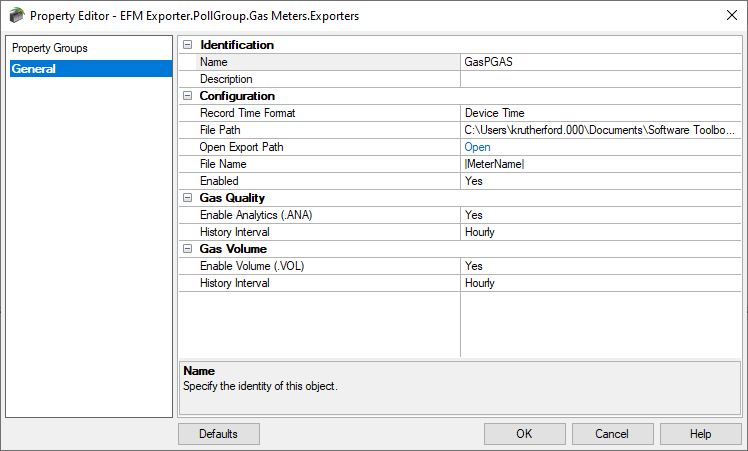

  • Quorum PGAS Exporter Features (Gas Only)
    • Four types of EFM record outputs (Alarms/Events/Analytics/Volume)
    • Enable/Disable Analytics and Volume
  • CSV Exporter Features (Gas & Liquids)
    • Multiple meters per export
    • Output file for each EFM Type (Config/Alarms/Events/History)
  • SQL / ODBC Database Exporter Features (Gas & Liquids)
    • Exports Configuration, Alarms, Events, Daily and Hourly History Data
    • Easy-to-use mappings between EFM attributes and DB table fields

Use the below links to access TOP Server brochures and data sheets, release history, data sheet and license agreement information and more.

Screenshot - OmniServer Blog Resources

Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.

Getting Started with the EFM Suite Blog Post

TOP Server Specific Blog Posts

Overall Software Toolbox Blog Posts

Subscribe to Blog

Access additional TOP Server related information below not covered in other sections:

Get Started Now

The demo is the full product once licensed. Once a client application connects to the  TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
