TOP Server AutomationDirect ECOM Ethernet OPC Driver Details
Reliable Ethernet Connectivity for AutomationDirect Controllers
The AutomationDirect ECOM Ethernet driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and devices supporting the AutomationDirect ECOM protocol via the various Hx-ECOM Ethernet Communications modules (i.e. H0-ECOM, H2-ECOM, H4-ECOM) over UDP Ethernet connections. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
AutomationDirect ECOM Ethernet
This driver is available in the following
TOP Server driver suites:
FEATURES
-
Key Features
-
Standard Features
-
Advanced Features
-
Device Support
-
Protocols / Networks
-
VIDEOS & APP NOTES
-
HELP FILES & RELEASE NOTES
-
TECHNICAL BLOG
-
ADDITIONAL RESOURCES
AutomationDirect ECOM Ethernet Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 100
- Devices per Channel - 1024
- NOTE: Practical channel/device limits will vary depending on your available system resources
- Memory Types Supported: X, Y, C, SP, T, CT, S, V, GX
- All data types supported
- Automatic Tag Database generation for plug and play ease of use
Standard AutomationDirect ECOM Ethernet Features Include
- Data Formats Supported:
- X - Input Point, Y - Output Point, C - Control Relay, SP - Special Relay, T - Timer Status, CT - Counter Status, S - Stages, V - Data Memory, GX - Remote I/O
- All data types supported
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
AutomationDirect ECOM Ethernet Advanced Features Include
- Automatic Tag Database Generation from DirectSoft via the Program or Element Documentation Export feature
- Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
- Specify a Network Interface Card at the channel level (Details)
- User-selectable socket connection termination on device response timeout

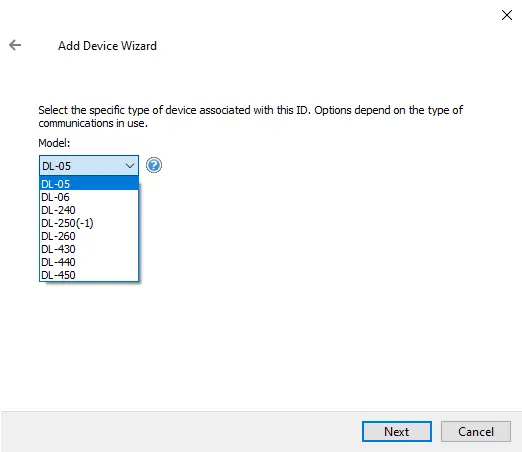

AutomationDirect ECOM Ethernet Supported Devices (Don't See Your Device Listed? Contact Us)
- DL-05
- DL-06
- DL-230
- DL-240
- DL-250
- DL-260
- DL-430
- DL-440
- DL-450
- DL-450 - via an Hx-ECOM module
AutomationDirect ECOM Ethernet Supported Protocols / Networks
- Protocols:
- AutomationDirect ECOM
- Networks:
- UDP Ethernet
Videos / Guides / App Notes to Help You Get Started
To insure you get the most from your investment in TOP Server®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
