Set up a connection link between Excel and any OPC Server!
The Excel Connector allows you to set up a communication link between Excel and any OPC server. It is possible to subscribe to and view real-time data, and also write the data back. No programming, macros or add-ins are necessary. With just drag-and-drop or copy-and-paste, you can create Microsoft Excel sheets with live, animated OPC data. Click for Pricing & Purchasing Details
Click to Download Excel Connector
Features
The Excel Connector supports connections to OPC servers with following specifications:
- OPC Data Access
- OPC XML-DA
- OPC Unified Architecture (Data Access)
The Excel Connector is a product from the OPC Studio family, and technically it is contained in the same installation package. You can also easily combine the Excel Connector's easiness of development with all other options and features provided by OPC Data Client, such as to add VBA code to handle more complicated tasks.
For more information Click Here to Access the Excel Connector Online User's Guide
Getting Started

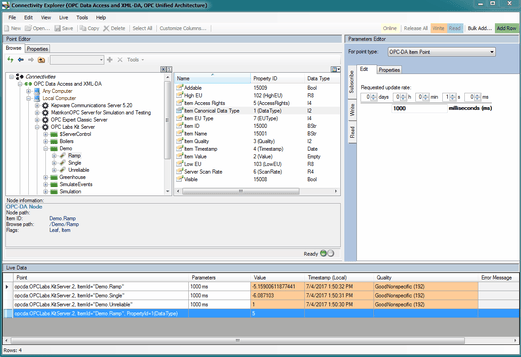

It's easy to get started. Essentially, you just double-click the desired OPC data in the Connectivity Explorer application, and then drag the changing grid cell to your Excel spreadsheet.
For step-by-step instructions, see Getting Started under Excel in the User's Guide.
Features of Connectivity Explorer include:
- Selected data can be transferred to Excel, where it continues to stay subscribed, giving cell values that are dynamically updated with live OPC data.
- Individual points, or a selected set of points, can be read or written to.
- Point parameters can be edited before a subscription, read or write is made.
- Multiple points can be easily subscribed to at once, using the "Bulk Add" command.
- The live view can be turned online/offline with a single push of a button.
- Single cell, or any range of cells can be copied to clipboard and pasted to other programs.
- The currently displayed list of points can be saved to an XML file, or retrieved from a file.
- Various connectivity options can be configured, and the configuration can be in turn used when the same data is accessed by Excel.

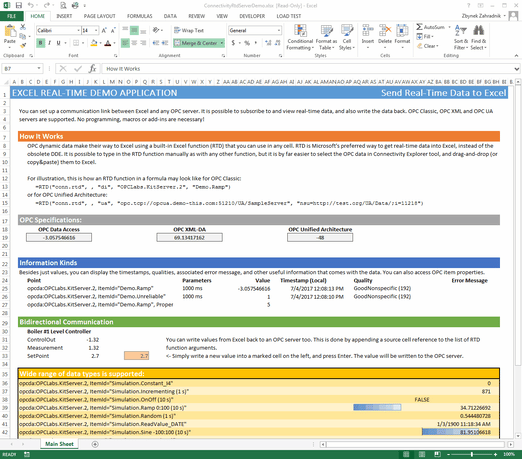

Demo OPC Excel Spreadsheet
Excel Connector comes with a demo Excel spreadsheet that shows various features of the product.
You can use the demo spreadsheet to learn how to get most of the product.
On the spreadsheet, you will find:
- How It Works: Explains RTD functions and their syntax.

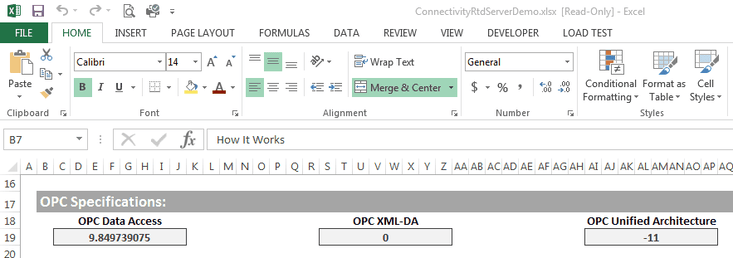

- OPC Specifications: Demonstrates data from various OPC specifications shown in Excel.
- Information Kinds: Values, timestamps, qualities, associated error messages, etc.
- Bidirectional Communication: How to easily write to OPC servers from Excel.
- Data Types: Wide range is supported, and the sheet shows examples of that.
