TOP Server Fisher ROC Serial OPC Driver Details

Fisher ROC Serial Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 1024
  • Devices per Channel - 255
• Support for Gas (Electronic Flow Measurement) EFM retrieval
• Read, Write, and Auto Tag Generation of User Program Data (User Defined Points)
• Supports OpCodes 10 and 11 for reading and writing to user tables

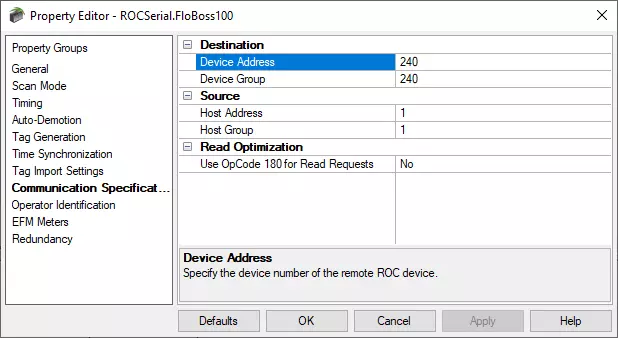

• Configurable OpCode for Read Requests
  • OpCode 167 (Default) for reading entire point type logical addresses in one transaction
  • OpCode 180 for use if only a few parameters from each point type and logical address are required
• Supports Advanced Statistics Tags, including _CommFailures, _ErrorResponses, and more
• Supports the VCone meter type and calculation method
• Optimized for extreme conditions (noisy communication channels and low-bandwidth)

Standard Fisher ROC Serial Features Include

• Supports Ethernet Encapsulation via Ethernet/Serial convertors, Ethernet Device or Terminal servers

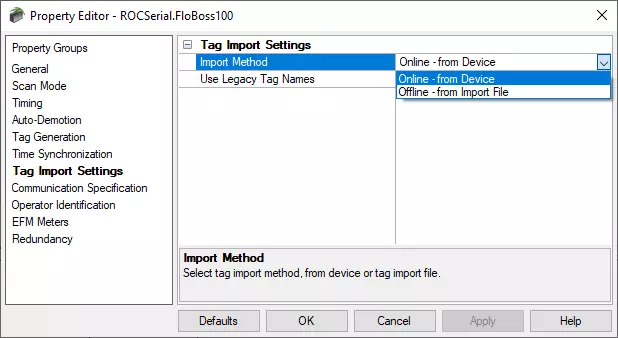

• Supports Automatic Tag Generation

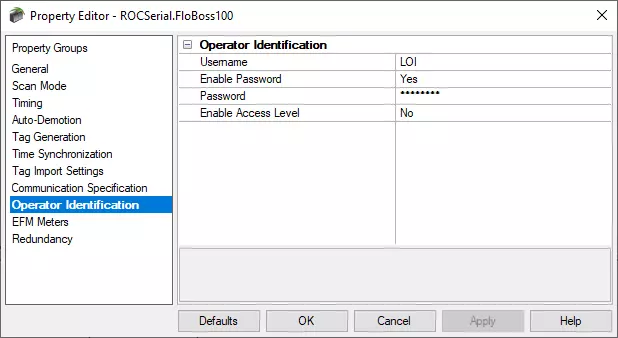

• Operator Identification (including configurable Access Level)
• Time Synchronization
• Modem Support
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability
  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

Fisher ROC Serial EFM Suite Only Features Include

• EFM Support using the EFM Exporter Plug-In (EFM Suite Only):
  • FlowCal CFX (V5)
  • FlowCal Transaction Queue
  • PGAS
  • CSV
  • SQL / ODBC Databases
• Support for hourly history, daily history, alarms, and events
• Enable/Disable Clearing Cache on Next Upload
• EFM Configuration and Mapping (EFM History / EFM Alarm / EFM Event)
• EFM Pointer File caching to disk ( eliminates repoll when server is restarted
• Pointer Rollback capability for retrieving lost EFM data from a device

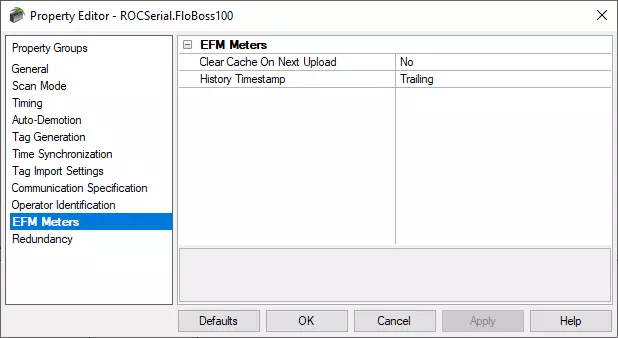

• Time synchronization on EFM poll, user-specified interval, or time of day
• FloBoss 107 Only - Configurable for trailing or leading history timestamp
• NOTE: The meter order in the EFM meter list in the driver MUST match the meter order in ROCLink800 configuration software.

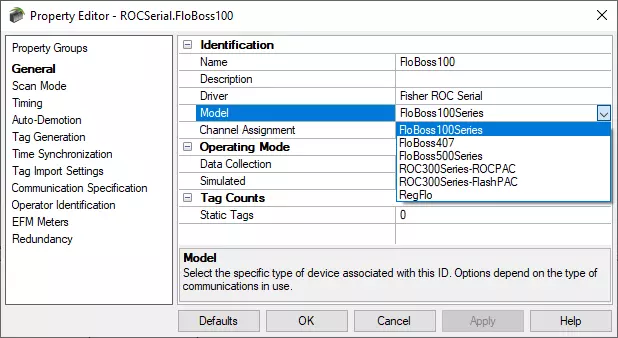

Fisher ROC Serial Supported Devices

• FloBoss 100 Series
• FloBoss 407
• FloBoss 500 Series
• RegFlo
• ROC 300 Series - FlashPAC
• ROC 300 Series - ROCPAC

For full details on models and networks supported, please consult the driver help file.

Fisher ROC Serial Supported Protocols / Networks

• Protocols:
  • Remote Operation Controllers (ROC)
• Networks:
  • Serial RS-232/422/485
  • Ethernet Encapsulation

Videos / Guides / App Notes to Help You Get Started

To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.

• TOP Server Getting Started Video for Fisher ROC
• TOP Server How-To Videos / Tutorials
• TOP Server How-To Application Notes
• TOP Server Quick Start Guide
• TOP Server Troubleshooting Guide

Driver Help Files / Release Notes

Use the below links to access TOP Server release history and driver help documentation.

• Click for Current/Past Release Notes
• Fisher ROC Serial Help File

Access use cases, how-tos and more

Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.

TOP Server Specific Blog Posts

Overall Software Toolbox Blog Posts

Subscribe to Blog

Additional Useful Resources

Access additional TOP Server related information below not covered in other sections:

• TOP Server Operating System Support Information
• Emerson ROC Protocol Specification
