TOP Server ABB Totalflow OPC Server
Comprehensive connectivity for ABB Totalflow devices in Oil & Gas applications

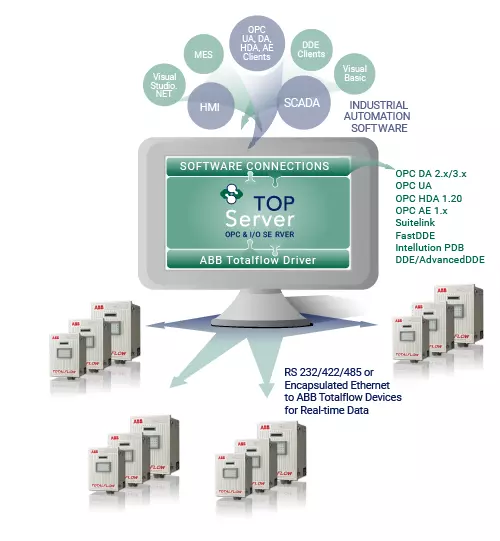

The TOP Server ABB Totalflow driver provides connectivity to ABB Totalflow devices using the native Totalflow DB1 and DB2 serial protocols including use with Ethernet/Serial converters or radios. Totalflows are common in upstream oil & gas applications for process control and hydrocarbon measurement at the wellhead, as well as in midstream oil & gas facilities applications. The TOP Server ABB Totalflow driver provides real-time data access for HMI, SCADA, Historian, MES, ERP, and countless custom applications. With TOP Server's extensive driver list for PLCs and other control systems, you can integrate facilities into the same platform as your measurement and monitoring system.
Also, when part of the TOP Server EFM Suite, the ABB Totalflow driver also collects historical Electronic Flow Measurement (EFM) gas and liquid data working in conjunction with the EFM Exporter plug-in with supported export formats including Flow-Cal, PGAS and more. Such historical data is commonly used for production optimization and regulatory compliance.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suites. When purchased or used as a real-time data driver, there are no extra per-device licensing fees for real-time data collection.
- TOP Server Oil & Gas Suite (Real-time Only)
- TOP Server EFM (Electronic Flow Measurement) Suite (EFM and Real-time)
- No licensing limits on devices for real-time data collection
- Historical EFM data collection licensing based off # of devices using EFM export
TOP Server ABB Totalflow Driver
$5201
$
Part # 41233229-N
Delivery Methods: CD or Online
Availability: 0 to 1 Business Days
Perpetual License to use the server and drivers in this suite on a single computer with no artificial limits on number of devices, tags, or connected client applications. Includes 1 yr support & maintenance agreement.
FEATURES & RESOURCES
-
Key Features
-
Standard Features
-
EFM Suite Only Features
-
Device Support
-
Protocols / Networks
-
Available Languages
-
Videos & App Notes
-
Help Files & Release Notes
-
Technical Blog
-
Additional Resources
ABB Totalflow Serial Key Features Include
- Maximum Number of Channels & Devices:
- Channels - 1024
- Devices per Channel - 256
- COM Port Range - 1 to 999
- NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture

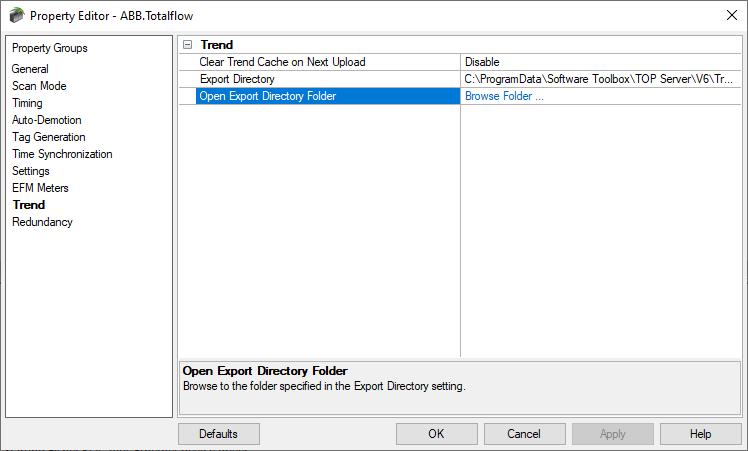

- Trend Logs upload support
- Supports DB2 Protocol EFM Collection by Day and Sequence Number
- Supports user-defined block sizes that are configurable at runtime
- Supports communications serialization (multiple protocols over same communications link)
- Security code support
- Configurable Inter-Device Delay
- Configurable Inter-Request Delay
- Configurable Link Time
Standard ABB Totalflow Serial Features Include
- Supports scan mode for controlling client poll rates
- Ethernet Encapsulation support
- Dial-Up Modem Support
- Serial - Adjustable RTS Flow timing for radios
- TOP Server Built-In Features:
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here.
ABB Totalflow Serial EFM Suite Only Features Include
- EFM Support using the EFM Exporter Plug-In (EFM Suite Only):
- FlowCal CFX (V5 & V8 Gas, V7 & V8 Liquid)
- FlowCal Transaction Queue
- PGAS
- CSV
- SQL / ODBC Databases
- Support for hourly history, daily history, batch, liquid product, alarms, and events
- Support for a single Totalflow device with both liquid and gas meters
- Ability to specify up to 70 EFM meters per device for DB2 protocol
- Enable/Disable Clearing Cache on Next Upload
- EFM Configuration and Mapping (EFM History / EFM Alarm / EFM Event)
- EFM Pointer File caching to disk ( eliminates repoll when server is restarted
- Pointer Rollback capability for retrieving lost EFM data from a device

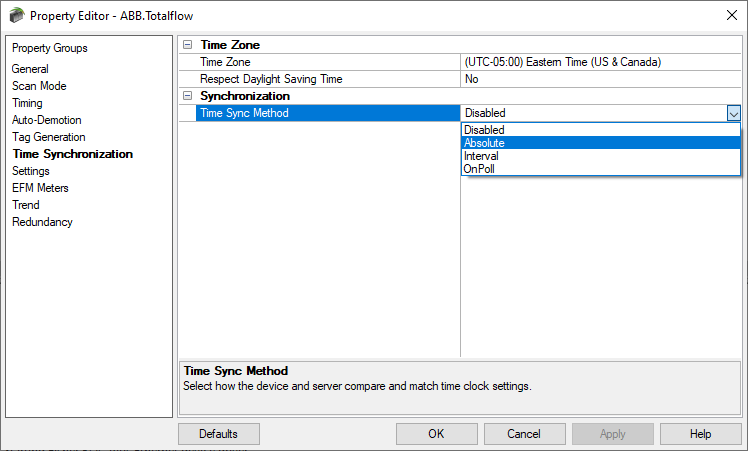

- Time synchronization on EFM poll, user-specified interval, or time of day
Supported Devices Include (Don't See Your Device Listed? Contact Us)
- 6000 Series microFLO
- 6000 Series FCU
- XSeries G5 (XFCG5)
- XSeries G4 (XFCG4)
- XSeries G3 (XFCG3)
- RMC-100 Remote Modular Controller
- G2 FCUs
- G1 FCUs
Supported Protocols / Networks
- Protocols:
- ABB DB1 Serial
- ABB DB2 Serial
- Networks:
- Serial RS-232 / 422 / 485
- Ethernet Encapsulation
TOP Server How-To Videos and Application Notes
To insure you get the most from your investment in TOP Server™, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.
Driver Help Files / Release Notes
Use the below links to access TOP Server release history and driver help documentation.
Access use cases, how-tos and more
Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.
TOP Server Specific Blog Posts
Additional Useful Resources
Access additional TOP Server related information below not covered in other sections:
Get Started Now
The demo is the full product once licensed. Once a client application connects to the TOP Server, the TOP Server runtime will operate for 2 hours at a time. At the end of the 2 hour demo period, the demo timer must be reset by restarting the TOP Server runtime service.
