TOP Server WITS Level 0 Active Driver Details

WITS Level 0 Active Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 256
  • Devices per Channel - 1
  • COM Port Range - 1 to 256
• Supports up to 256 WITS Level 0 Passive devices
• Single device per channel (peer-to-peer communications)
• Support for all WITS Pre-Defined Code Numbers
• Support for WITS Undefined Code Numbers
• Data Types Support - Short, Long, DWord, Float, String
• Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
• Automatic Tag Database generation for plug and play ease of use

Standard WITS Level 0 Active Features Include

• Support for all WITS Pre-Defined Code Numbers
• Support for WITS Undefined Code Numbers
• Data Types Support - Short, Long, DWord, Float, String
• WITS Code Number based address syntax
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability
  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

WITS Level 0 Active Driver Advanced Features Include

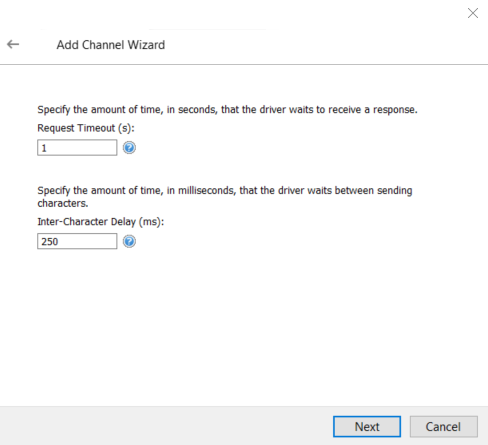

• Configurable Inter-Character Timeout

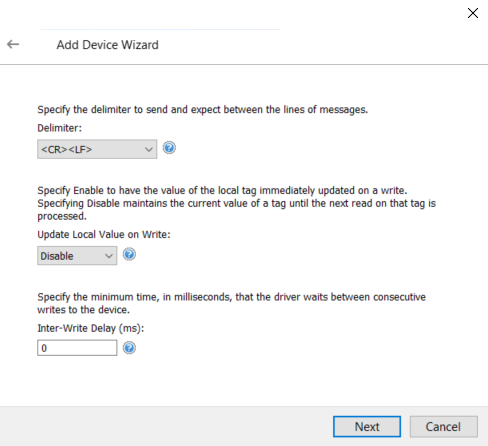

• Configurable Message Delimiter
• Configurable delay period between write operations
• Supports Automatic Tag Generation
• Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers

WITS Level 0 Active Supported Devices (Don't See Your Device Listed? Contact Us)

• Anadrill
• APS Technology SureShot
• Baker Hughes
• BlackStar Electromagnetic Tools
• Canrig Rigwatch
• Departure Energy Services MWD
• Dynamic Drilling Systems
• EPOCH Rigwatch
• Erdos Miller
• Extreme Engineering
• Forerunner Technology Drilling Sensors
• Geospect Instruments
• GeoSteering RIGCOMMS
• iBall Instruments Bloodhound
• Mudlogging Systems MControl
• NOV Amphion Rig Tool Controllers
• NOV RigSense
• Pason - EDR
• Schlumberger MWD and PowerDrive RSS (via MAXWELL software)
• TookeDAQ
• Weatherford

WITS Level 0 Active Supported Protocols / Networks

• Protocols:
  • WITS Level 0 Active (solicited)
• Networks:

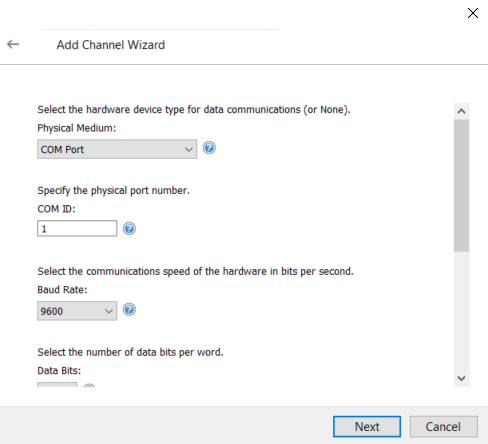

  • Serial RS-232
  • Serial RS-422
  • Serial RS-485
  • Ethernet Encapsulated Serial - for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware from a variety of suppliers.

Videos / Guides / App Notes to Help You Get Started

To insure you get the most from your investment in TOP Server^®, we provide a variety of application notes/guides and how-to videos, since we know that sometimes it helps to see someone showing you how to do things.

• TOP Server WITS Level 0 Active Driver Quick Start Video
• TOP Server How-To Videos / Tutorials
• TOP Server How-To Application Notes
• TOP Server Quick Start Guide
• TOP Server Troubleshooting Guide

Driver Help Files / Release Notes

Use the below links to access TOP Server release history and driver help documentation.

• Click for Current/Past Release Notes
• WITS Level 0 Active Help File

Access use cases, how-tos and more

Real-world use cases, step-by-step how-to's and video tutorials - our blog contains useful resources and information to help you get connected.

TOP Server Specific Blog Posts

Overall Software Toolbox Blog Posts

Subscribe to Blog

Additional Useful Resources

Access additional TOP Server related information below not covered in other sections:

• TOP Server Operating System Support Information
