TOP Server Siemens S7 Plus Ethernet OPC Driver Details

Siemens S7 Plus Ethernet Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 256
  • Devices per Channel - 16
  • NOTE: Practical channel/device limits will vary depending on your available system resources

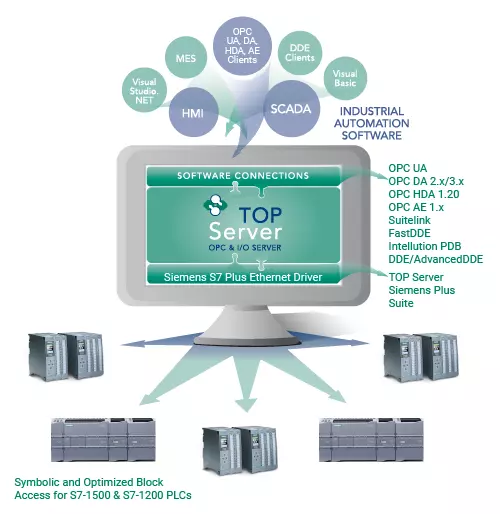

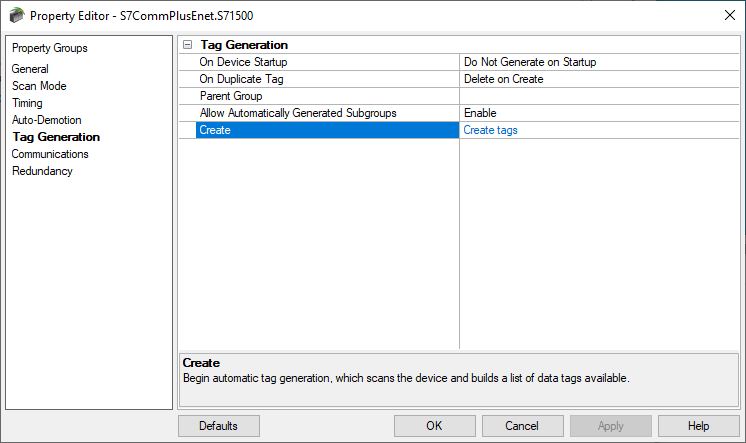

• Online Automatic Tag Generation from TIA Portal for S7-1500 and S7-1200 from version 16 through 18 (No TIA Portal Exporter required)
• Supports multiple connections per device
• Supports Data Block Access and Bit-Level Access
• InstanceDB (Data Block) Symbols supported (how to enable)

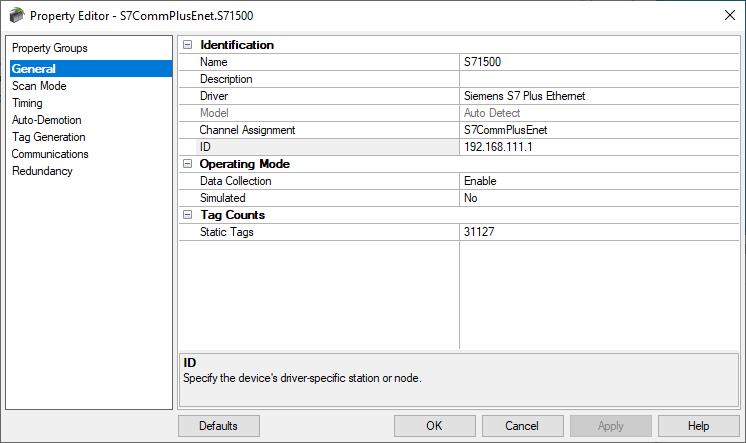

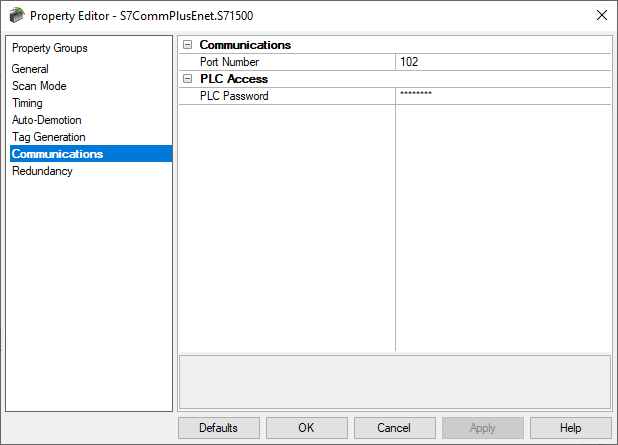

• Access to password protected controllers
• Access to trusted certificate secured PLCs configured in Secure PG/PC/HMI mode using TIA Portal V17 or Higher

Standard Siemens S7 Plus Ethernet Features Include

• Direct Ethernet connections to S7-1200 and S7-1500 CPUs via built-in Ethernet ports
• Configurable connection port number
• Siemens S7 Data Types Supported (Read/Write): Bool, Byte, Char, INT, DINT, LINT, Word, DWord, LWord, REAL, LREAL, SINT, UDINT, UINT, USINT, ULINT, STRING, Date and Time (DT) - read-only, Time of Day (TOD), Time, S5Time, Date, OB_TOD (See Data Type Descriptions in Siemens S7 Plus Ethernet Help File)
  • Starting with V6.12, TIME type is accessible as a Long (DINT) data type
• Read/Write access to members of complex types: Array, Structure, UDT instance and DTL
• Array Read/Write/Auto-Tag Generation support for the following Siemens types: Bool, Byte, USINT, SINT, Char, UINT, Word, DWord, UDINT, DINT, Real, and String
• Uses standard Ethernet Network Interface Card for TCP/IP Communications
• Specify a Network Interface Card at the channel level
• Optimized communications allow each device to have a separate thread/channel of communications when under separate channels

Siemens S7 Plus Ethernet Driver Advanced Features Include

• Driver auto-detects the model (S7-1500 or S7-1200)
• The following controller information is logged to the TOP Server event log on connect:

  • IP Address
  • Controller Series
  • CPU Type
  • Firmware Version
  • Controller Component ID (MLFB)
• Online Automatic Tag Generation directly from S7-1500 and S7-1200 devices from version 16 through 18 (No TIA Portal Exporter required)
• Redundancy switching via Media Level Redundancy plug-in
• Supports access to password protected controllers and certificate secured controllers in Secure PG/PC/HMI mode via TLS (TIA Portal V17 and higher)
• Configurable setting for loading Function Block and Instance Data Block symbols (disabled by default - how to enable)
• Configurable ability to disable automatic symbol reload upon invalid tag
• Client array tags limited to 10 for best performance

Siemens S7 Plus Ethernet Supported Devices

• S7-1500 Family (via built-in Ethernet module) with Symbolic Addressing including S7-15xxH/R devices
• S7-1200 Family (via built-in Ethernet module) with Symbolic Addressing
• PLCSIM Advanced - tested by our support team  - connection setup is the same as a regular PLC, and symbolic addressing

Firmware Support as of V6.14 includes:

• S7-1200 FW 4.6, 4.5, 4.4, 4.2.1, SPS 4.2
• S7-1500: FW 3.0.x, 2.9.x, 2.8.1, 2.6, 2.5 SPS 2.0, <1.7

For full details on models and networks supported visit the Siemens Suite Supported Devices page and consult the driver help file.

Siemens S7 Plus Ethernet Supported Protocols / Networks

• Siemens S7 Comm Plus
• TCP/IP Ethernet
