TOP Server Allen-Bradley Bulletin 1609 UPS OPC Driver

Allen-Bradley Bulletin 1609 UPS Key Features Include

• Maximum Number of Channels & Devices:
  • Channels - 100
  • Devices per Channel - 100
  • NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
• Support for Private and Public Communities
• Support for SNMP Trap Messages
• Supports iso:identified-organization namespace addressing
• Supports Primitive Single Instance Leaf Object IDs and Columnar Leaf Object IDs
• Supports TCP/IP or UDP Ethernet Protocol
• Automatic Tag Database generation for plug and play ease of use

Standard Allen-Bradley Bulletin 1609 UPS Features Include

• Supports iso:identified-organization namespace addressing
• All addresses begin with 1.3
• Supports Primitive Single Instance Leaf Object IDs
• Supports Columnar Leaf Object IDs
• Default Data Type: DWORD
• Configurable Supported Data Types: WORD and STRING
• TOP Server Built-In Features:
  • Multi-threaded architecture for high scalability
  • Runtime changes via wizard-based configuration interface with intuitive Properties Editor
  • Secure User Management
  • Built-in Device/Network Redundancy
  • Auto-Demotion (Slow Polling)
  • Extensive communication and server diagnostics (OPC / Communications / Event Log)
  • For all TOP Server built-in features, click here.

Allen-Bradley Bulletin 1609 UPS Advanced Features Include

• Nonexistent Tag Error Messaging

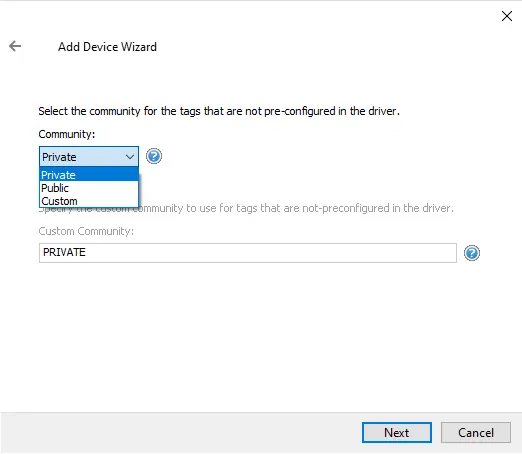

• Support for Private and Public Communities
• Support for SNMP Trap Messages

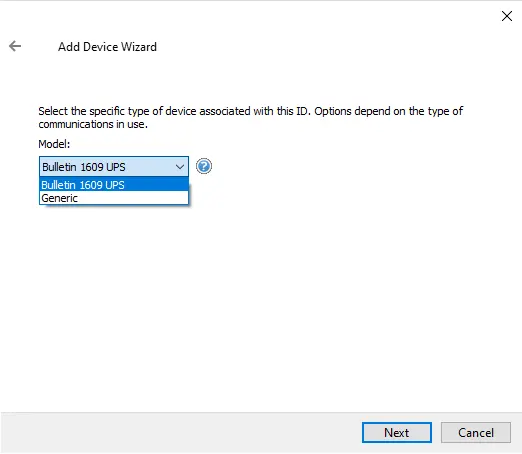

• Automatic Tag Database Generation when using the Bulletin 1609 UPS device model
• Supports TCP/IP or UDP Ethernet Protocol

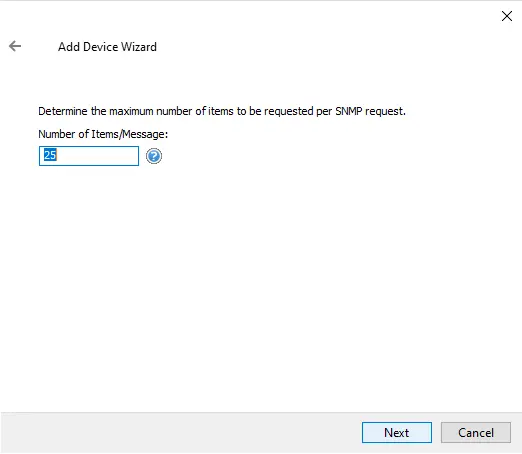

• User configurable request size to optimize communication with device
• Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
• User-selectable socket connection termination on device response timeout
• Specify a Network Interface Card at the channel level (Details)

Supported Devices Include (Don't See Your Device Listed? Contact Us)

• Allen-Bradley 1609-U500N Series A
• Generic (Other devices supporting SNMP), including:

  • Alarm Management RTUs
  • Device Servers
  • Environment Monitoring Equipment for Server Rooms
  • Managed Industrial Ethernet Switches
  • Printers
  • Routers
  • Uninterruptible Power Supplies (UPS)
  • Unix-based Servers
  • Windows-based PCs and Servers

Supported Protocols / Networks

• Protocols:
  • Simple Network Management Protocol (SNMP)
• Networks:
  • TCP/IP Ethernet
  • UDP Ethernet

Available Languages

• English

Click to Learn More
